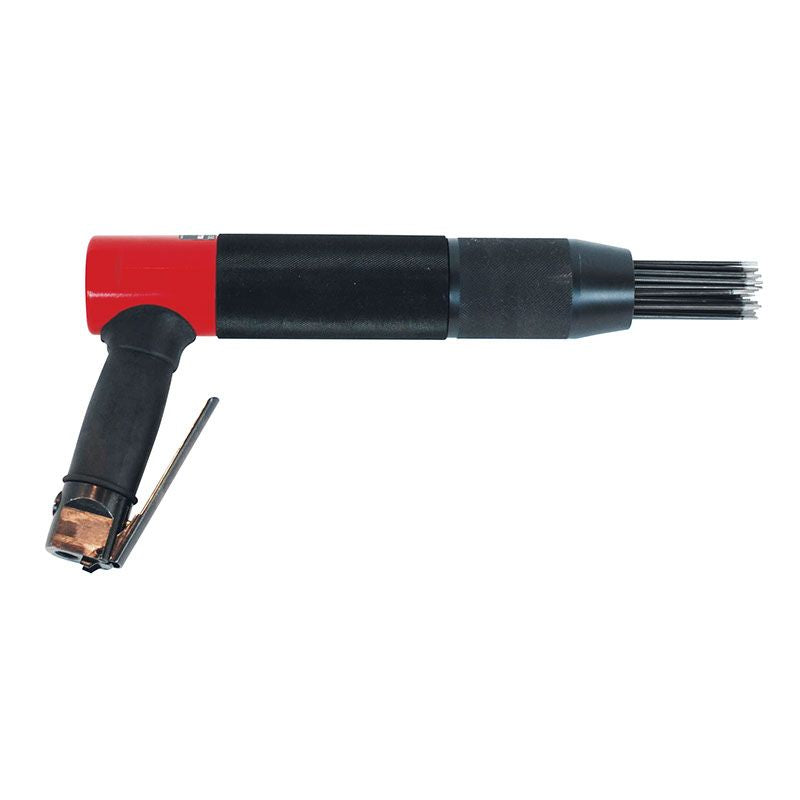

Chicago Pneumatic B19MV Vibration-damped Needle Scaler โ 6151740540
1/8" x28 low vibration pneumatic needle scaler
The B19MV is a robust and powerful neeld scalers. It is designed for very intensive use, but manufactured with a cushion grip for better operator comfort. It is the needle scaler you need for long hours of operations thanks to its vibration damped. If needed, it can easily be converted into a powerful needle scaler.
Features
- Low vibrations for smooth operations
- Perfect tools for long hours of operations
- Heavy duty needle scaler for very intensive use
- Adjustable front tube grants extended needle life
- Cushion grip for better operator comfort
Specifications
| Air consumption at load | 4.4 cfm |
| Air inlet thread size | 1/4 in |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Blow per minute | 3000 |
| Energy | 7 J |
| Main Material type | Steel |
| Needle capacity | 28x1/8 (3) |
| Starting system | Lever |
| Bore diameter | 1.35 in |
| Length (L) | 14.76 in |
| Stroke | 0.79 in |
| Weight | 7.74 lb |
| Sound Power | 99 dB(A) |
| Sound Pressure | 88 dB(A) |
| Vibration | 15.1 ft/sยฒ |
| CP part # | 6151740540 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
