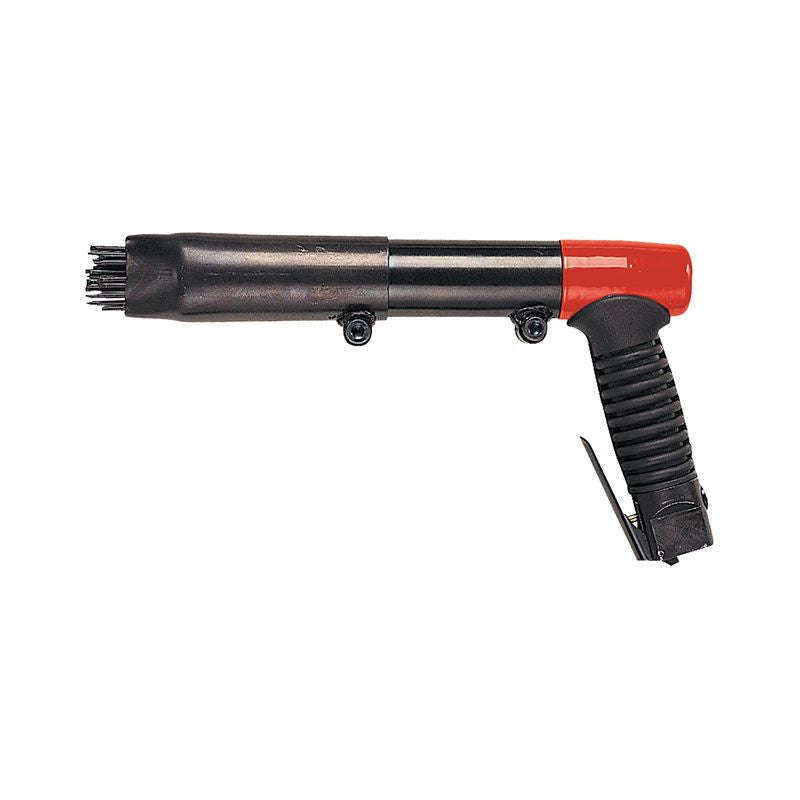

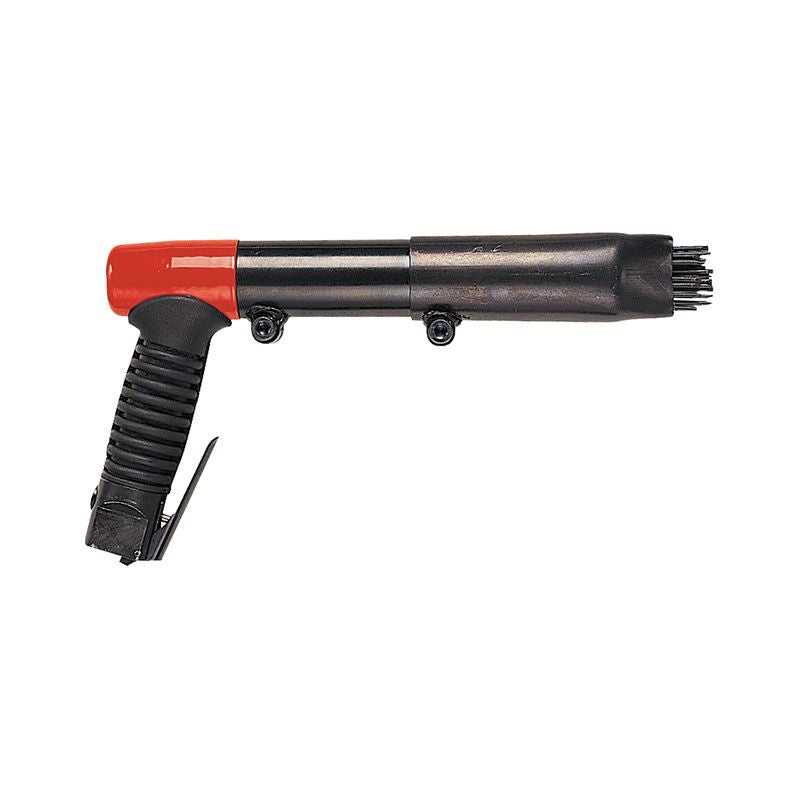

Chicago Pneumatic B19M Needle Scaler - Pistol โ 6151740320
1/8" x28 pneumatic needle scaler
The B19M is a robust and powerful needle scaler. it is designed for very intensive use, but manufactured with a cushion grip for better operator comfort. If needed, it can easily be converted into a powerful chipping hammer.
Features
- Robust construction and power for very intensive use
- Adjustable barrel extends needle life
- Cushion grip for better operator comfort
- Heavy duty needle scaler
- Easy to change to chipping hammer
Specifications
| Air consumption at load | 8.1 cfm |
| Air inlet thread size | 1/4 in |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Blow per minute | 2200 |
| Energy | 9.5 J |
| Main Material type | Steel |
| Needle capacity | 28x1/8 (3) |
| Bore diameter | 1.13 in |
| Length | 13.46 in |
| Stroke | 1.54 in |
| Weight | 8.16 lb |
| Sound Power | 112 dB(A) |
| Sound Pressure | 91 dB(A) |
| Vibration | 55.4 ft/sยฒ |
| CP part # | 6151740320 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
