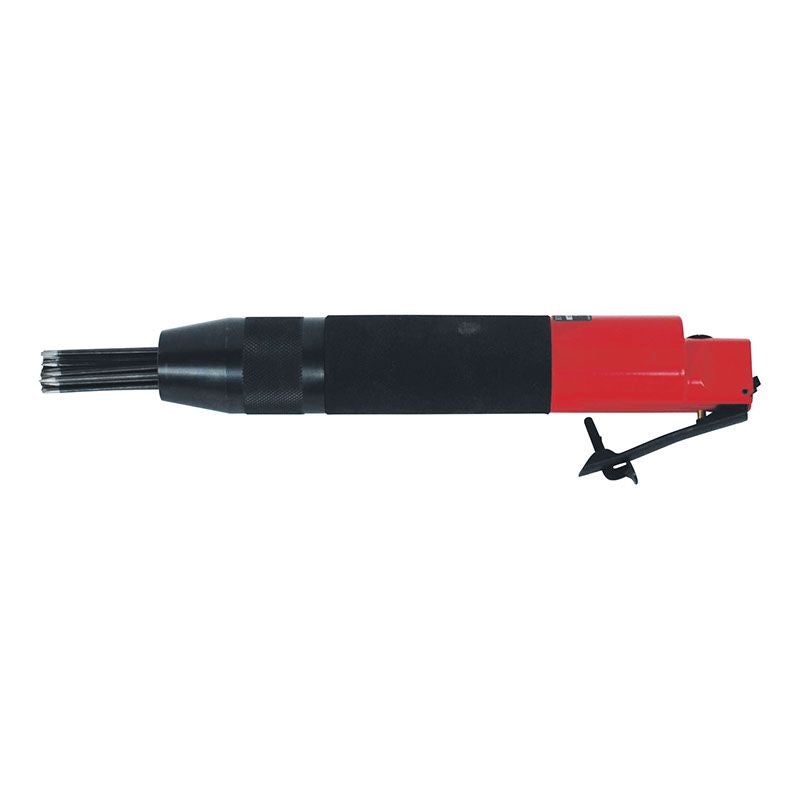

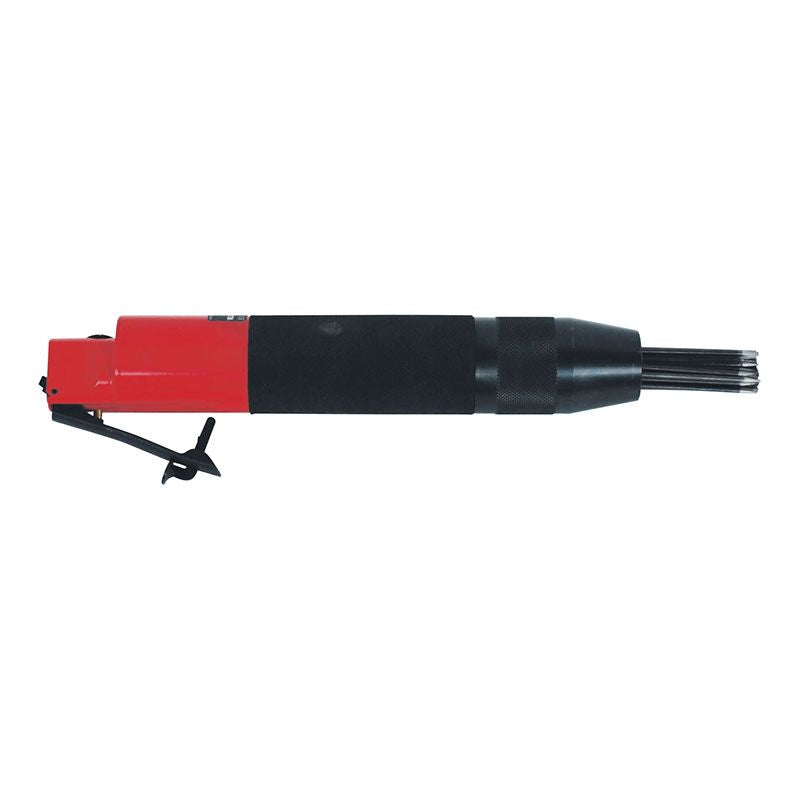

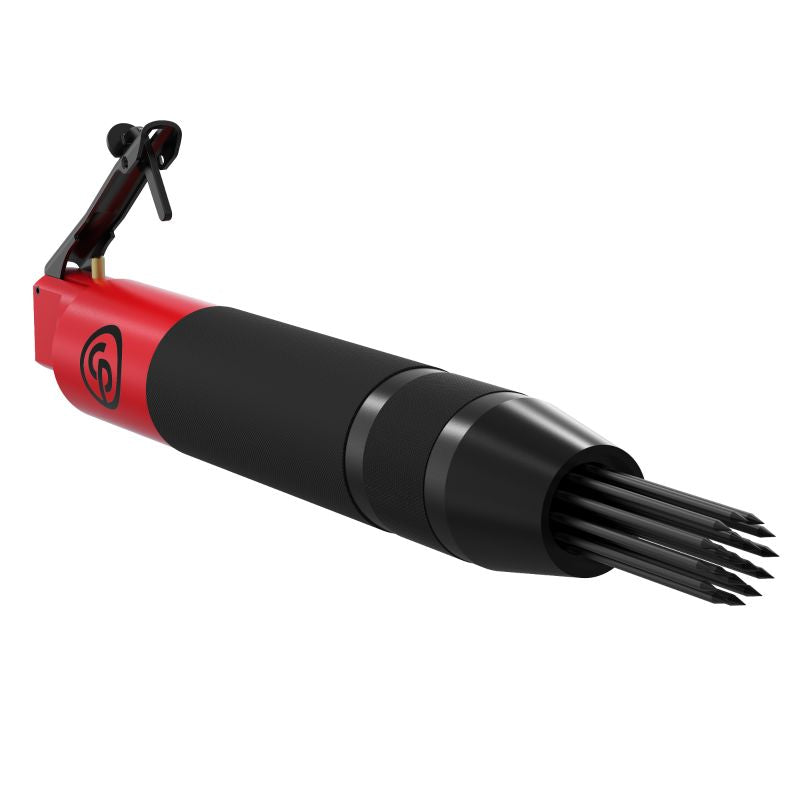

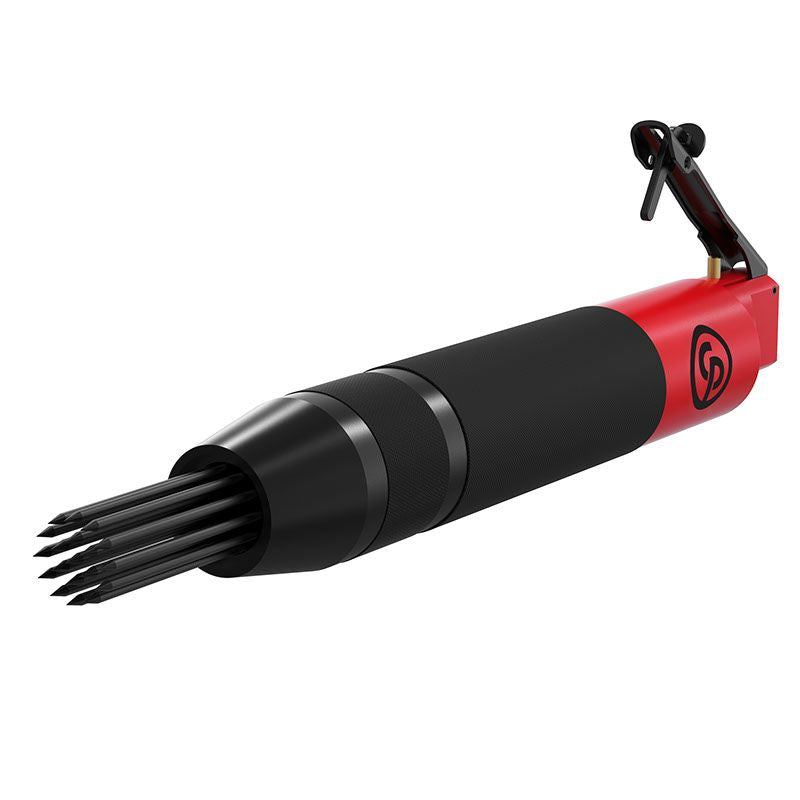

Chicago Pneumatic B16MV Vibration-damped Needle Scaler โ 6151740500
1/8" x19 low vibration pneumatic needle scaler
The B16MV needle scalers is a great choice for your industrial maintenance applications thanks to its very good power/weight ratio. It can be used with one hand and is ideal for long hours operation because of its low vibration.
Features
- Low vibrations for smooth operations
- Perfect tool for long hours of operations
- One hand operation
- Adjustable front tube grants extended needle life
Specifications
| Air consumption at load | 5.1 cfm |
| Air inlet thread size | 1/4 in |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Blow per minute | 2400 |
| Energy | 1.8 J |
| Needle capacity | 19x1/8 (3) |
| Starting system | Lever |
| Bore diameter | 0.93 in |
| Length | 14.17 in |
| Stroke | 0.43 in |
| Weight | 5.18 lb |
| Sound Power | 97 dB(A) |
| Sound Pressure | 86 dB(A) |
| Vibration | 15.7 ft/sยฒ |
| CP part # | 6151740500 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
