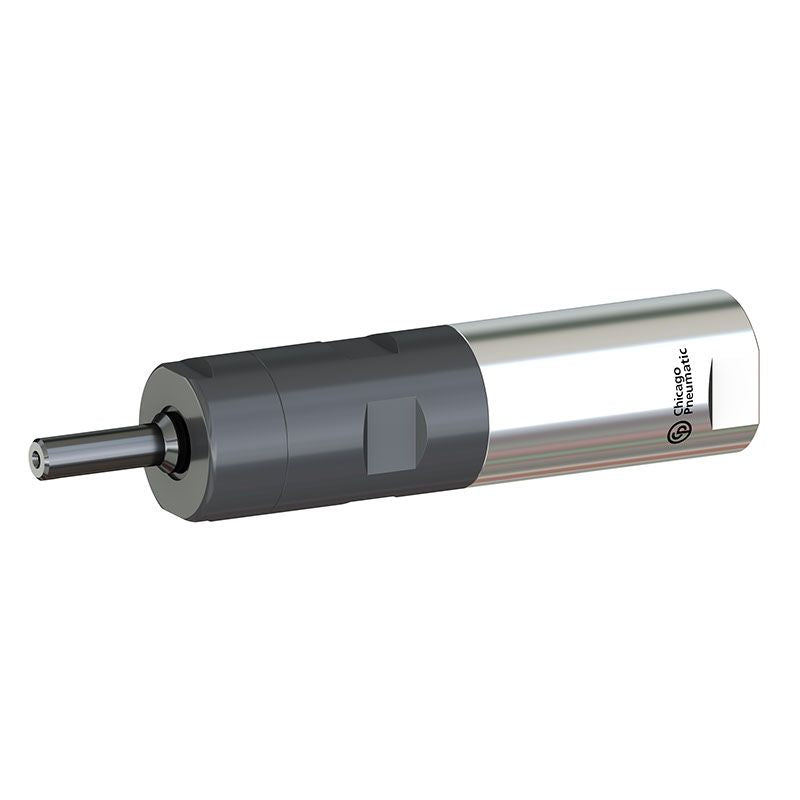

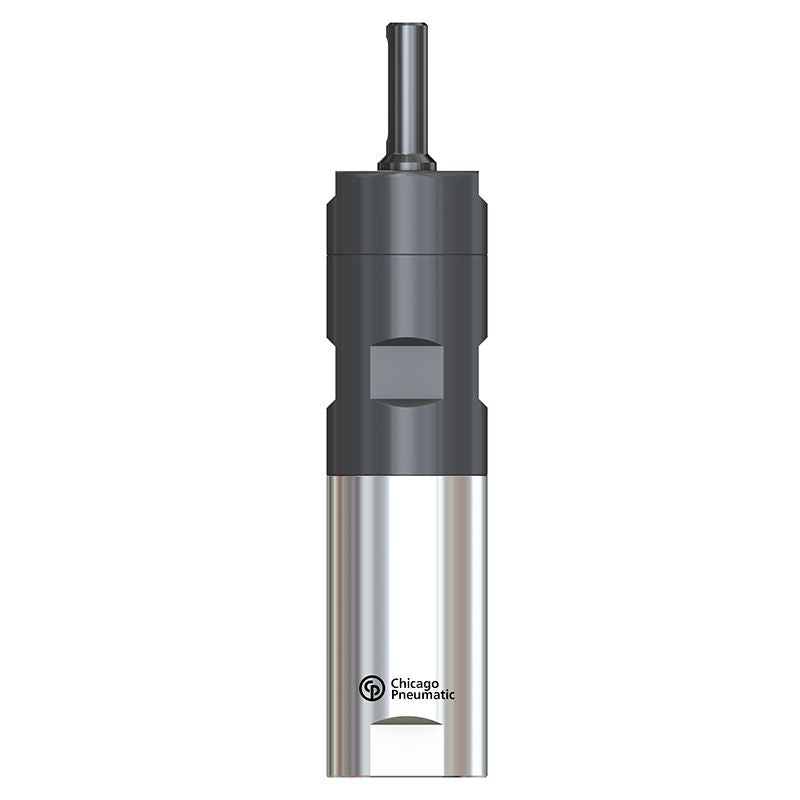

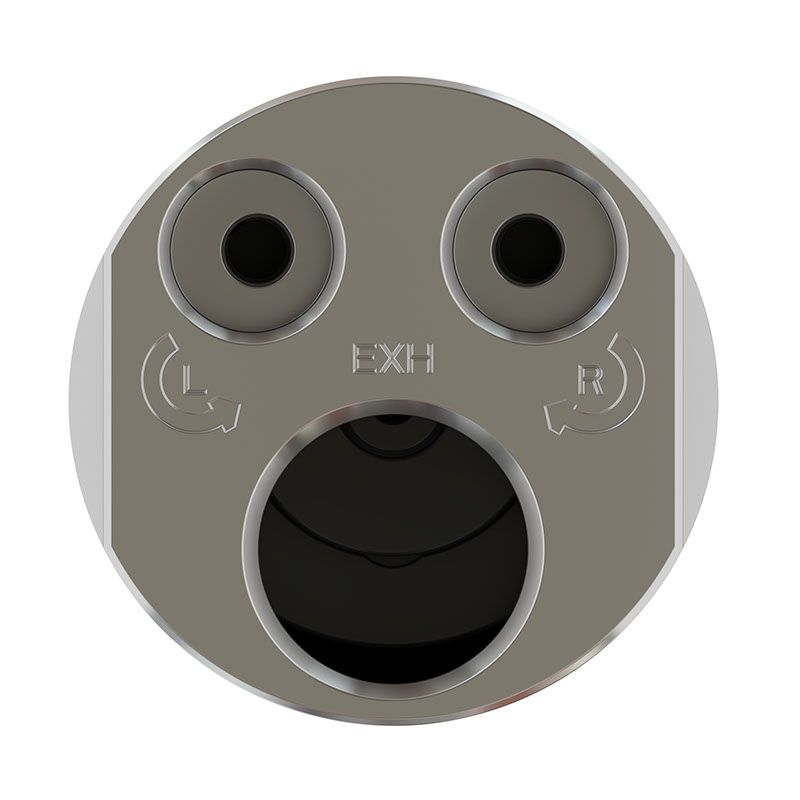

Chicago Pneumatic Air Motor MR8401-1100-K ATEX – 2051481544

Description

0.83 hp Reversible vane air motor, 110 rpm free speed, ATEX certified

The standard pneumatic vane motors MR8401-1100-K-ATEX is compact in design, light in weight, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment.

Features

• Low friction and lubrication-free design of vanes for ruggedness.
• Sustain stall torque loading indefinitely.
• Short and compact planetary gear system for versatile solutions
• Long lasting efficiency with low air consumption design
• Strong starting torque for mobility during operation

Specifications

Max output power	0.83 hp
Max free speed range	110 rpm
Air consumption at load	29 cfm
Max dynamic air working pressure	90 psi
Minimum starting torque	10 ft.lbf
Stall torque	14.8 ft.lbf
Torque at max power	7.4 ft.lbf
Air inlet thread size	3/8
Air inlet thread type	BSP
Output Spindle size	0.47 in
Weight	2.87 lb
Index of protection (IP code)	IP66
Spindle type	Keyed shaft
Rotation drive	Reversible
Main Material type	Steel
CP part #	2051481544

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
