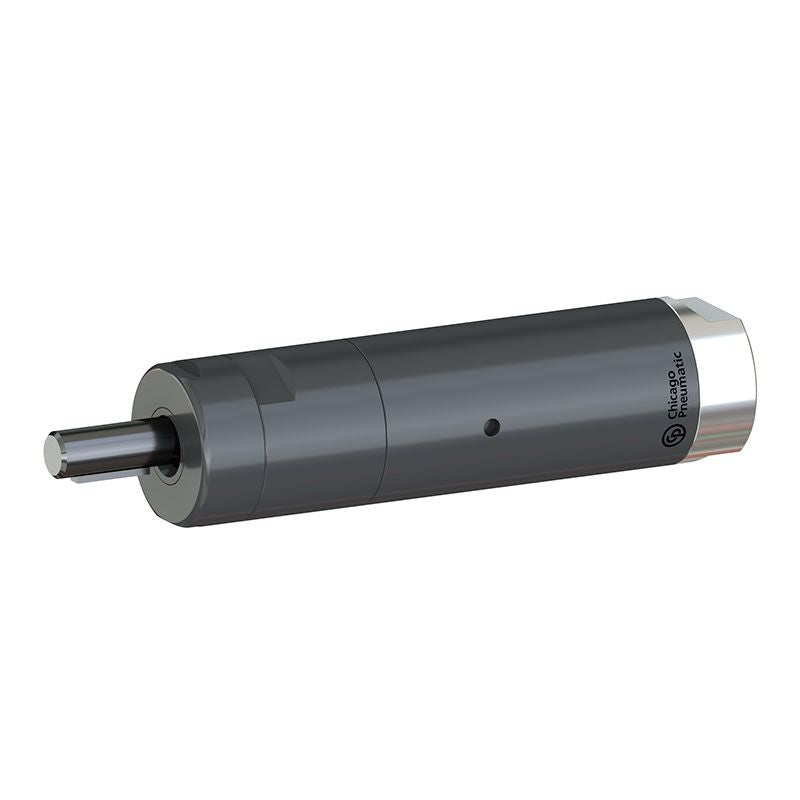

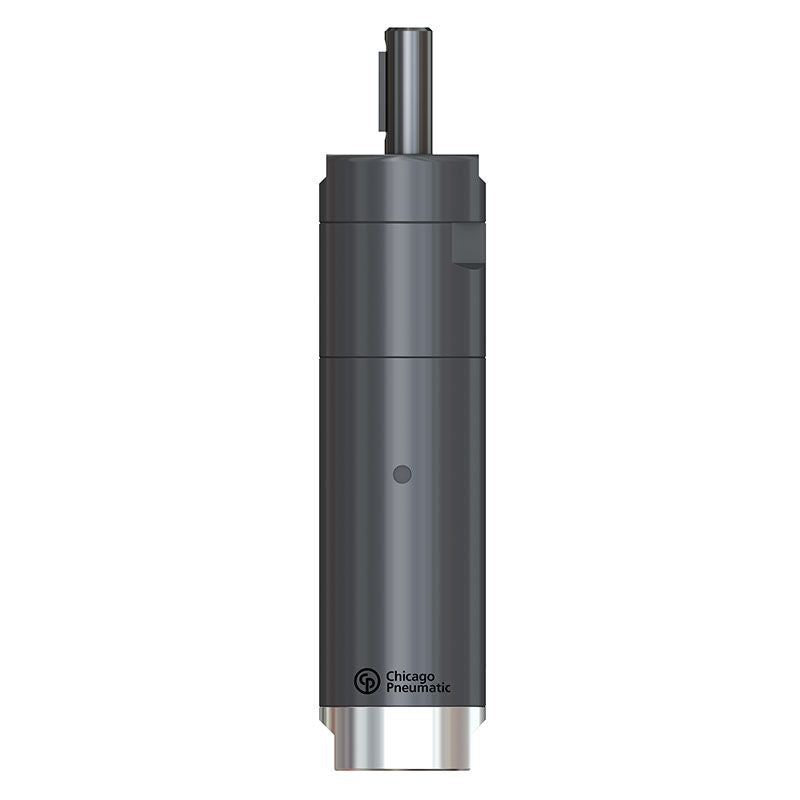

Chicago Pneumatic Air Motor MR39-360-KL ATEX โ 2051478774
0.34 hp Reversible vane air motor, 360 rpm free speed, ATEX certified
The standard pneumatic vane motors MR39-360-KL-ATEX is compact in design, light in weight, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 250 W (0.34 hp), with a maximum torque of 24 Nm (17.7 ft.lbs) and 360 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85ยฐC Db for dust
Features
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Air consumption at load | 16 cfm |
| Air flow max power | 16 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Max free speed range | 360 rpm |
| Minimum starting torque | 11.5 ft.lbf |
| Stall torque | 17.7 ft.lbf |
| Torque at max power | 8.9 ft.lbf |
| Max output power | 0.34 hp |
| Output Spindle size | 0.47 in |
| Weight | 2.25 lb |
| Back Head Coaxial | No |
| Front nut threaded | No |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| Rotation drive | Reversible |
| Shaft loading code | c |
| Spindle type | Keyed shaft |
| Starting system | None |
| CP part # | 2051478774 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
