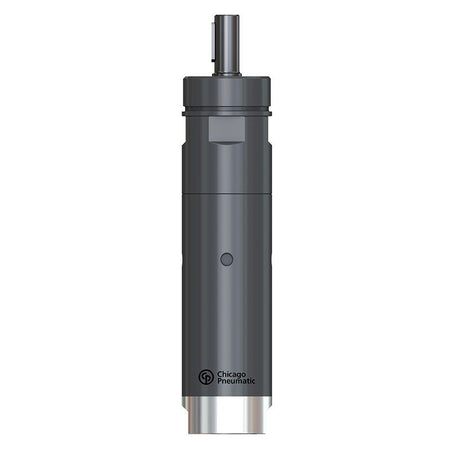

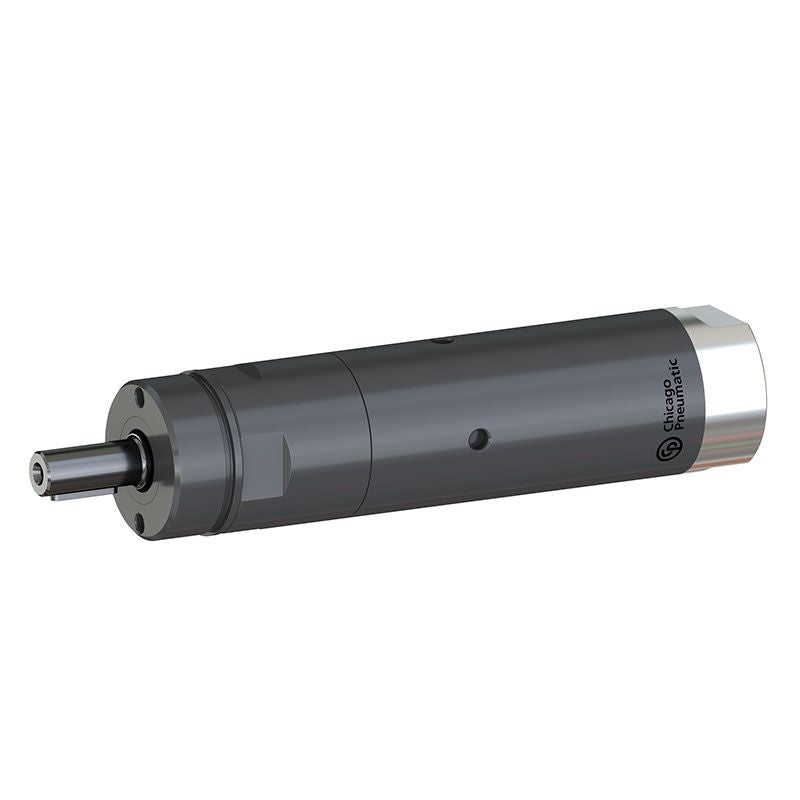

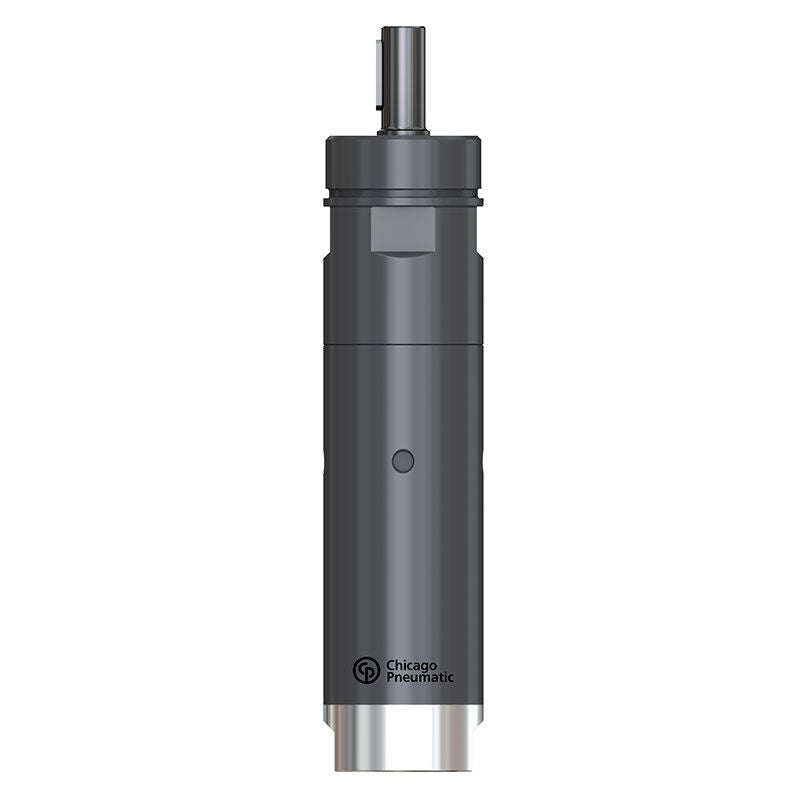

Chicago Pneumatic Air Motor MR2501-640-KL ATEX โ 6151780950
0.21 hp Reversible vane air motor, 640 rpm free speed, ATEX certified
The standard pneumatic vane motors MR2501-640-KL-ATEX is compact in design, light in weight, lubrication free, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 160 W (0.21 hp), with a maximum torque of 9,4 Nm (6.9 ft.lbs) and 640 rpm free speed
Features
- Low friction and lubrication-free design of vanes for ruggedness.
- Sustain stall torque loading indefinitely.
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Air consumption at load | 10 cfm |
| Air flow max power | 10 cfm |
| Air inlet thread size (in) | 1/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Max free speed range | 640 rpm |
| Minimum starting torque | 4.6 ft.lbf |
| Stall torque | 6.9 ft.lbf |
| Torque at max power | 3.5 ft.lbf |
| Max output power | 0.21 hp |
| Output Spindle size | 0.39 in |
| Weight | 1.65 lb |
| Back Head Coaxial | No |
| Front nut threaded | No |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| Rotation drive | Reversible |
| Shaft loading code | b |
| Spindle type | Keyed shaft |
| Starting system | None |
| ATEX | Yes |
| CP part # | 6151780950 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
