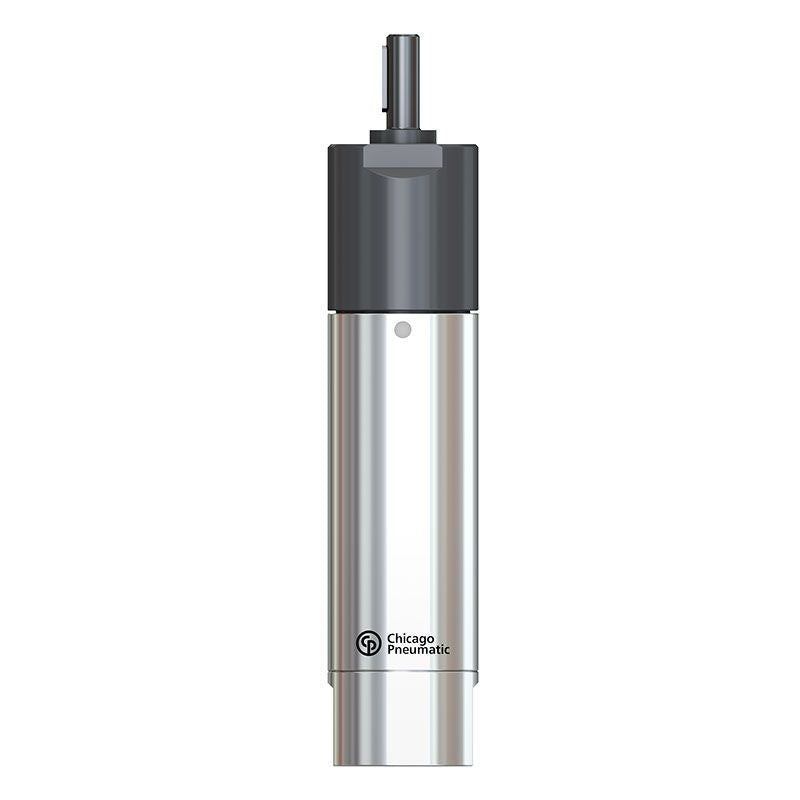

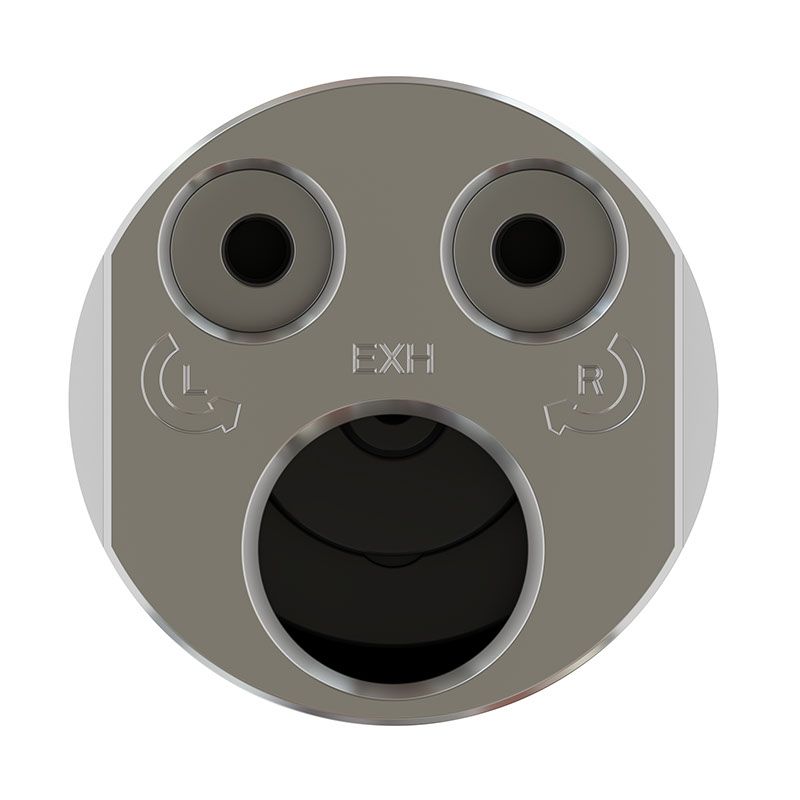

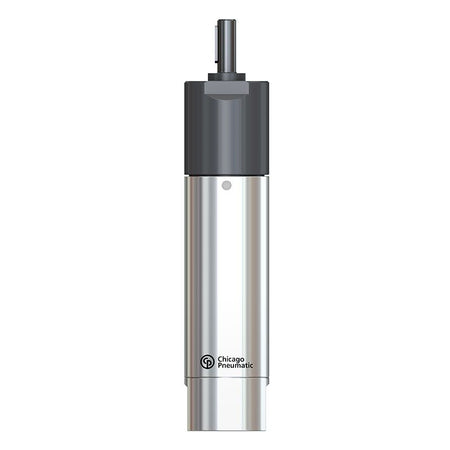

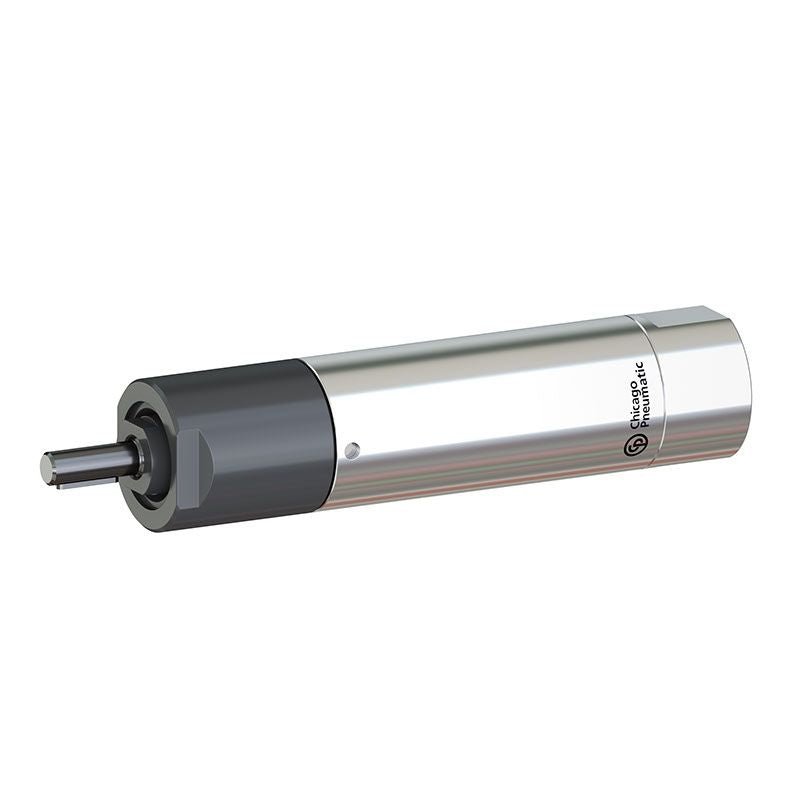

Chicago Pneumatic Air Motor MR16-800-KL ATEX โ 2051479004
0.15 hp Reversible vane air motor, 800 rpm free speed, ATEX certified
The MR16-800-KL-ATEX is a compact and lightweight pneumatic vane air motor, suitable for handheld machines and industrial equipment. It delivers a maximum power of 110 W (0.15 hp), with a maximum torque of 5.2 Nm (3.8 ft.lbs) and 800 rpm free speed, and is ATEX certified for safety in hazardous environments.
Features
- Compact design
- Lightweight
- Reversible motor
- ATEX certified
- Low friction and lubrication-free design
- Strong starting torque
Specifications
| Max output power | 0.15 hp |
| Max free speed | 800 rpm |
| Maximum torque | 5.2 Nm (3.8 ft.lbs) |
| Air consumption at load | 7.6 cfm |
| Air inlet thread size | 1/8 |
| Max dynamic air working pressure | 90 psi |
| Weight | 0.88 lb |
| Output Spindle size | 0.24 in |
| Index of protection (IP code) | IP66 |
| CP part # | 2051479004 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 2051479004
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
