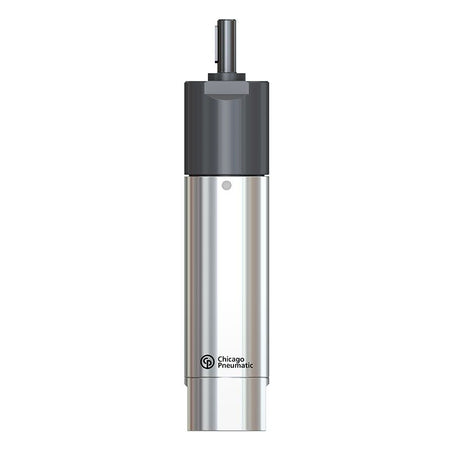

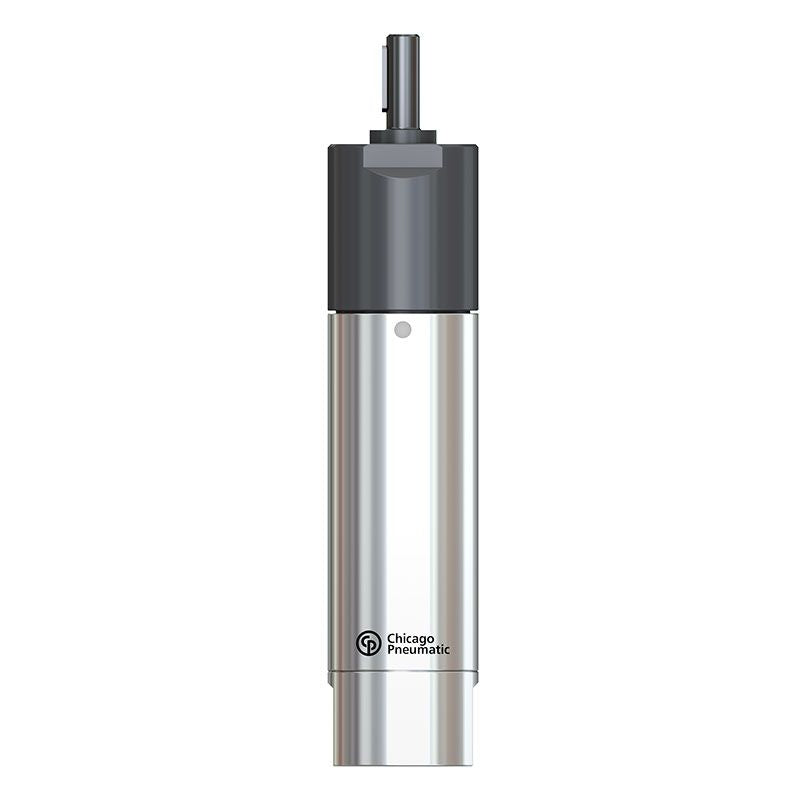

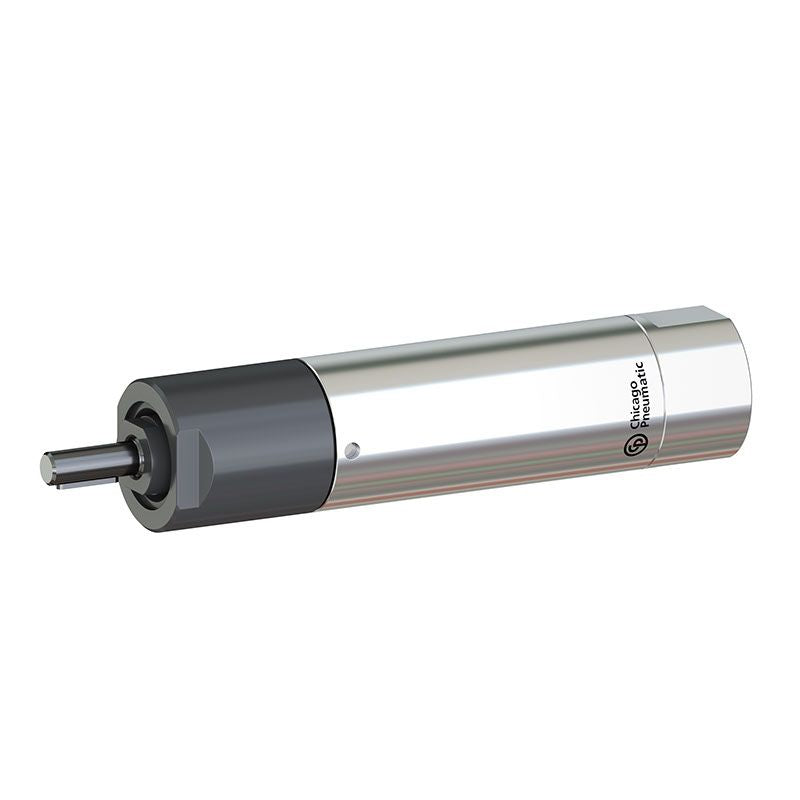

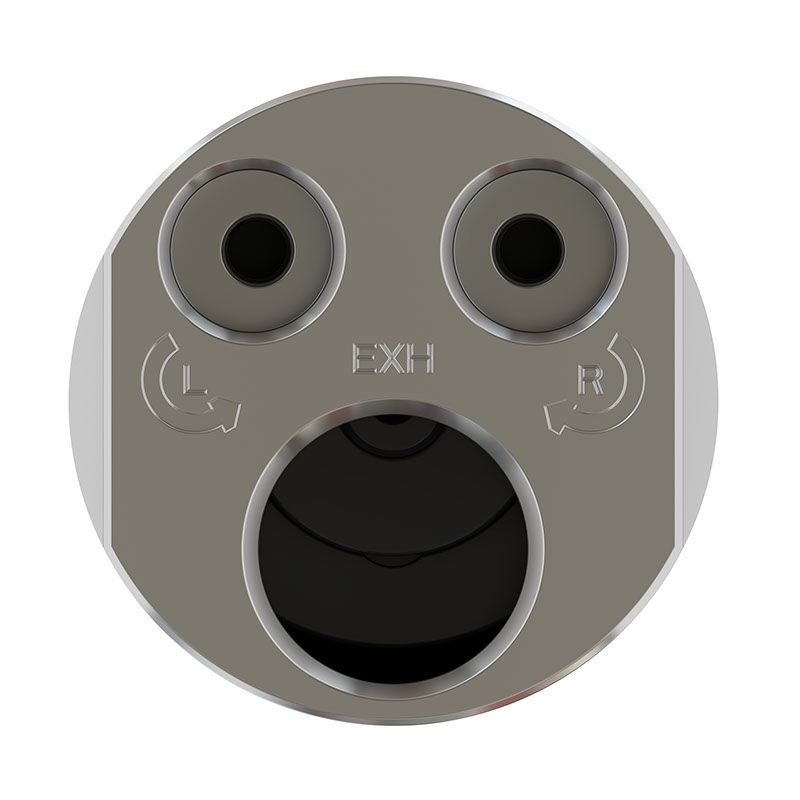

Chicago Pneumatic Air Motor MR16-490-KL-ATEX โ 2051479014
0.15 hp Reversible vane air motor, 490 rpm free speed, ATEX certified
The standard pneumatic vane motors MR16-490-KL-ATEX is compact in design, light in weight, suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 110 W (0.15 hp), with a maximum torque of 8.6 Nm (6.3 ft.lbs) and 490 rpm free speed, and is ATEX certified.
Features
- Low friction and lubrication-free design
- Short and compact planetary gear system
- Strong starting torque for mobility
- Long-lasting efficiency with low air consumption
Specifications
| Air consumption at load | 7.6 cfm |
| Air flow max power | 7.6 cfm |
| Air inlet thread size | 1/8 in |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Max free speed range | 490 rpm |
| Minimum starting torque | 5.1 ft.lbf |
| Stall torque | 6.3 ft.lbf |
| Torque at max power | 3.2 ft.lbf |
| Max output power | 0.15 hp |
| Output Spindle size | 0.24 in |
| Weight | 0.88 lb |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| Rotation drive | Reversible |
| Shaft loading code | a |
| Spindle type | Keyed shaft |
| Starting system | None |
| CP part # | 2051479014 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
