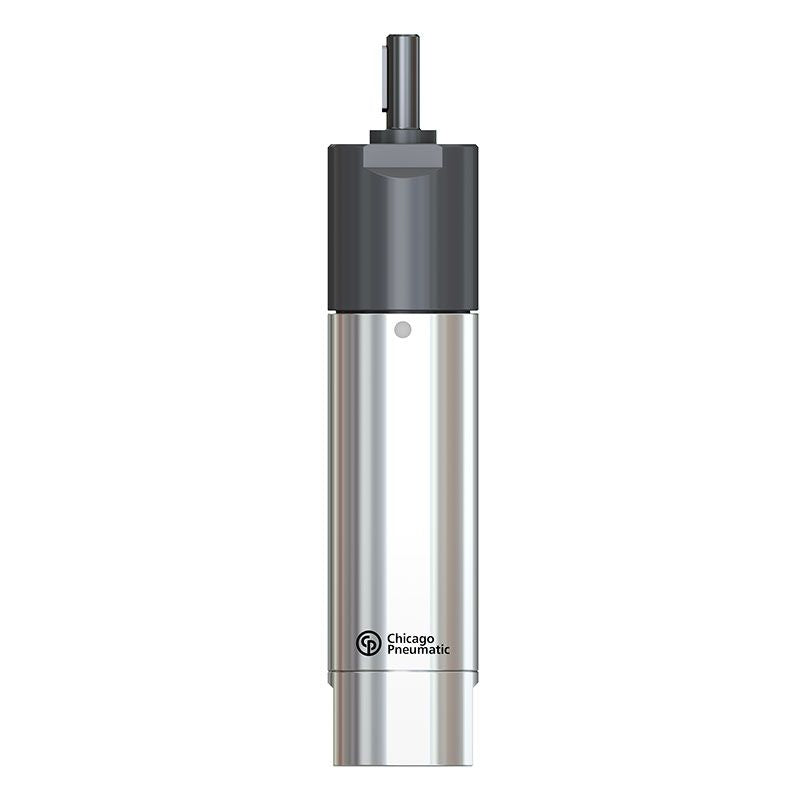

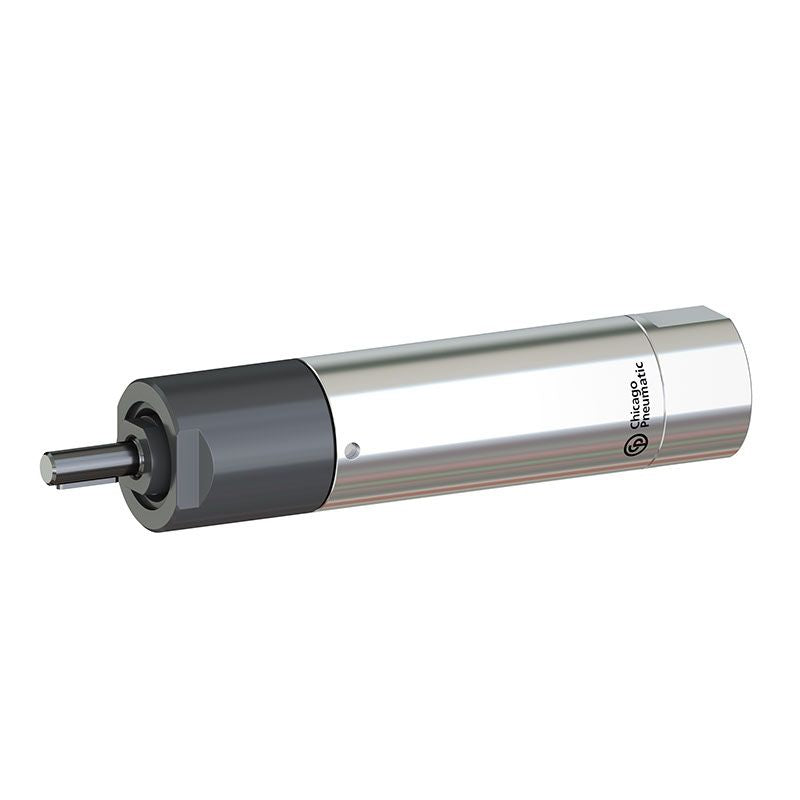

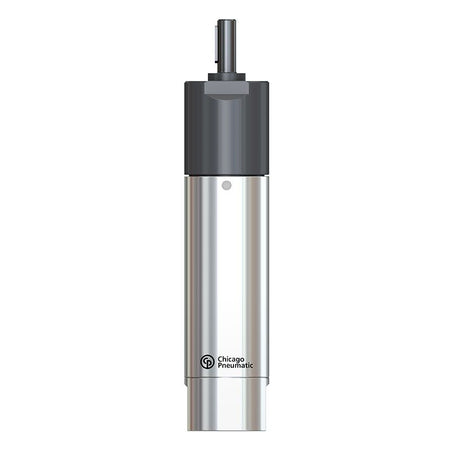

Chicago Pneumatic Air Motor MR16-3400-KL ATEX โ 2051478984
0.15 hp Reversible vane air motor, 3400 rpm free speed, ATEX certified
The standard pneumatic vane motors MR16-3400-KL-ATEX is compact in design, light in weight, suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 110 W (0.15 hp) with a maximum torque of 1.24 Nm (0.91 ft.lbs) and 3400 rpm free speed, and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85ยฐC Db for dust.
Features
- Compact design
- Lightweight
- Reversible air motor
- Lubrication-free operation
- ATEX certified
Specifications
| Max output power | 0.15 hp |
| Max free speed | 3400 rpm |
| Max dynamic air working pressure | 90 psi |
| Weight | 0.82 lb |
| Air consumption at load | 7.6 cfm |
| Index of protection (IP code) | IP66 |
| Torque at max power | 0.5 ft.lbf |
| Stall torque | 0.9 ft.lbf |
| Minimum starting torque | 0.7 ft.lbf |
| CP part # | 2051478984 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
