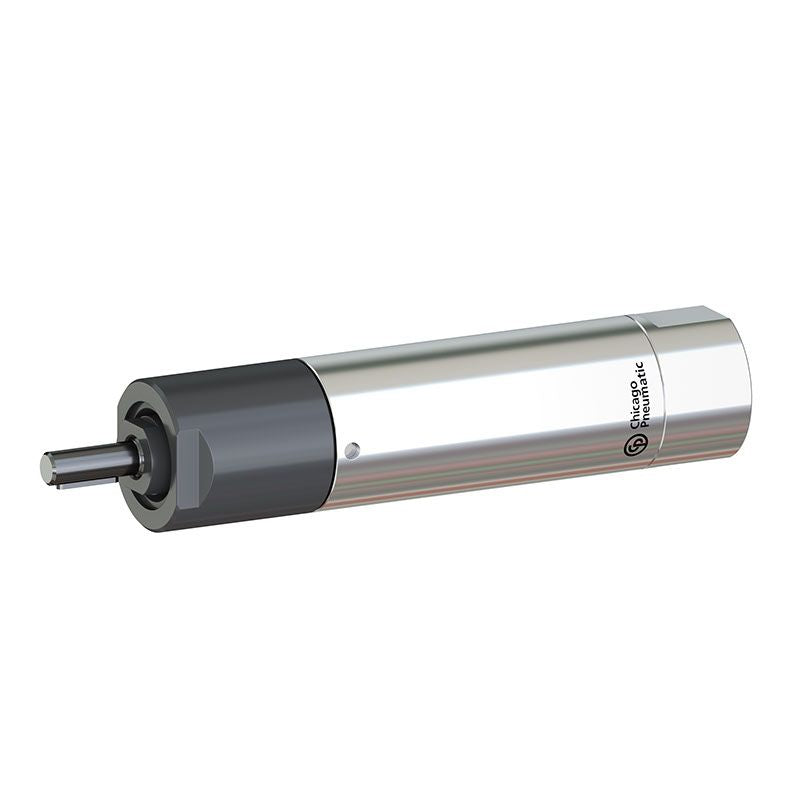

Chicago Pneumatic Air Motor MR16-2000-KL ATEX โ 2051478994
0.15 hp Reversible vane air motor, 2000 rpm free speed, ATEX certified
The standard pneumatic vane motors MR16-2000-KL-ATEX is compact in design, light in weight, suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 110 W (0.15 hp), with a maximum torque of 2.1 Nm (1.5 ft.lbs) and 2000 rpm free speed and is ATEX certified.
Features
- Reversible operation
- Compact design
- Lightweight construction
- Lubrication-free design
- Strong starting torque
Specifications
| Air consumption at load | 7.6 cfm |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Max free speed range | 2000 rpm |
| Minimum starting torque | 1.2 ft.lbf |
| Stall torque | 1.5 ft.lbf |
| Max output power | 0.15 hp |
| Output Spindle size | 0.24 in |
| Weight | 0.82 lb |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| Rotation drive | Reversible |
| Spindle type | Keyed shaft |
| CP part # | 2051478994 |
