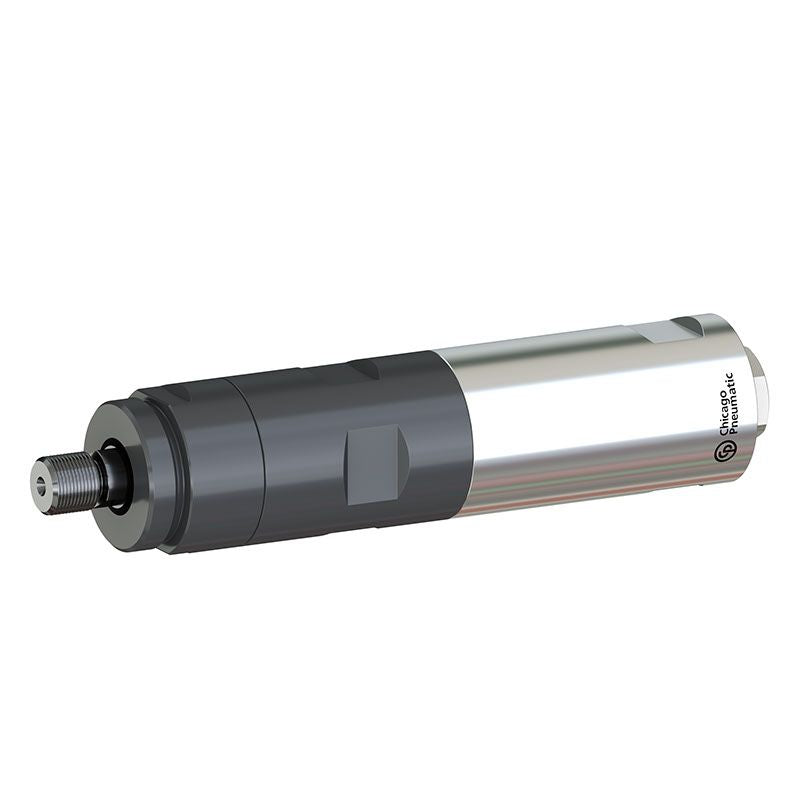

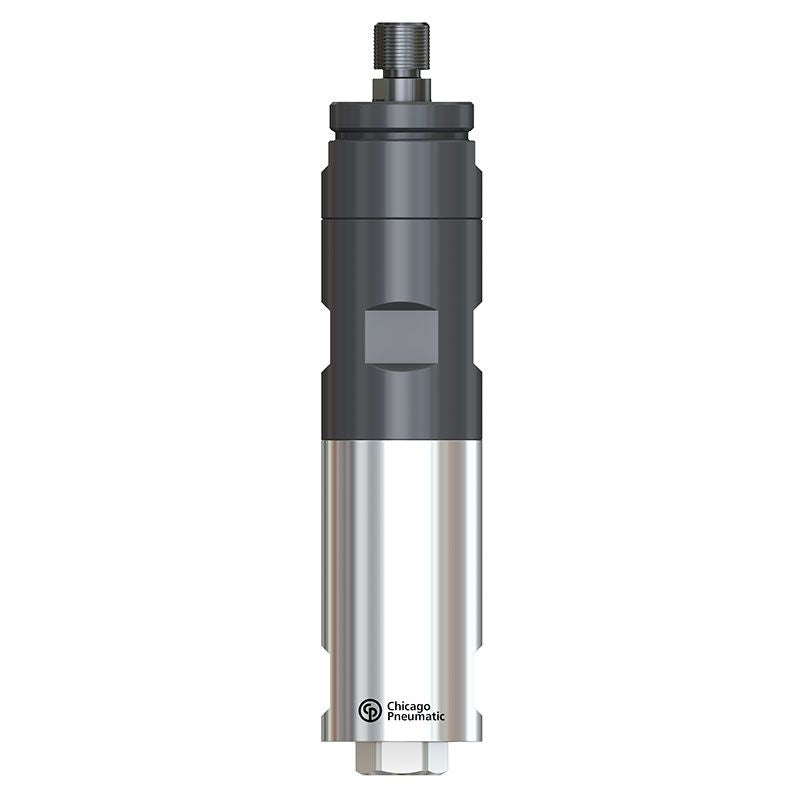

Chicago Pneumatic Air Motor M84-20000-T ATEX โ 2051481414
1.13 hp non-reversible vane air motor, 20000 rpm free speed, ATEX certified
The standard pneumatic vane motors M84-20000-T-ATEX is compact, lightweight, and equipped with a threaded shaft spindle. It delivers maximum power of 840 W (1.13 hp) with a maximum torque of 1.48 Nm (1.09 ft.lbs) and free speed of 20000 rpm. This product is ATEX certified for safe use in explosive environments.
Features
- Non-reversible
- Compact design
- Lightweight
- Suitable for handheld machines and industrial equipment
- ATEX certified
Specifications
| Max output power | 1.13 hp |
| Max free speed range | 20000 rpm |
| Weight | 2.65 lb |
| Air consumption at load | 34 cfm |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Minimum starting torque | 0.9 ft.lbf |
| Stall torque | 1.1 ft.lbf |
| Torque at max power | 0.5 ft.lbf |
| Output Spindle Thread | 1/2-13 UNC |
| Rotation drive | Clockwise |
| CP part # | 2051481414 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
