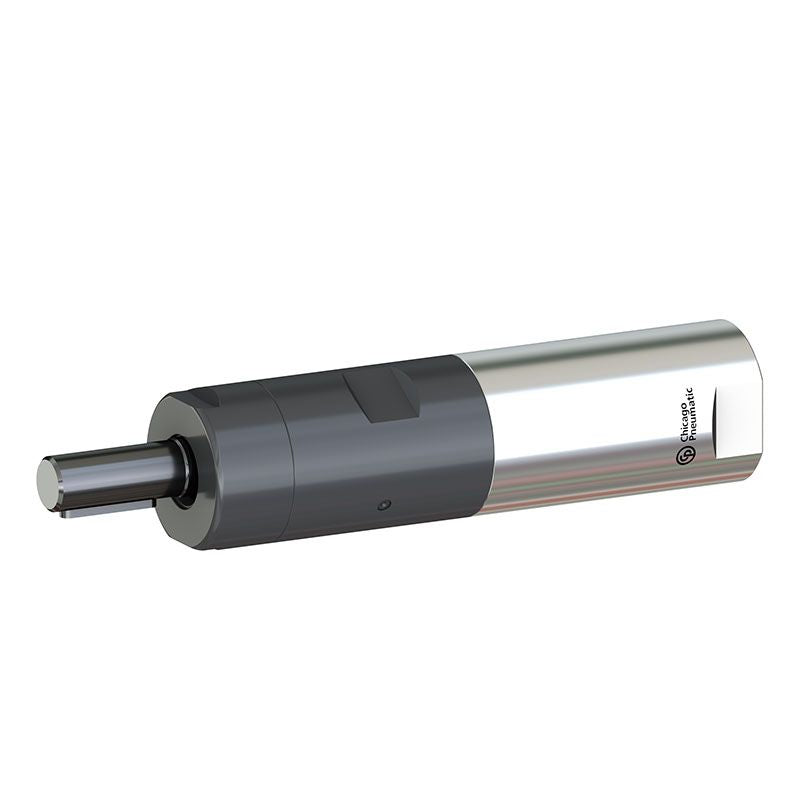

Chicago Pneumatic Air Motor M84-1400-K ATEX โ 2051479164
1.1 hp non-reversible vane air motor, 1400 rpm free speed, ATEX certified
The standard pneumatic vane motors M84-1400-K-ATEX is compact in design, light in weight, suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 840 W (1.1 hp), with a maximum torque of 21 Nm (15.5 ft.lbs) and 1400 rpm free speed and is ATEX certified.
Features
- Compact design
- Lightweight
- Keyed shaft spindle
- Non-reversible air motor
- ATEX certified
Specifications
| Air consumption at load | 34 cfm |
| Air flow max power | 34 cfm |
| Air inlet thread size | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Max free speed range | 1400 rpm |
| Minimum starting torque | 12.5 ft.lbf |
| Stall torque | 15.5 ft.lbf |
| Torque at max power | 7.7 ft.lbf |
| Max output power | 1.1 hp |
| Output Spindle size | 0.63 in |
| Weight | 2.87 lb |
| Back Head Coaxial | No |
| Front nut threaded | No |
| Main Material type | Steel |
| Motor Lubrication free | No |
| Rotation drive | Clockwise |
| Shaft loading code | e |
| Spindle type | Keyed shaft |
| Starting system | None |
| CP part # | 2051479164 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
