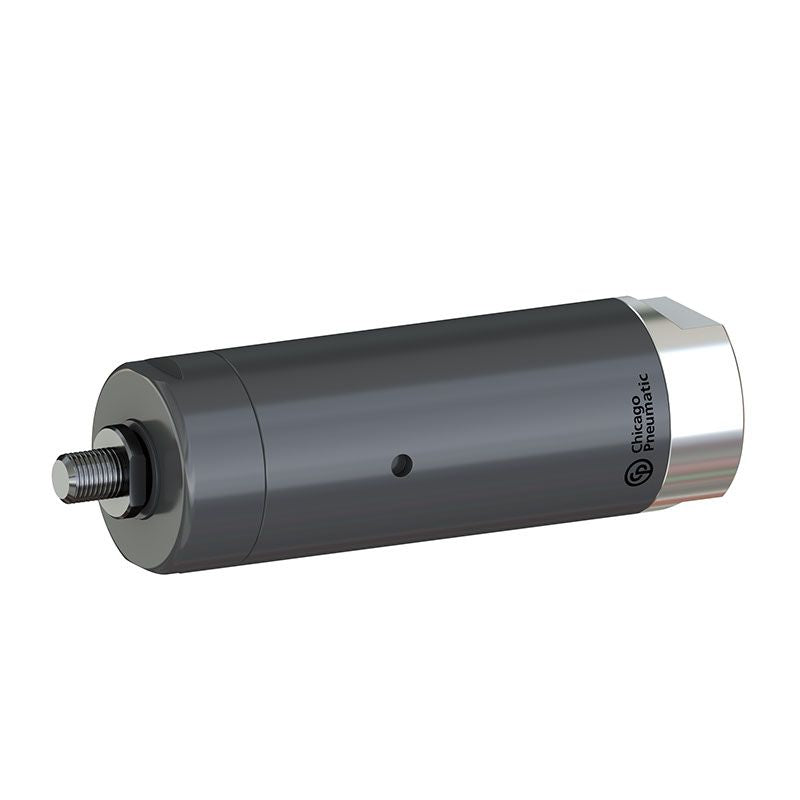

Chicago Pneumatic Air Motor M3901-520-TL ATEX – 2051481694

Description

0.51 hp non-reversible vane air motor with 520 rpm free speed, ATEX certified.

The M3901-520-TL-ATEX is a non-reversible vane air motor designed for handheld machines and industrial equipment. It boasts a maximum power of 0.51 hp and a free speed of 520 rpm.

Features

• Compact design
• Lightweight
• Lubrication free
• Threaded shaft spindle
• Non-reversible

Specifications

Air consumption at load	17 cfm
Max dynamic air working pressure	90 psi
Index of protection (IP code)	IP66
Max free speed	520 rpm
Minimum starting torque	19.2 ft.lbf
Stall torque	20.7 ft.lbf
Torque at max power	10.5 ft.lbf
Max output power	0.51 hp
Weight	2.25 lb
Main Material type	Steel
Output Spindle Thread	5/8-16 UNF
Rotation drive	Clockwise
CP part #	2051481694

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
