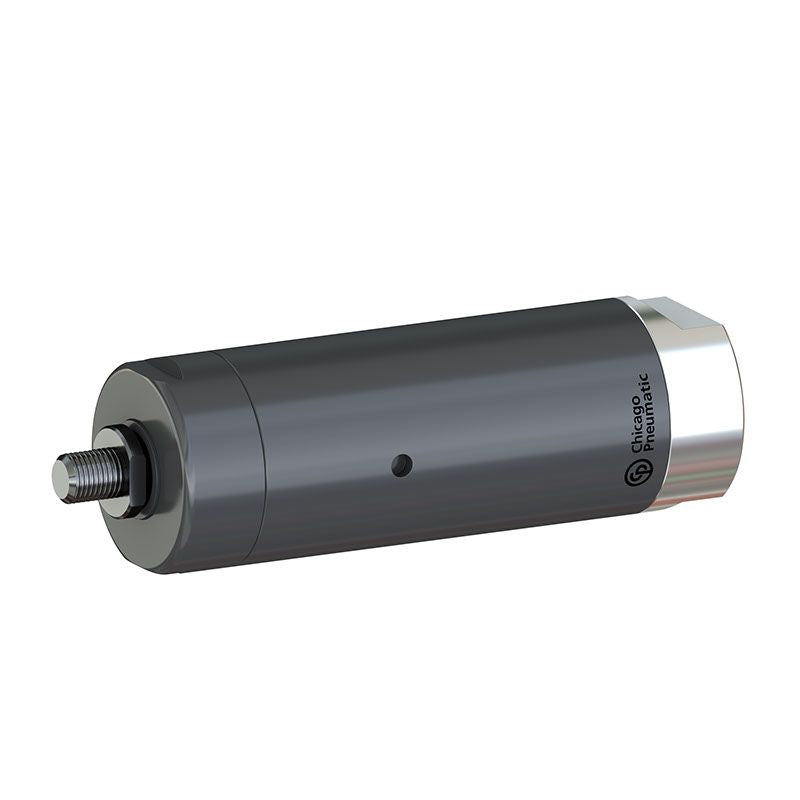

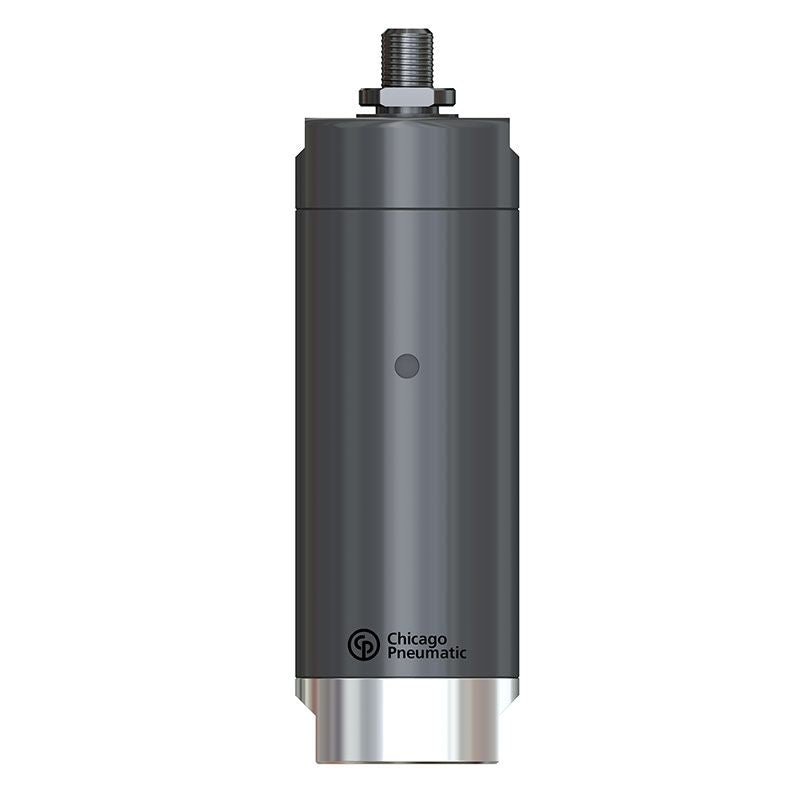

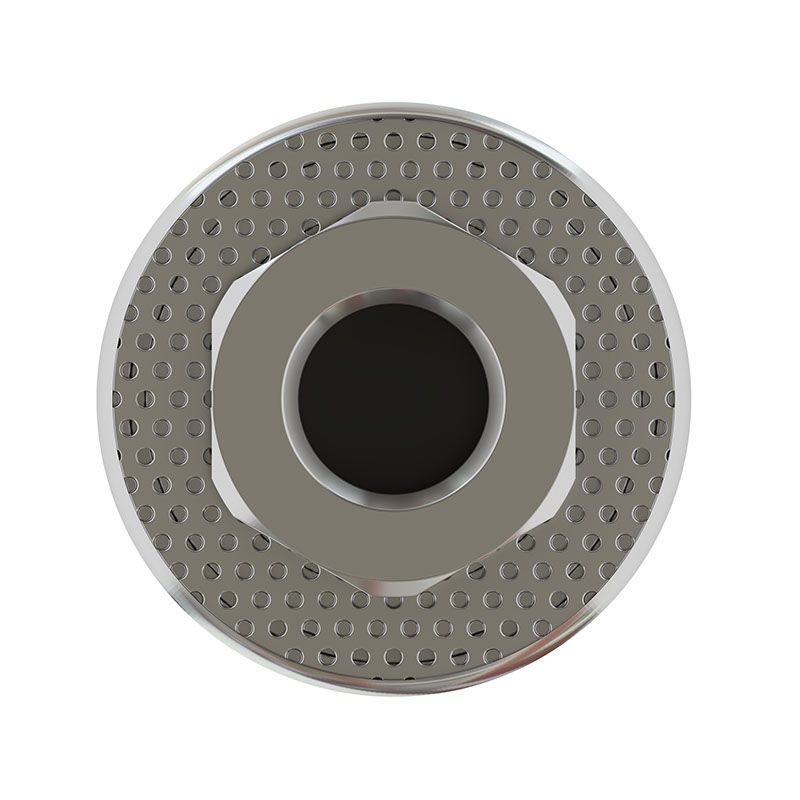

Chicago Pneumatic Air Motor M3901-340-TL ATEX โ 2051481704
Regular price
$3,599.76 CAD
Model / Part #2051481704
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
Free shipping on tools over $299.99Under $299.99, shipping is calculated at checkout · Shipping details
0.5 hp non-reversible vane air motor with 340 rpm free speed, designed for rugged applications.
The standard pneumatic vane motors M3901-340-TL-ATEX is designed for versatility in handheld or industrial applications, delivering optimal performance with a maximum power of 0.5 hp.
Features
- Compact design
- Lightweight
- Lubrication-free
- Threaded shaft spindle
- Non-reversible air motor
- ATEX certified
Specifications
| Max Output Power | 0.5 hp |
| Free Speed | 340 rpm |
| Max Torque | 45 Nm (33 ft.lbs) |
| Air Consumption at Load | 17 cfm |
| Weight | 3.31 lb |
| Index of Protection (IP) | IP66 |
| Max Dynamic Air Working Pressure | 90 psi |
| Minimum Starting Torque | 29.5 ft.lbf |
| Stall Torque | 33.2 ft.lbf |
| Torque at Max Power | 16.4 ft.lbf |
| Air Inlet Thread Size | 1/4 BSP |
| Rotation Drive | Clockwise |
| Spindle Type | Threaded shaft |
| CP part # | 2051481704 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 2051481704
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
