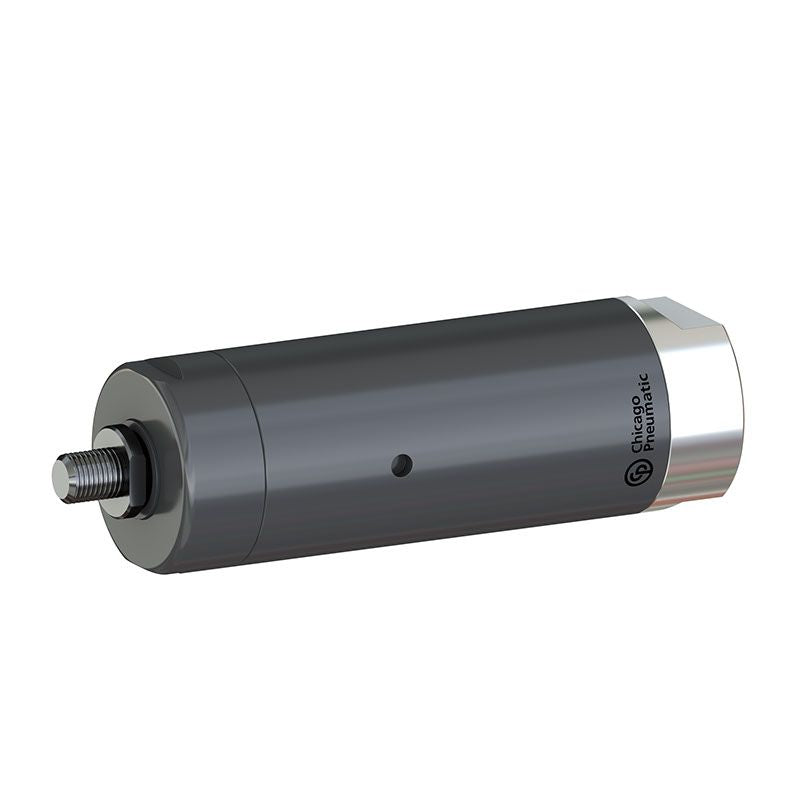

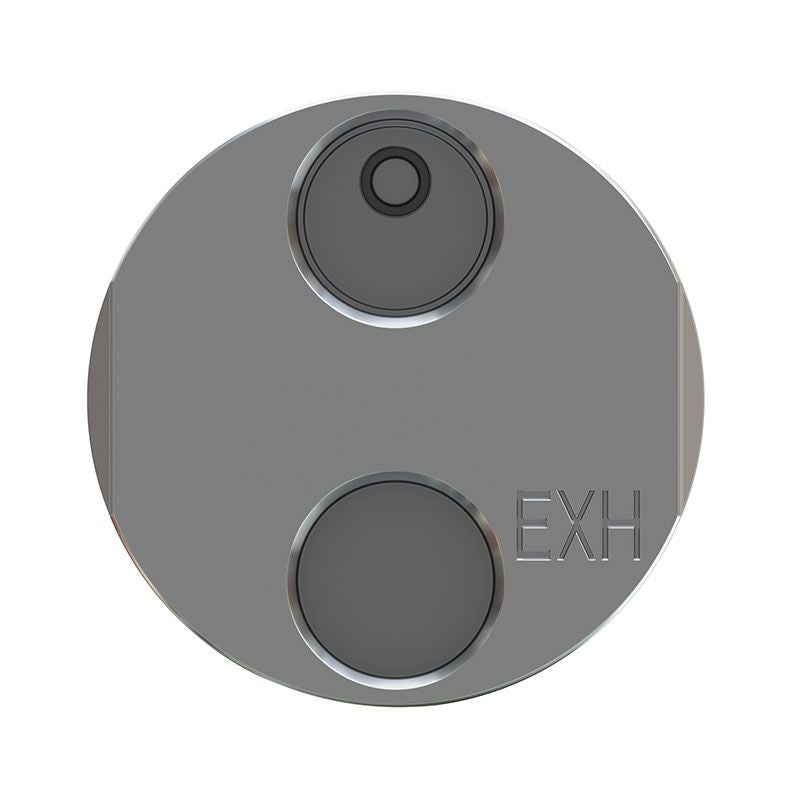

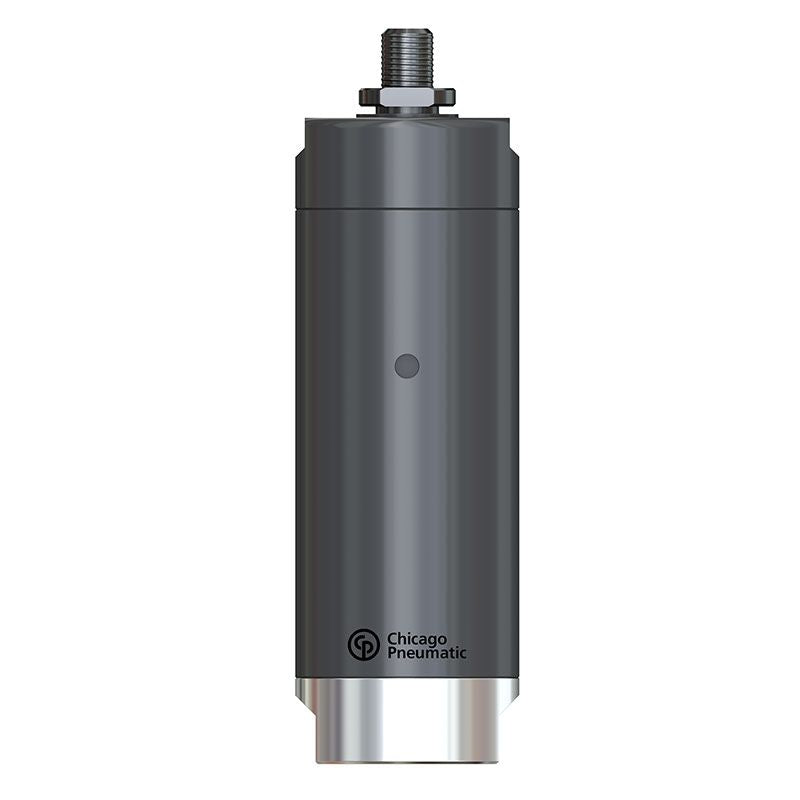

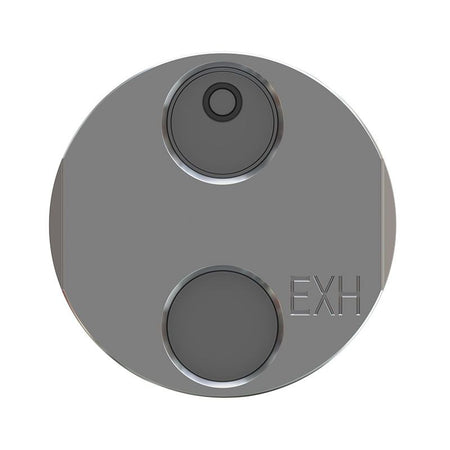

Chicago Pneumatic Air Motor M39-520-TL-ATEX โ 2051478704
0.51 hp non-reversible vane air motor, 520 rpm free speed, ATEX certified.
The standard pneumatic vane motors M39-520-TL-ATEX delivers a maximum power of 390 W (0.51 hp) with a max torque of 28 Nm (21 ft.lbs) and a free speed of 520 rpm. It is suitable for handheld machines and industrial equipment with ATEX certification.
Features
- Compact design
- Light weight
- Threaded shaft spindle
- Non-reversible air motor
- ATEX certified
Specifications
| Air consumption at load | 17 cfm |
| Max dynamic air working pressure | 90 psi |
| Max free speed range | 520 rpm |
| Max output power | 0.51 hp |
| Weight | 2.25 lb |
| Index of protection (IP code) | IP66 |
| Stall torque | 20.7 ft.lbf |
| Main Material type | Steel |
| CP part # | 2051478704 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
