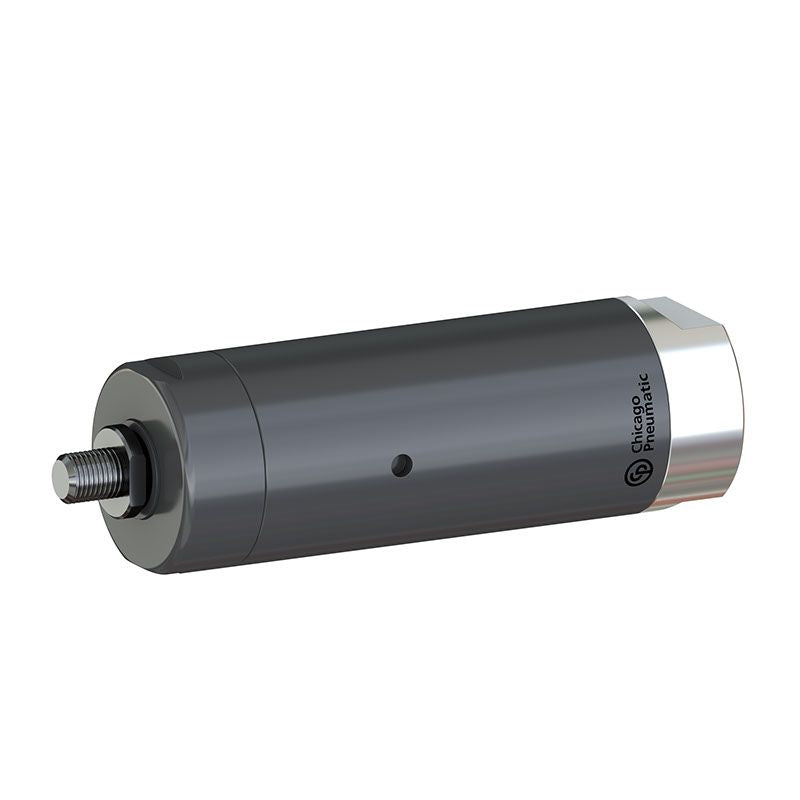

Chicago Pneumatic Air Motor M39-3000-TL ATEX โ 2051478664
0.52 hp non-reversible vane air motor, 300 rpm free speed, ATEX certified
The standard pneumatic vane motor M39-3000-TL-ATEX is compact in design and lightweight. Suitable for handheld machines or industrial equipment, it delivers a maximum power of 390 W (0.52 hp) with a maximum torque of 5.2 Nm (3.8 ft.lbs) and 300 rpm free speed. This motor is ATEX certified for safe use in hazardous environments.
Features
- Compact design
- Lightweight
- Threaded spindle shaft
- Non-reversible operation
- ATEX certified for gas and dust
Specifications
| Max Output Power | 0.52 hp |
| Max Free Speed | 300 rpm |
| Max Torque | 5.2 Nm (3.8 ft.lbs) |
| Air Consumption at Load | 17 cfm |
| Max Dynamic Air Working Pressure | 90 psi |
| Weight | 1.65 lb |
| Protection Index (IP code) | IP66 |
| Starting Torque | 3.6 ft.lbf |
| Stall Torque | 3.8 ft.lbf |
| Material Type | Steel |
| Output Spindle Thread | M12x1.25 |
| CP part # | 2051478664 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 2051478664
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
