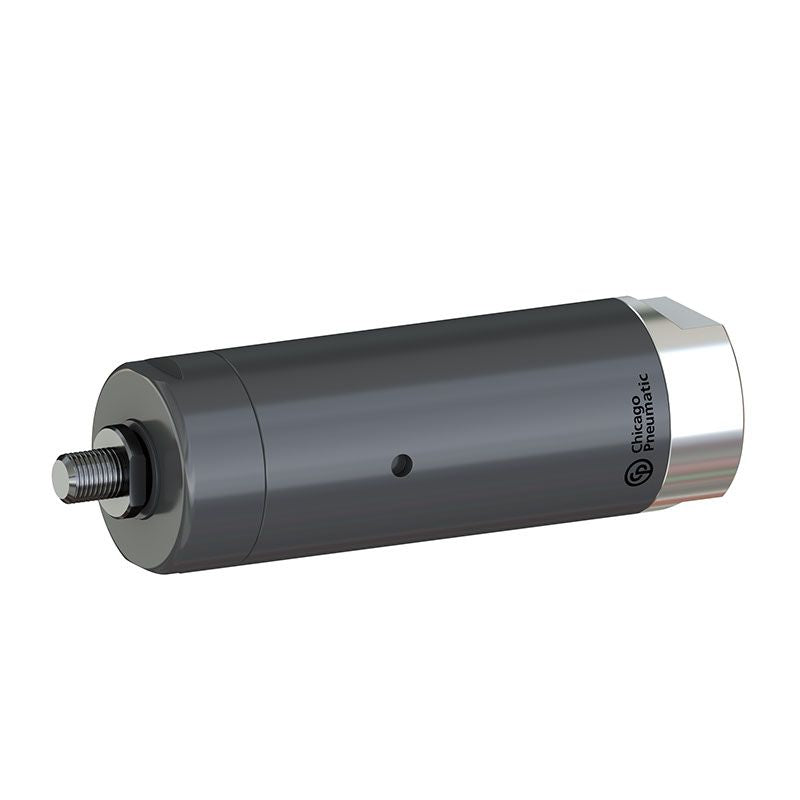

Chicago Pneumatic Air Motor M39-1180-TL ATEX โ 2051478684
0.51 hp non-reversible vane air motor, 1180 rpm free speed, ATEX certified
The standard pneumatic vane motors M39-1180-TL-ATEX is compact in design, light in weight, have Threaded shaft shaft spindle. It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 390 W (0.51 hp), with a maximum torque of 12.8 Nm (9.4 ft.lbs) and 1180 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85ยฐC Db for dust.
Features
- Compact design
- Lightweight
- Threaded shaft spindle
- Non-reversible air motor
- Low friction and lubrication-free design of vanes for ruggedness
- Strong starting torque for mobility during operation
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
Specifications
| Air consumption at load | 17 cfm |
| Air flow max power | 17 cfm |
| Air inlet thread size | 1/4 in |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Max free speed range | 1180 rpm |
| Minimum starting torque | 8.9 ft.lbf |
| Stall torque | 9.4 ft.lbf |
| Torque at max power | 4.7 ft.lbf |
| Max output power | 0.51 hp |
| Weight | 2.25 lb |
| Back Head Coaxial | No |
| Front nut threaded | No |
| Main Material type | Steel |
| Motor Lubrication | free |
| Output Spindle Thread | M12x1.25 |
| Rotation drive | Clockwise |
| Shaft loading code | c |
| Spindle type | Threaded shaft |
| Starting system | None |
| CP part # | 2051478684 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
