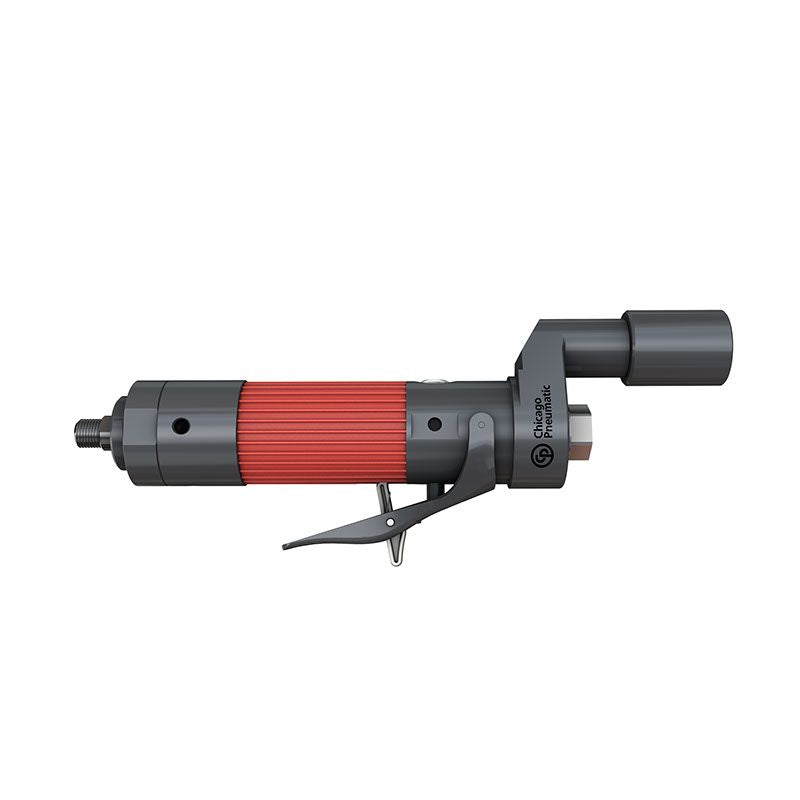

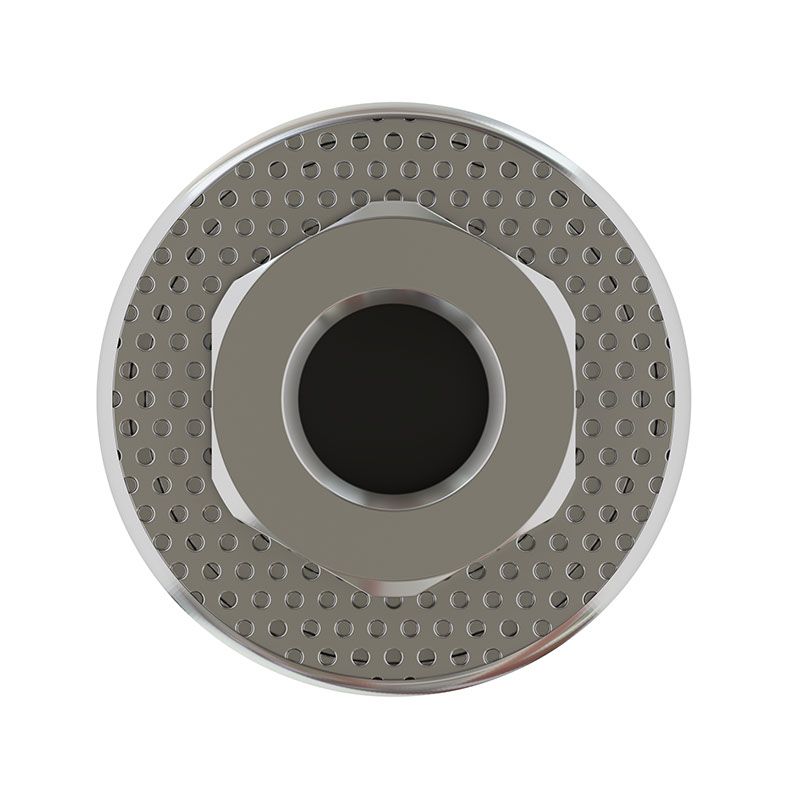

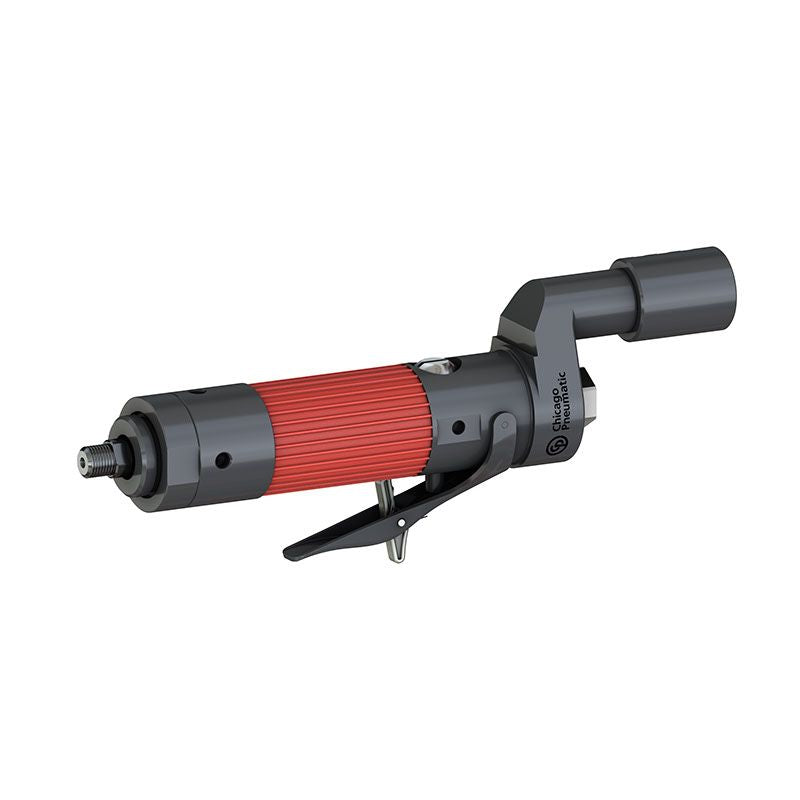

Chicago Pneumatic Air Motor M2501-5500-TL โ 2051481384
0.34 hp non-reversible vane air motor, 5500 rpm free speed, ATEX certified
The standard pneumatic vane motors M2501-5500-TL is compact in design, light in weight, have Threaded shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.34 hp), with a maximum torque of 19,8 Nm (1.7 ft.lbs) and 5500 rpm free speed
Features
- Low friction and lubrication-free design of vanes for ruggedness.
- Sustain stall torque loading indefinitely.
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Free speed | 5500 r/min |
| Air consumption at max output | 14.8 cfm |
| Max working pressure | 100 psig |
| Built in brake | No |
| Rotation direction | Clockwise |
| Vane type | Lubrication free |
| Inlet hose size | 0.25 in |
| Outlet hose size | 0.375 in |
| Weight | 1.1 lb |
| Max output | 0.3 hp |
| Speed at max output | 2800 r/min |
| Min starting torque | 1.5 ft-lb |
| Stall torque | 1.7 ft-lb |
| Torque at max output | 0.8 ft-lb |
| CP part # | 2051481384 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
