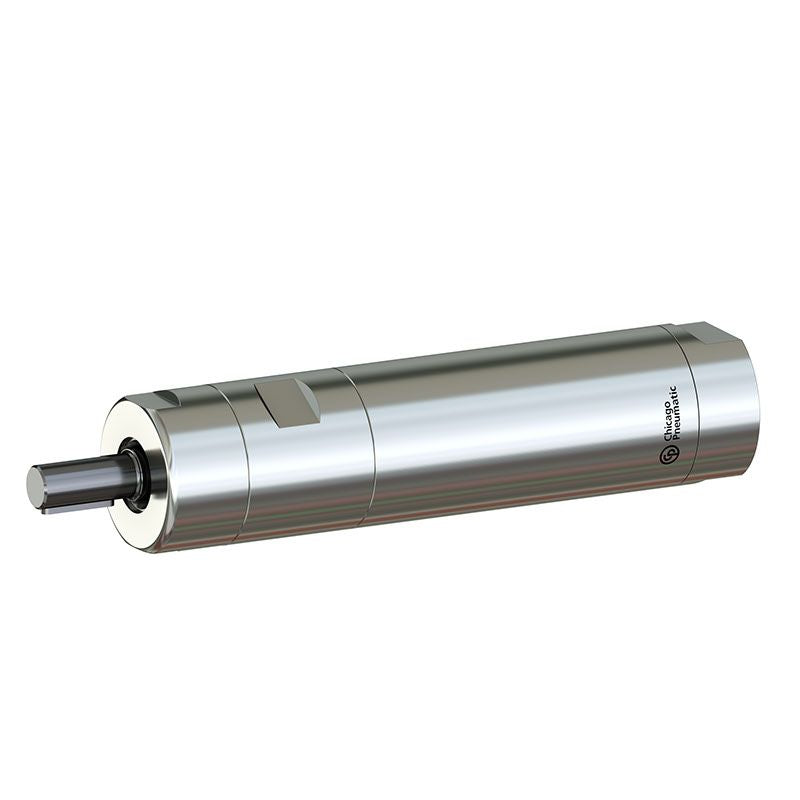

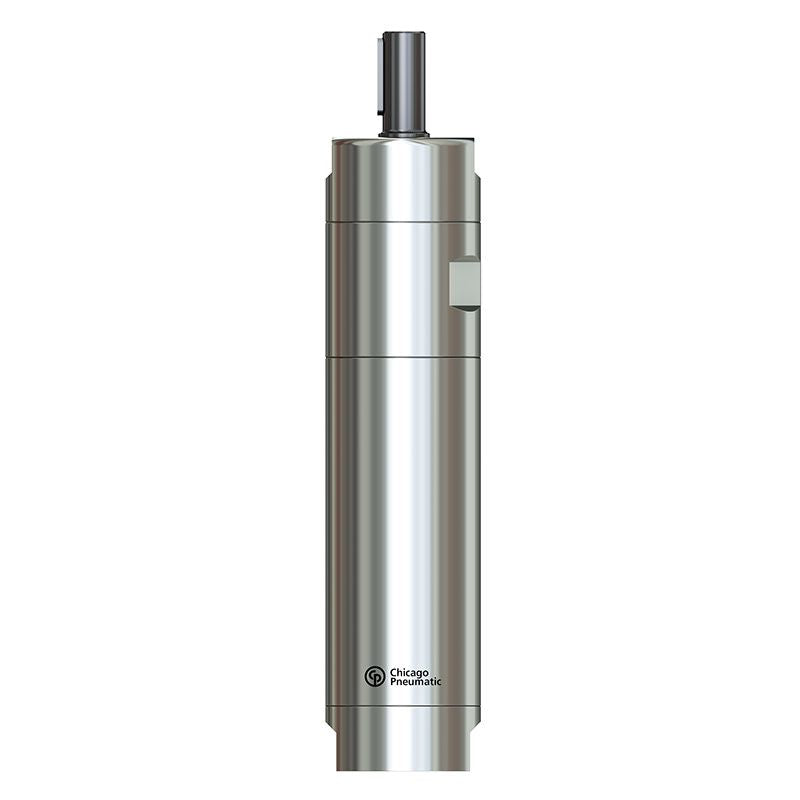

Chicago Pneumatic Air Motor M25-770-KSL ATEX โ 2051478484
0.35 hp non-reversible stainless steel air motor with 770 rpm free speed and ATEX certification.
The stainless steel pneumatic vane motors M25-770-KSL-ATEX is compact in design, light in weight, and suitable for building using handheld machines or any industrial equipment. It delivers a maximum power of 250 W (0.35 hp), a maximum torque of 14.2 Nm (10.5 ft.lbs), and 770 rpm free speed.
Features
- Compact design
- Lightweight
- Keyed shaft spindle
- Non-reversible air motor
- ATEX certified
Specifications
| Max Free Speed | 770 rpm |
| Air Consumption at Load | 11 cfm |
| Air Inlet Thread Size | 1/8 |
| Max Dynamic Air Working Pressure | 90 psi |
| Minimum Starting Torque | 10 ft.lbf |
| Stall Torque | 10.5 ft.lbf |
| Torque at Max Power | 5.2 ft.lbf |
| Main Material Type | Stainless steel |
| Motor Lubrication Free | Yes |
| Rotation Drive | Clockwise |
| Index of Protection (IP Code) | IP66, IP68, IP69 |
| Max Output Power | 0.35 hp |
| Output Spindle Size | 0.39 in |
| Weight | 1.83 lb |
| CP part # | 2051478484 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
