Chicago Pneumatic Air Motor M25-480-KL ATEX โ 2051478284
Regular price
$1,902.19 CAD
Model / Part #2051478284
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
Free shipping on tools over $299.99Under $299.99, shipping is calculated at checkout · Shipping details
0.35 hp non-reversible vane air motor, 480 rpm free speed, ATEX certified.

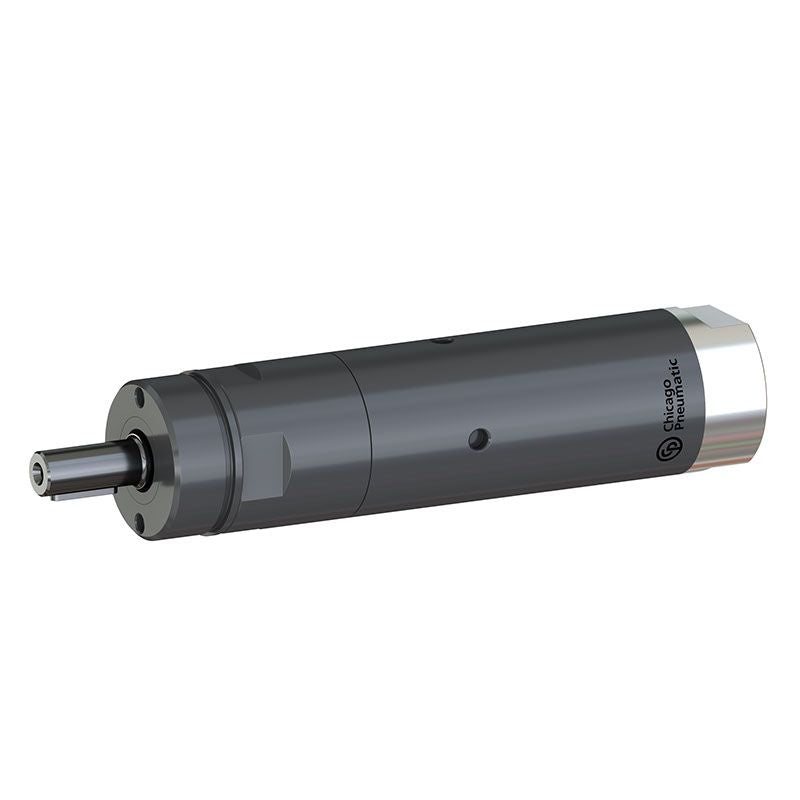

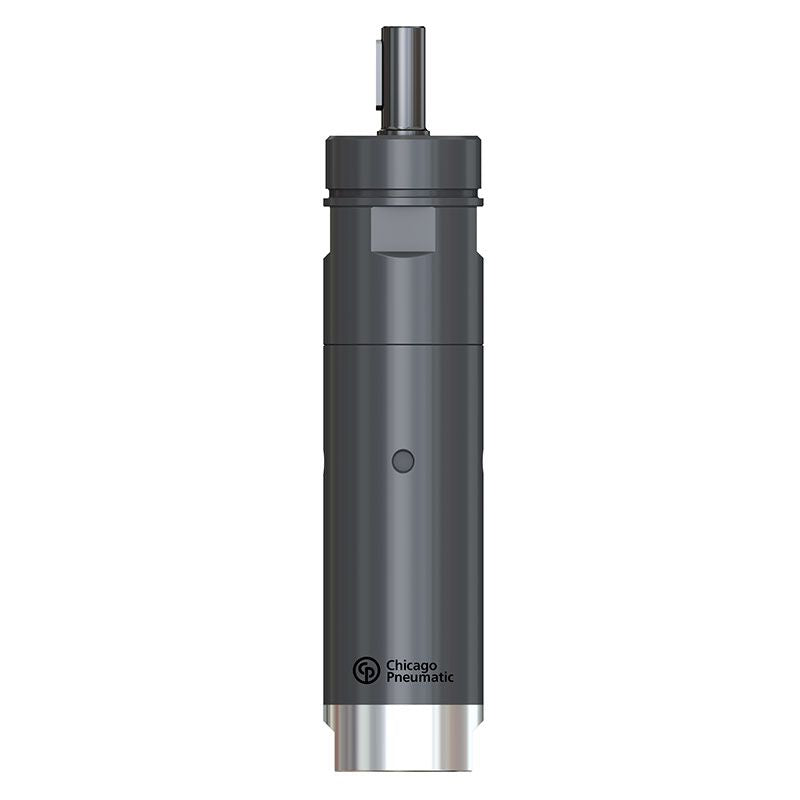

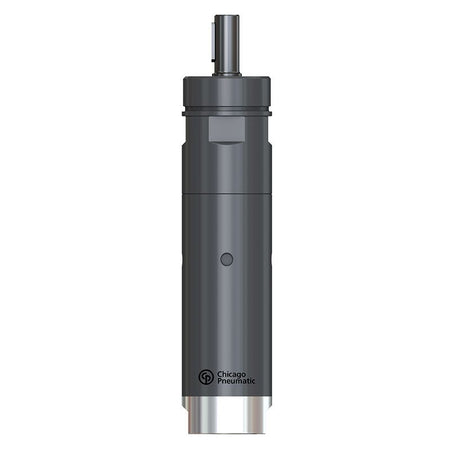

The standard pneumatic vane motors M25-480-KL-ATEX is compact in design, light in weight, and suitable for building using handheld machines or any industrial equipment.
Features
- Compact design
- Lightweight
- Keyed shaft spindle
- Non-reversible
- ATEX certified
- Low friction and lubrication-free design
- Short and compact planetary gear system
Specifications
| Max output power | 0.35 hp |
| Max free speed | 480 rpm |
| Max dynamic air working pressure | 90 psi |
| Air consumption at load | 11 cfm |
| Weight | 1.65 lb |
| Output Spindle size | 0.39 in |
| Stall torque | 17.4 ft.lbs |
| IP code | IP66 |
| CP part # | 2051478284 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 2051478284
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
