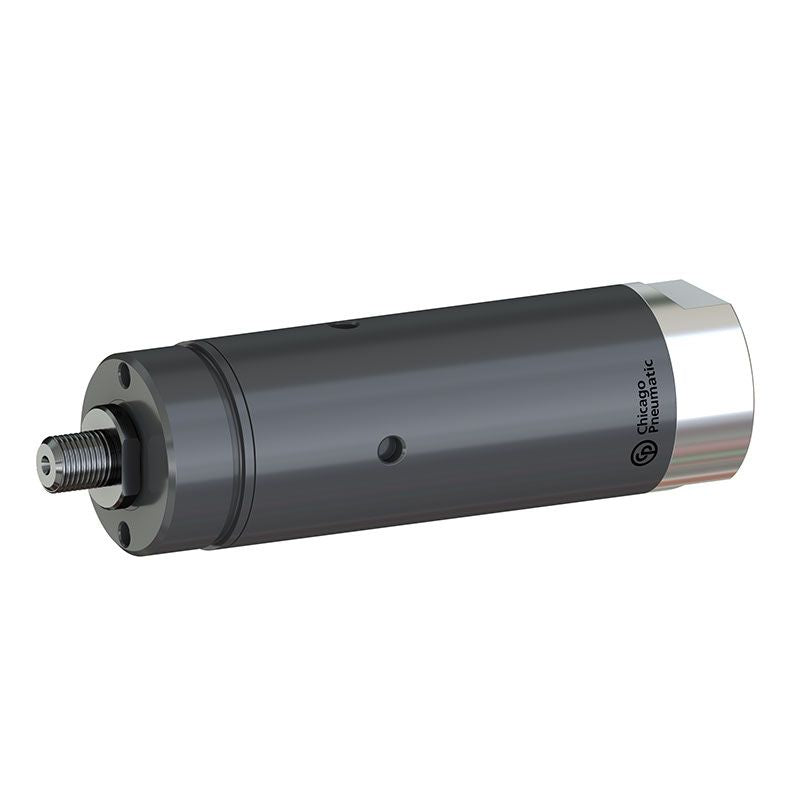

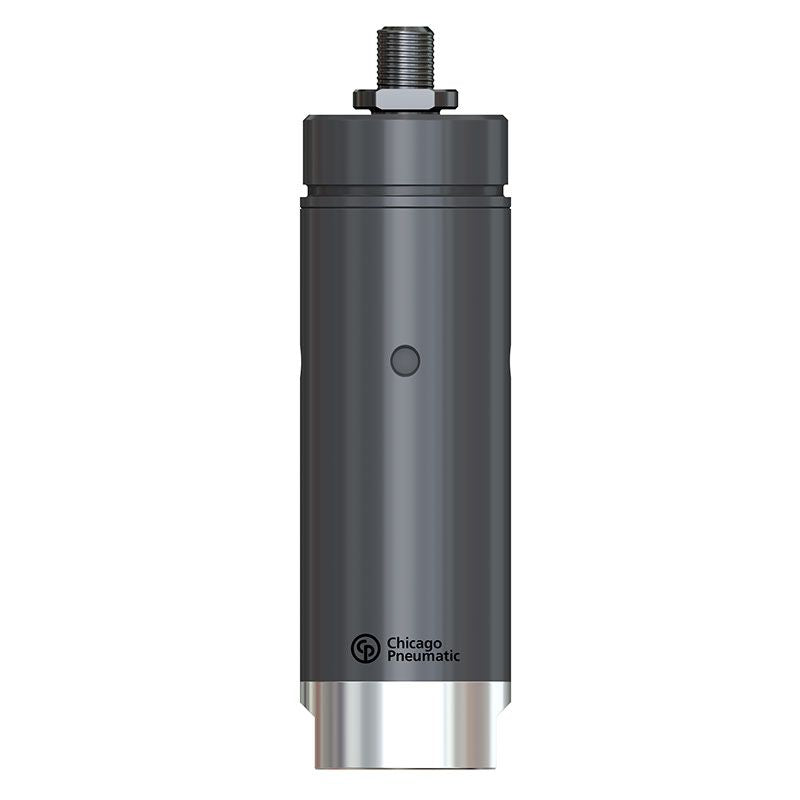

Chicago Pneumatic Air Motor M25-4700-TL ATEX โ 2051478304
0.36 hp non-reversible vane air motor with 4700 rpm free speed and ATEX certification.
The standard pneumatic vane motor M25-4700-TL-ATEX is designed for handheld machines or industrial equipment, offering a maximum power of 250 W (0.36 hp) and a maximum torque of 2.4 Nm (1.8 ft.lbs). With a free speed of 4700 rpm and ATEX certification, it ensures safety in hazardous environments.
Features
- Compact design
- Lightweight
- Threaded shaft spindle
- Non-reversible
- ATEX certified
Specifications
| Air consumption at load | 11 cfm |
| Air inlet thread size | 1/8 |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Max free speed range | 4700 rpm |
| Minimum starting torque | 1.7 ft.lbf |
| Stall torque | 1.8 ft.lbf |
| Max output power | 0.36 hp |
| Weight | 1.21 lb |
| Main Material type | Steel |
| Rotation drive | Clockwise |
| CP part # | 2051478304 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
