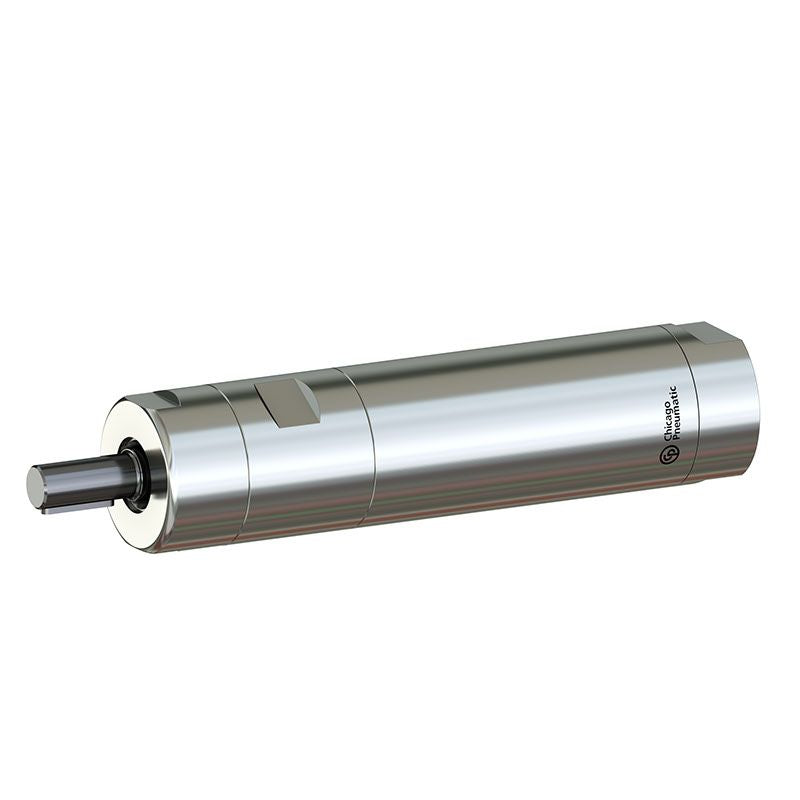

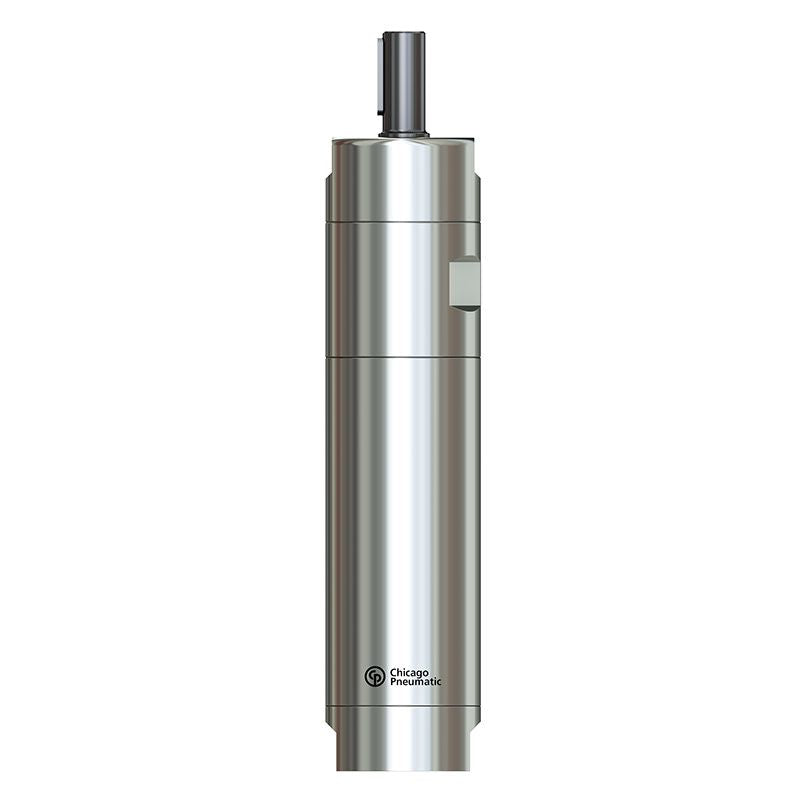

Chicago Pneumatic Air Motor M25-4700-KSL ATEX โ 2051478444
0.36 hp non-reversible stainless steel air motor, 4700 rpm free speed, ATEX
The stainless steel pneumatic vane motors M25-4700-KSL-ATEX is compact in design, light in weight, and suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.36 hp), with a maximum torque of 2.4 Nm (1.8 ft.lbs) and 4700 rpm free speed, and is ATEX certified.
Features
- Compact design
- Lightweight
- Keyed shaft spindle
- Non-reversible air motor
- ATEX certified
Specifications
| Max free speed | 4700 rpm |
| Air consumption at load | 11 cfm |
| Max dynamic air working pressure | 90 psi |
| Minimum starting torque | 1.7 ft.lbf |
| Stall torque | 1.8 ft.lbf |
| Max output power | 0.36 hp |
| Weight | 1.39 lb |
| Main Material type | Stainless steel |
| CP part # | 2051478444 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
