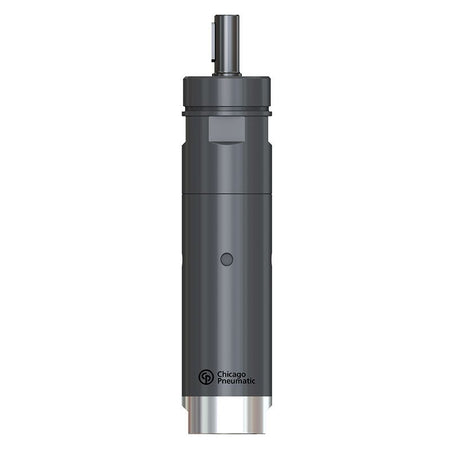

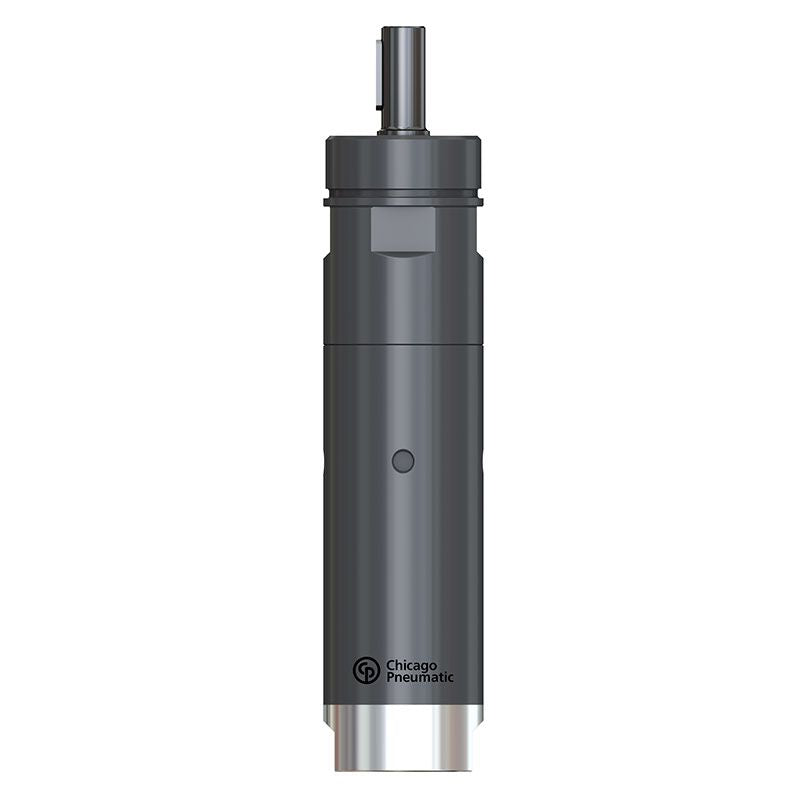

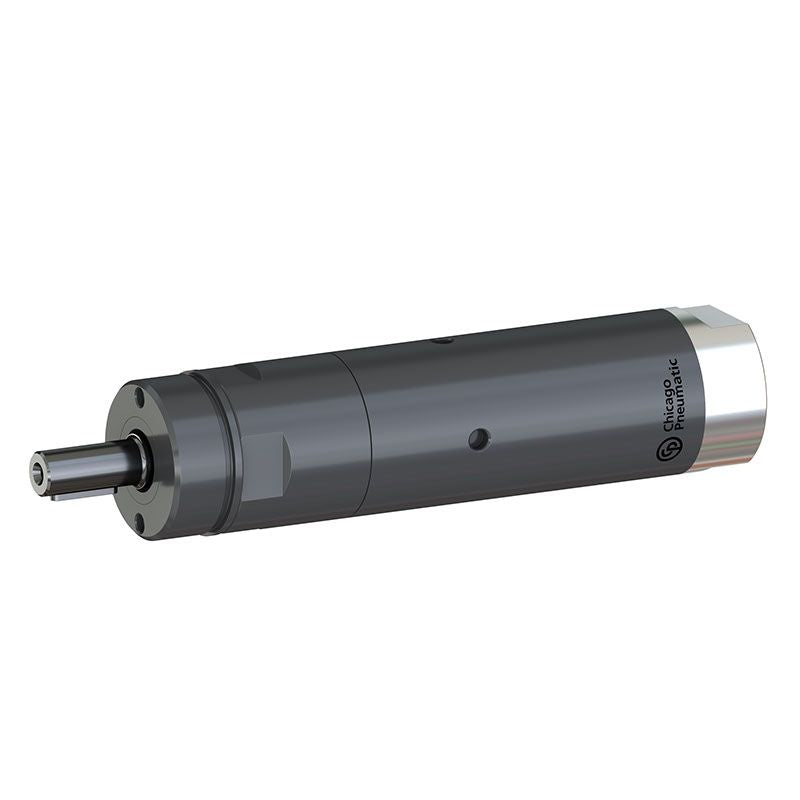

Chicago Pneumatic Air Motor M25-4700-KL ATEX โ 2051478234
Regular price
$1,619.67 CAD
Model / Part #2051478234
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
Free shipping on tools over $299.99Under $299.99, shipping is calculated at checkout · Shipping details
Standard vane air motor
0.36 hp non-reversible vane air motor, 4700 rpm free speed, ATEX certified
Features
- Compact design
- Lightweight
- Keyed shaft spindle
- Non-reversible air motor
- Low friction and lubrication-free design
- Short and compact planetary gear system
- Strong starting torque
- Long lasting efficiency with low air consumption
Specifications
| Max Power | 250 W (0.36 hp) |
| Max Torque | 2.4 Nm (1.8 ft.lbs) |
| Free Speed | 4700 rpm |
| Air Consumption at Load | 11 cfm |
| Max Dynamic Air Working Pressure | 90 psi |
| Index of Protection (IP Code) | IP66 |
| Weight | 1.21 lb |
| Output Spindle Size | 0.39 in |
| Spindle Type | Keyed shaft |
| CP part # | 2051478234 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 2051478234
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
