Chicago Pneumatic Air Motor M25-21500-KL ATEX โ 2051478224
0.36 hp non-reversible vane air motor, 21500 rpm free speed, ATEX certified

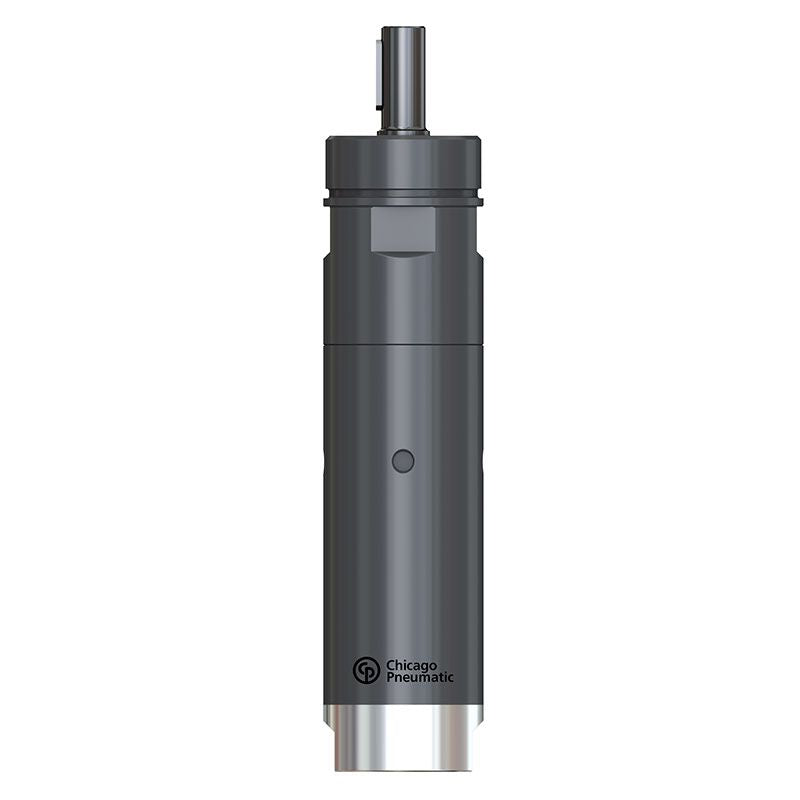

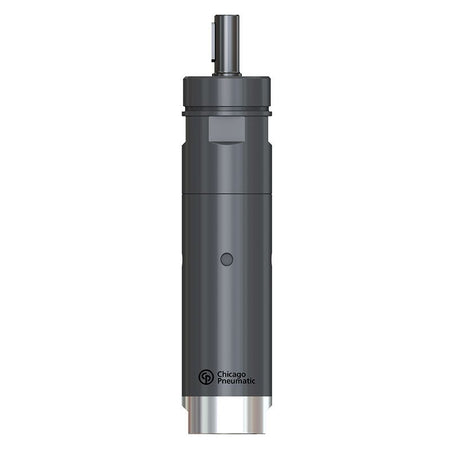

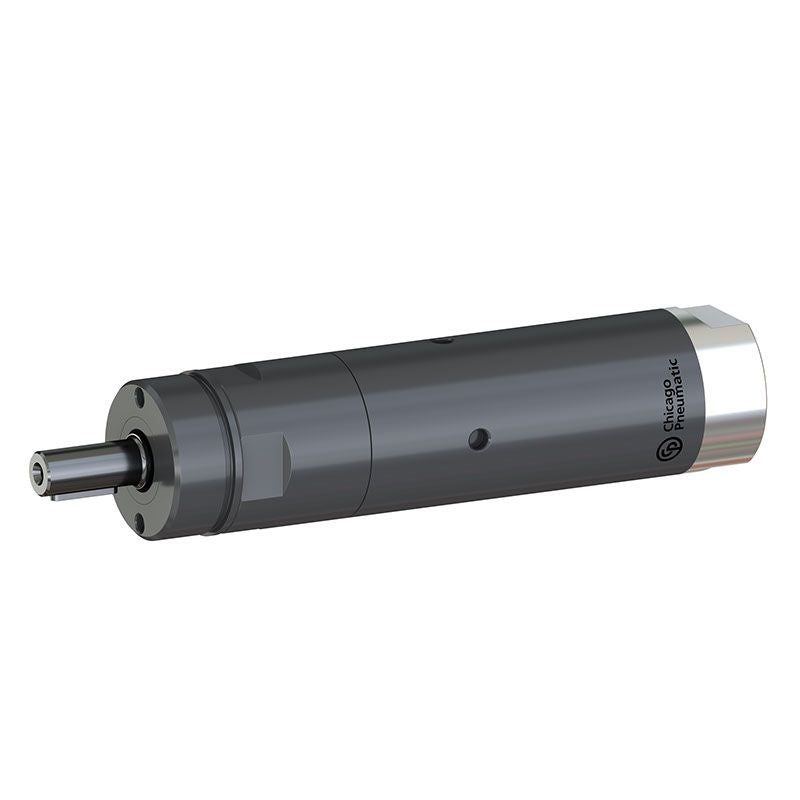

The standard pneumatic vane motors M25-21500-KL-ATEX is compact in design, light in weight, suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.36 hp), with a maximum torque of 0.54 Nm (0.4 ft.lbs) and 21500 rpm free speed. It is ATEX certified for gas and dust safety standards.
Features
- Compact design
- Lightweight
- Non-reversible air motor
- Keyed shaft spindle
- ATEX certified
Specifications
| Max Output Power | 0.36 hp |
| Max Free Speed | 21500 rpm |
| Max Torque | 0.54 Nm (0.4 ft.lbs) |
| Air Inlet Thread Size | 1/8 |
| Air Consumption at Load | 11 cfm |
| Weight | 1.21 lb (645 g) |
| Package Dimensions | 20.5 x 11 x 6 cm |
| Max Dynamic Air Working Pressure | 90 psi |
| Index of Protection (IP code) | IP66 |
| CP part # | 2051478224 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
