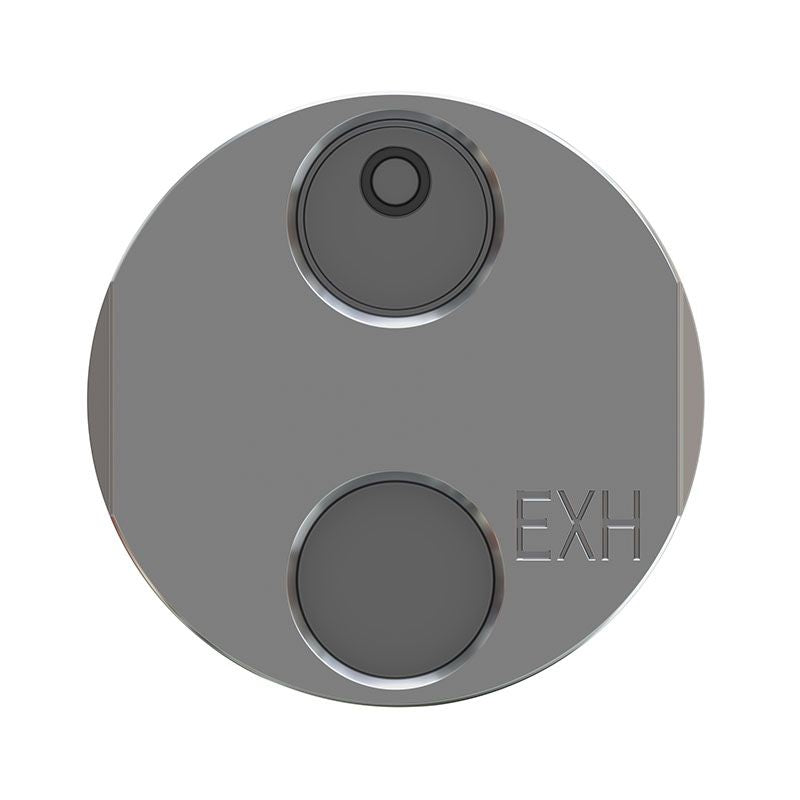

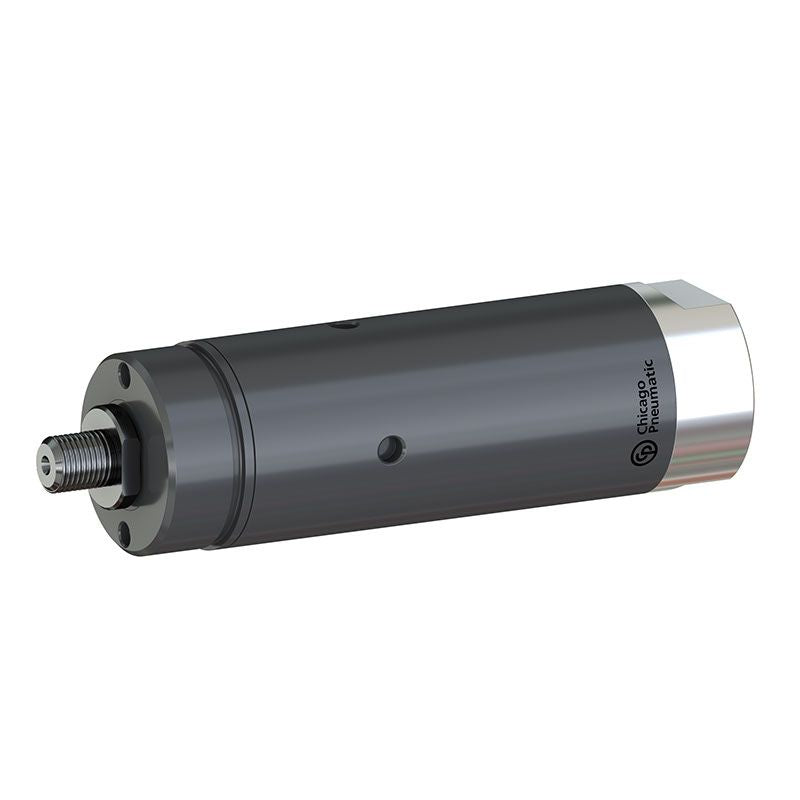

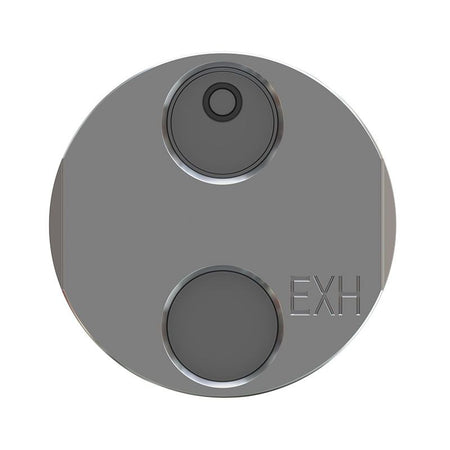

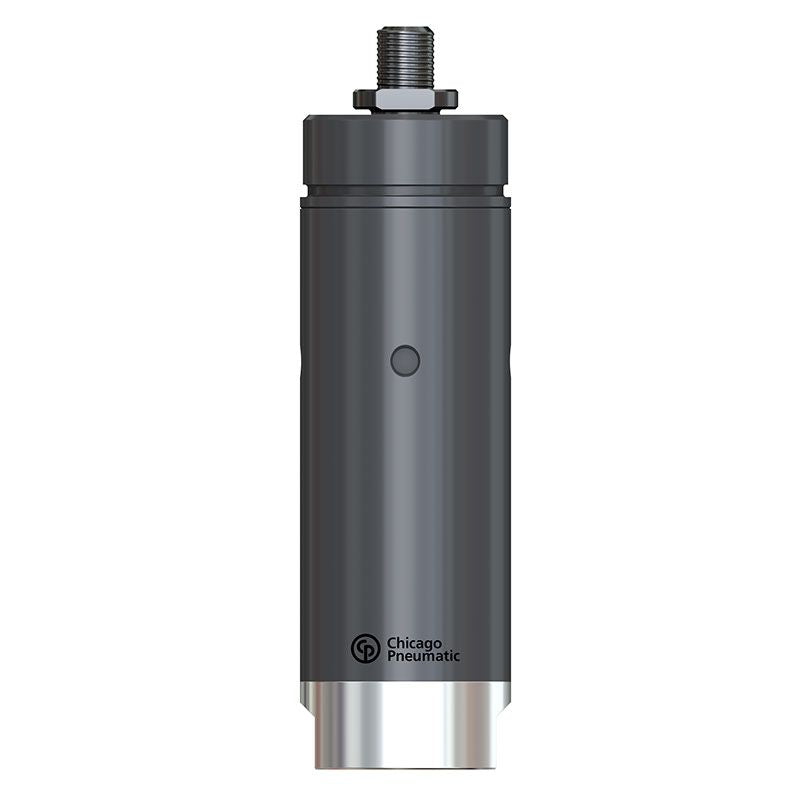

Chicago Pneumatic Air Motor M25-2100-TL ATEX โ 2051478324
0.36 hp non-reversible vane air motor, 2100 rpm free speed, ATEX certified
The standard pneumatic vane motors M25-2100-TL-ATEX is compact in design, light in weight, have Threaded shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.36 hp), with a maximum torque of 5,4 Nm (4 ft.lbs) and 2100 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85ยฐC Db for dust
Features
- Low friction and lubrication-free design of vanes for ruggedness.
- Sustain stall torque loading indefinitely.
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Air consumption at load | 11 cfm |
| Air flow max power | 11 cfm |
| Air inlet thread size | 1/8 in |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Index of protection (IP code) | IP66 |
| Max free speed range | 2100 rpm |
| Minimum starting torque | 3.8 ft.lbf |
| Stall torque | 4 ft.lbf |
| Torque at max power | 2 ft.lbf |
| Max output power | 0.36 hp |
| Weight | 1.21 lb |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| Output Spindle Thread | 3/8-24 UNF |
| Rotation drive | Clockwise |
| Spindle type | Threaded shaft |
| CP part # | 2051478324 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
