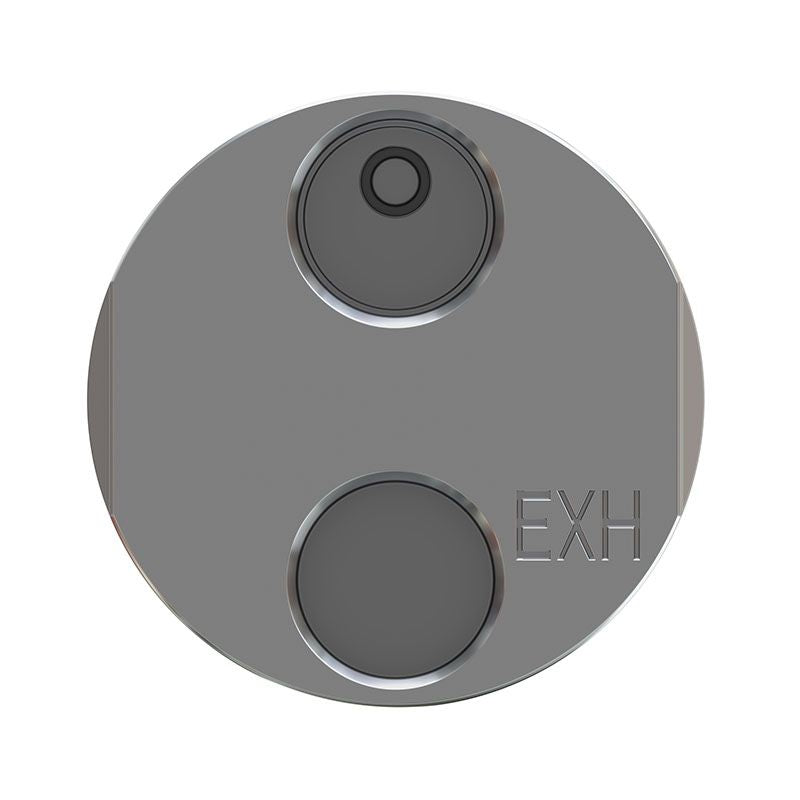

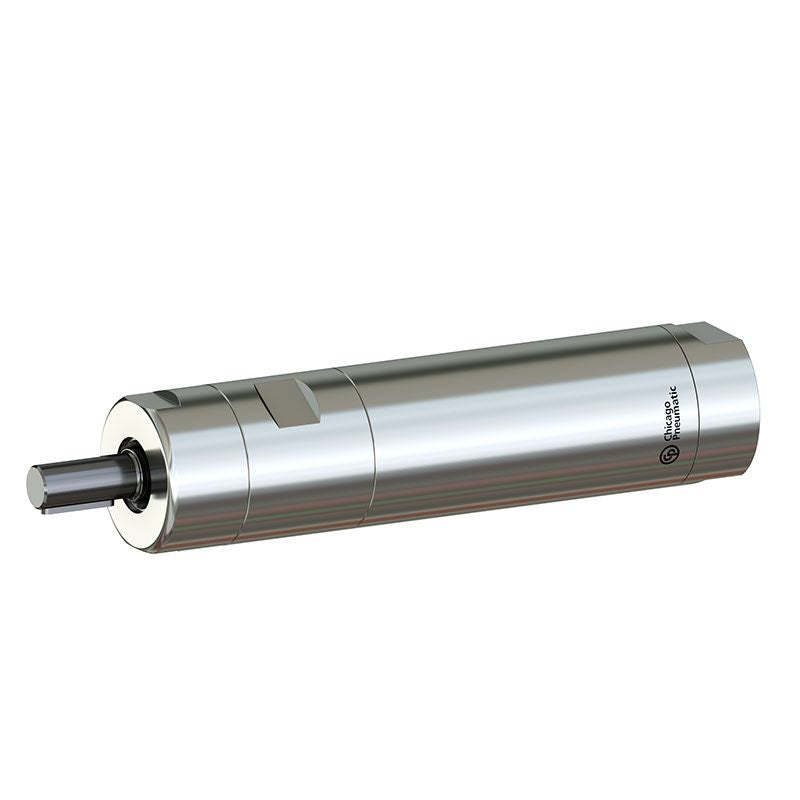

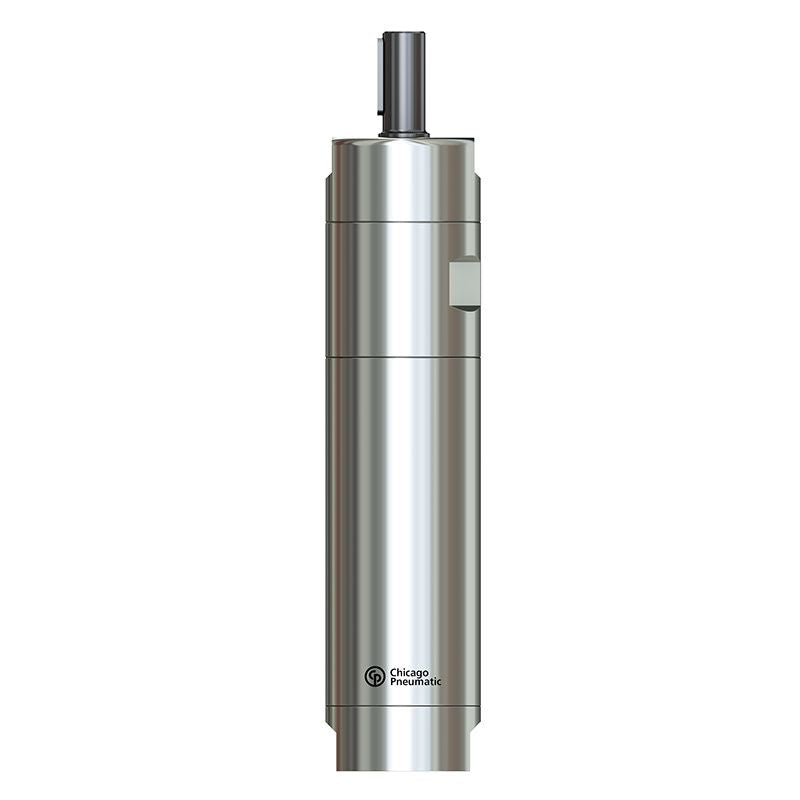

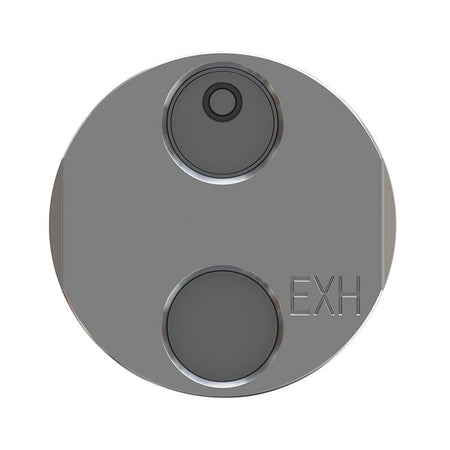

Chicago Pneumatic Air Motor M25-2100-KSL ATEX – 2051478464

Description

0.36 hp non-reversible stainless steel air motor, 2100 rpm free speed, ATEX

The stainless steel pneumatic vane motors M25-2100-KSL-ATEX is compact in design, light in weight, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment.

Features

• Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk
• Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely.
• Short and compact planetary gear system for versatile solutions
• Long lasting efficiency with low air consumption design
• Strong starting torque for mobility during operation

Specifications

Max free speed range	2100 rpm
Air consumption at load	11 cfm
Air flow max power	11 cfm
Air inlet thread size (in)	1/8
Air inlet thread type	BSP
Max dynamic air working pressure	90 psi
Minimum starting torque	3.8 ft.lbf
Stall torque	4 ft.lbf
Torque at max power	2 ft.lbf
Main Material type	Stainless steel
Motor Lubrication free	Yes
Rotation drive	Clockwise
Spindle type	Keyed shaft
Index of protection (IP code)	IP69,IP66,IP68
Max output power	0.36 hp
Output Spindle size	0.39 in
Weight	1.39 lb
CP part #	2051478464

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
