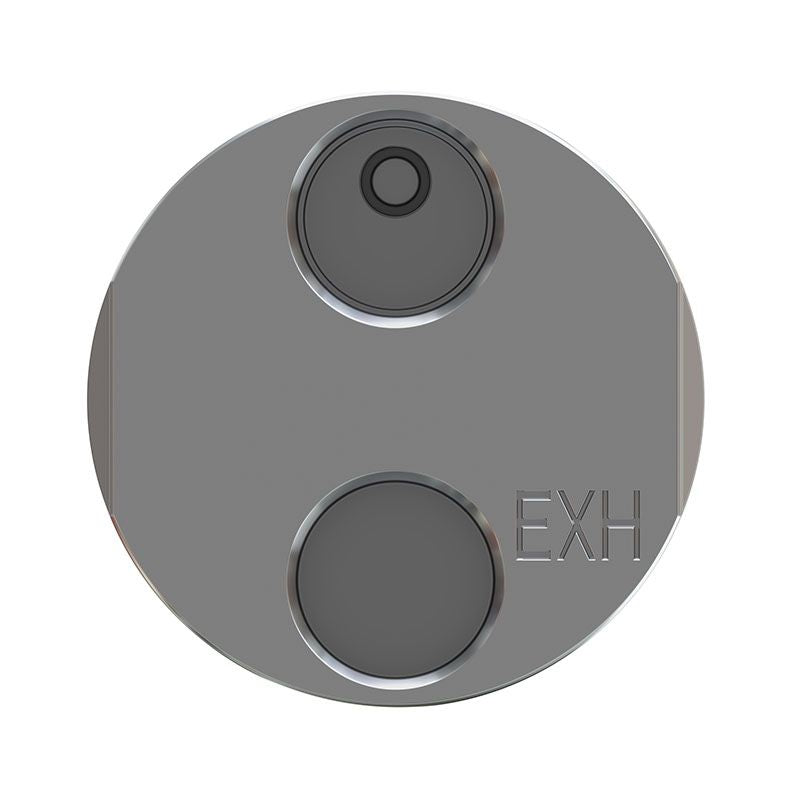

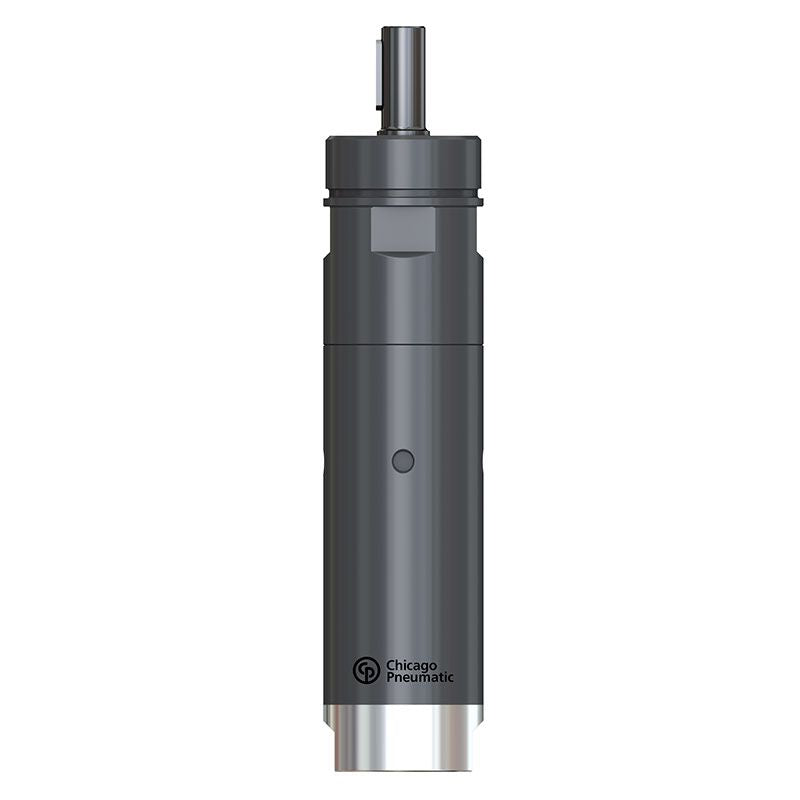

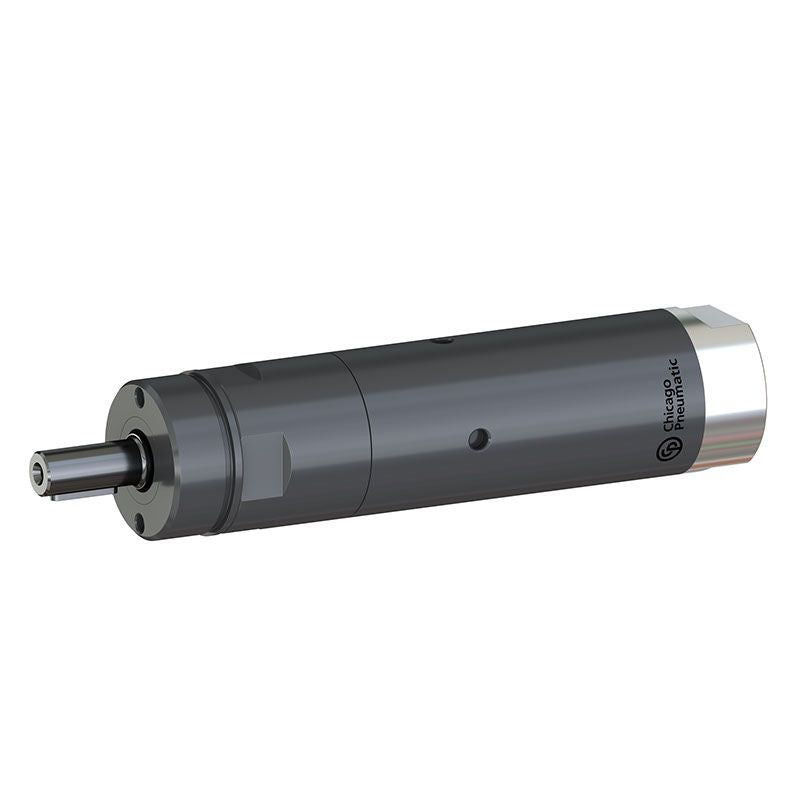

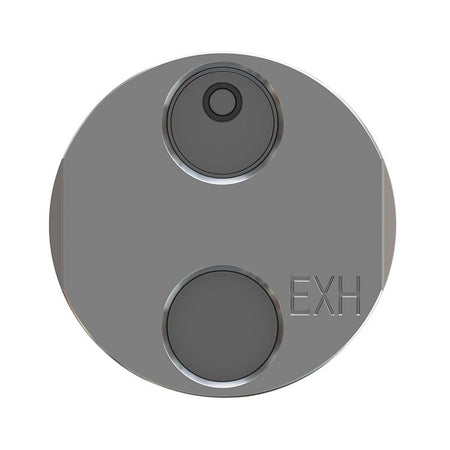

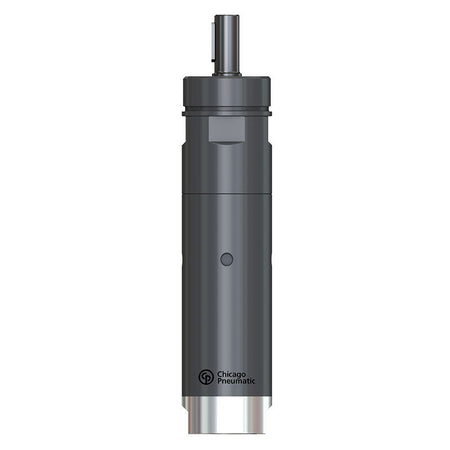

Chicago Pneumatic Air Motor M25-180-KL ATEX โ 2051481724
0.35 hp non-reversible vane air motor, 180 rpm free speed, ATEX certified
The standard pneumatic vane motors M25-180-KL-ATEX is compact in design, light in weight, lubrication free, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.35 hp), with a maximum torque of 18 Nm (17,6 ft.lbs) and 180 rpm free speed
Features
- Low friction and lubrication-free design of vanes for ruggedness.
- Sustain stall torque loading indefinitely.
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Output Spindle size | 0.39 in |
| Weight | 2.09 lb |
| Minimum starting torque | 0 ft.lbf |
| Stall torque | 0 ft.lbf |
| Torque at max power | 6.6 ft.lbf |
| Back Head Coaxial | No |
| Front nut threaded | Yes |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| Rotation drive | Clockwise |
| Shaft loading code | b |
| Spindle type | Keyed shaft |
| Max output power | 0.35 hp |
| ATEX | Yes |
| Index of protection (IP code) | IP66 |
| Max free speed range | 180 rpm |
| Air consumption at load | 12 cfm |
| Air flow max power | 12 cfm |
| Air inlet thread size (in) | 1/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| CP part # | 2051481724 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 2051481724
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
