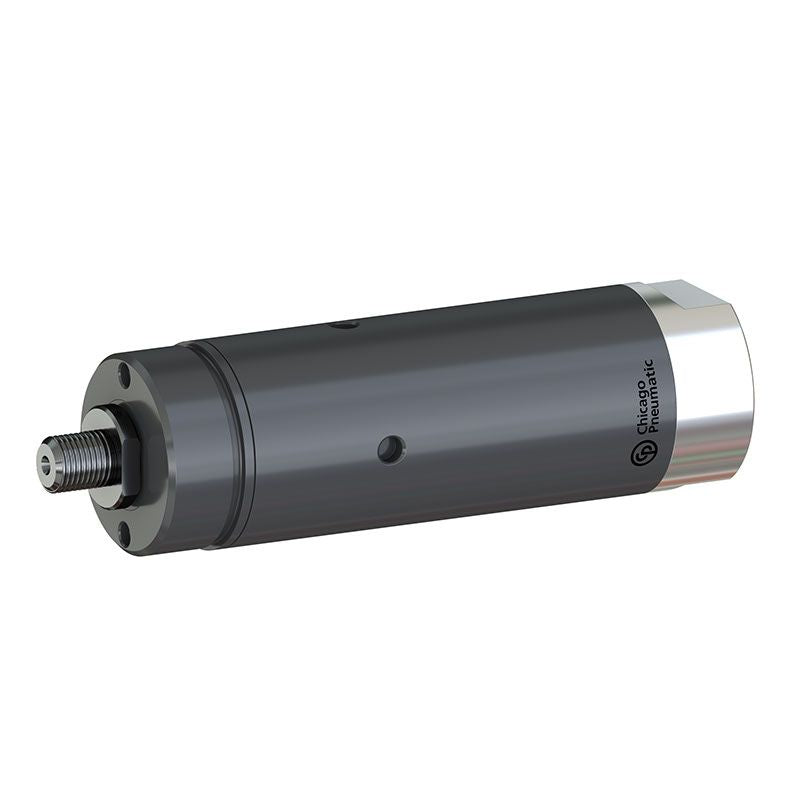

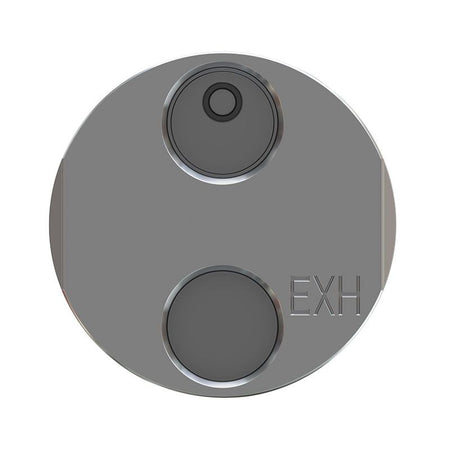

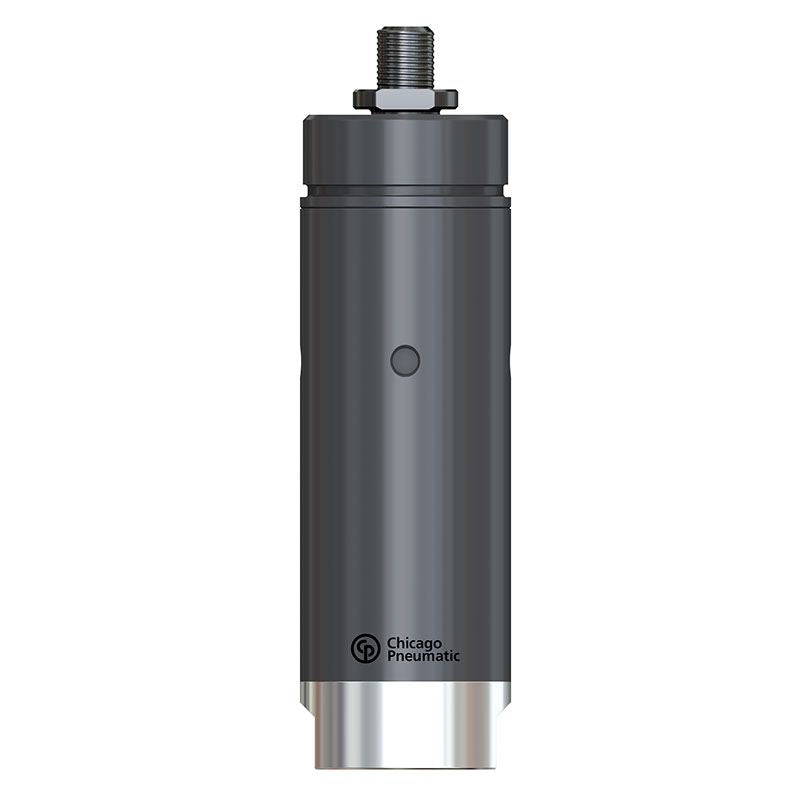

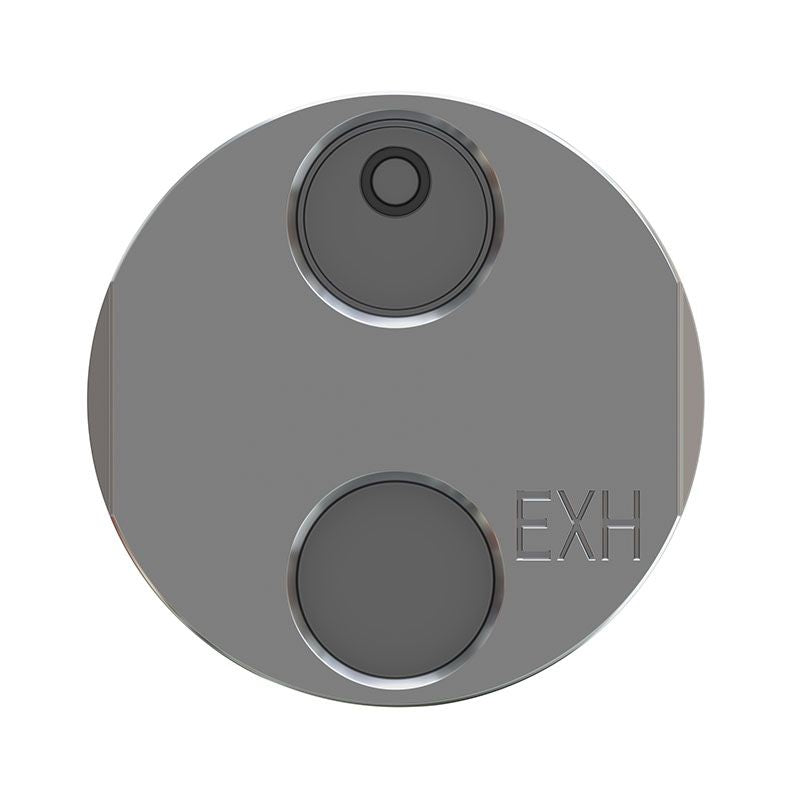

Chicago Pneumatic Air Motor M25-1040-TL ATEX โ 2051478334
0.35 hp non-reversible vane air motor, 1040 rpm free speed, ATEX certified
The standard pneumatic vane motors M25-1040-TL-ATEX is compact in design, light in weight, have Threaded shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.35 hp), with a maximum torque of 10,6 Nm (7.8 ft.lbs) and 1040 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85ยฐC Db for dust
Features
- Low friction and lubrication-free design of vanes for ruggedness.
- Sustain stall torque loading indefinitely.
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Max output power | 0.35 hp |
| Max free speed range | 1040 rpm |
| Air consumption at load | 11 cfm |
| Air inlet thread size (in) | 1/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Minimum starting torque | 7.4 ft.lbf |
| Stall torque | 7.8 ft.lbf |
| Torque at max power | 3.9 ft.lbf |
| Weight | 1.65 lb |
| Index of protection (IP code) | IP66 |
| Output Spindle Thread | 3/8-24 UNF |
| Spindle type | Threaded shaft |
| Rotation drive | Clockwise |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| CP part # | 2051478334 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
