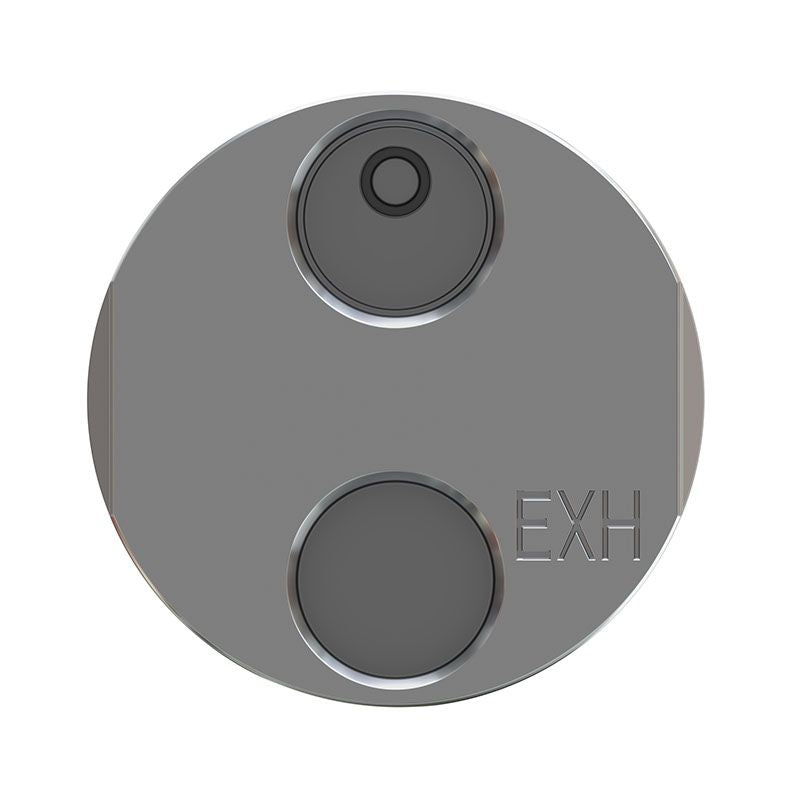

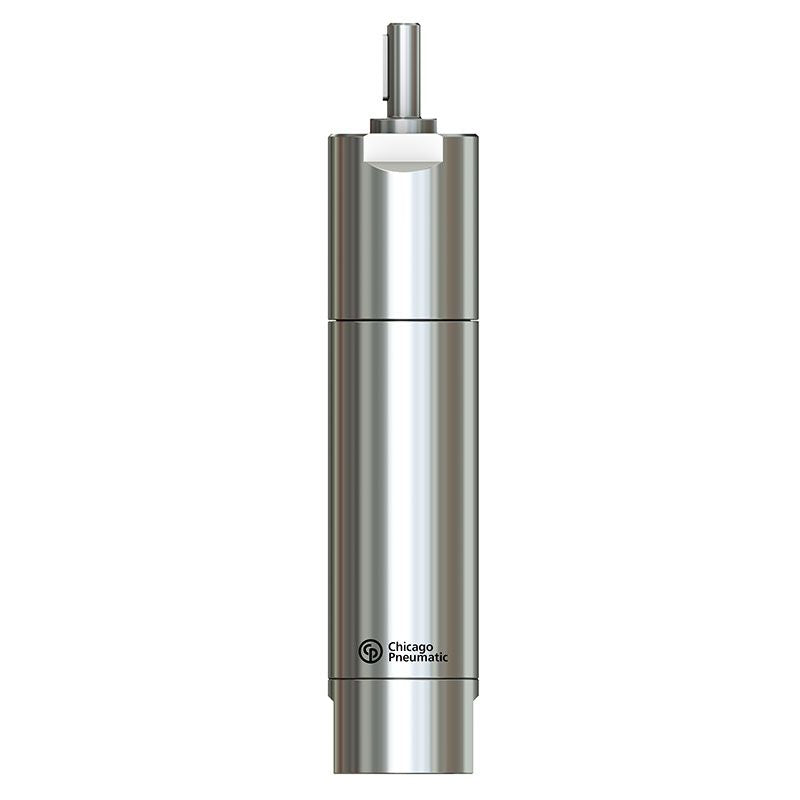

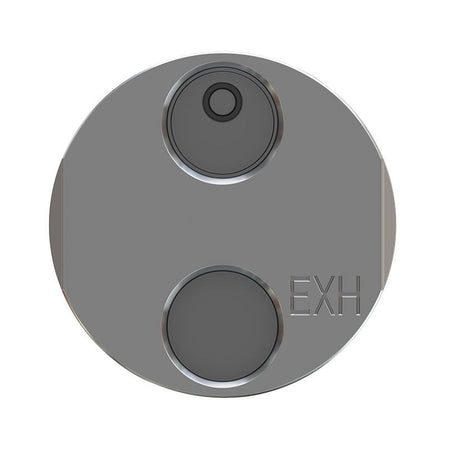

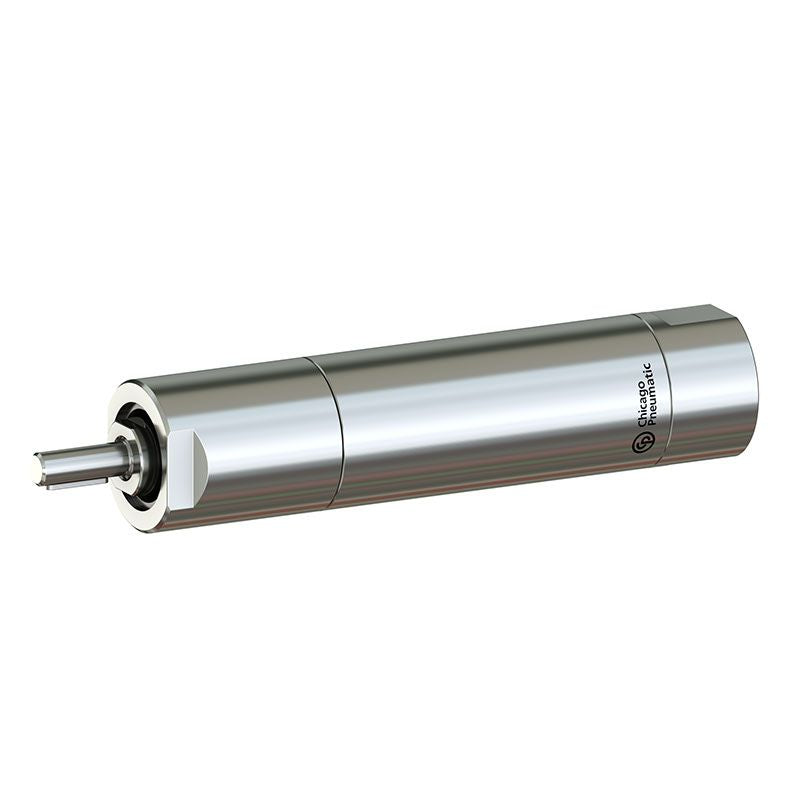

Chicago Pneumatic Air Motor M16-700-KSL ATEX โ 2051479064
0.21 hp non-reversible stainless steel air motor, 700 rpm free speed, ATEX
The stainless steel pneumatic vane motors M16-700-KSL-ATEX is compact in design, light in weight, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 160 W (0.21 hp), with a maximum torque of 9,6 Nm (7.1 ft.lbs) and 700 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85ยฐC Db for dust
Features
- Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk
- Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely.
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Max free speed range | 700 rpm |
| Air consumption at load | 8.5 cfm |
| Air flow max power | 8.5 cfm |
| Air inlet thread size (in) | 1/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Minimum starting torque | 6.3 ft.lbf |
| Stall torque | 7.1 ft.lbf |
| Torque at max power | 3.5 ft.lbf |
| Back Head Coaxial | No |
| Front nut threaded | No |
| Main Material type | Stainless steel |
| Motor Lubrication free | Yes |
| Rotation drive | Clockwise |
| Shaft loading code | a |
| Spindle type | Keyed shaft |
| Starting system | None |
| Index of protection (IP code) | IP68,IP66,IP69 |
| Max output power | 0.21 hp |
| Output Spindle size | 0.24 in |
| Weight | 0.88 lb |
| CP part # | 2051479064 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
