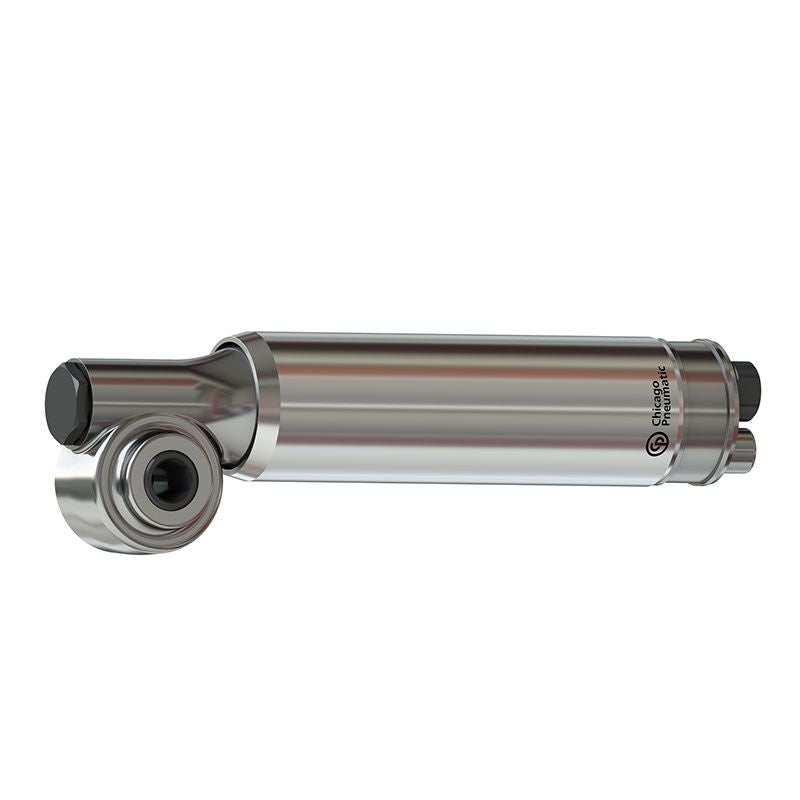

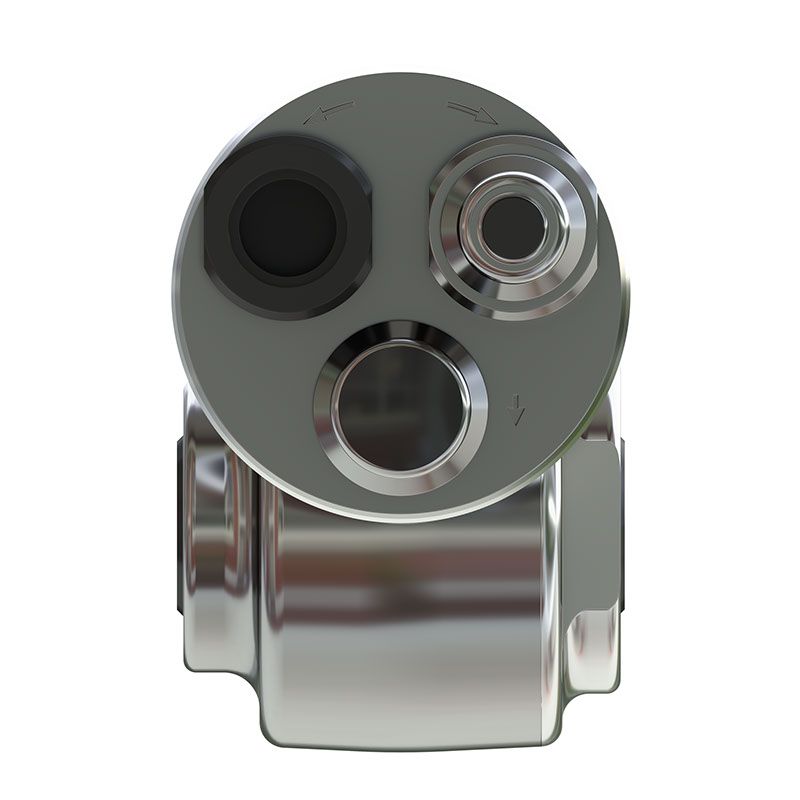

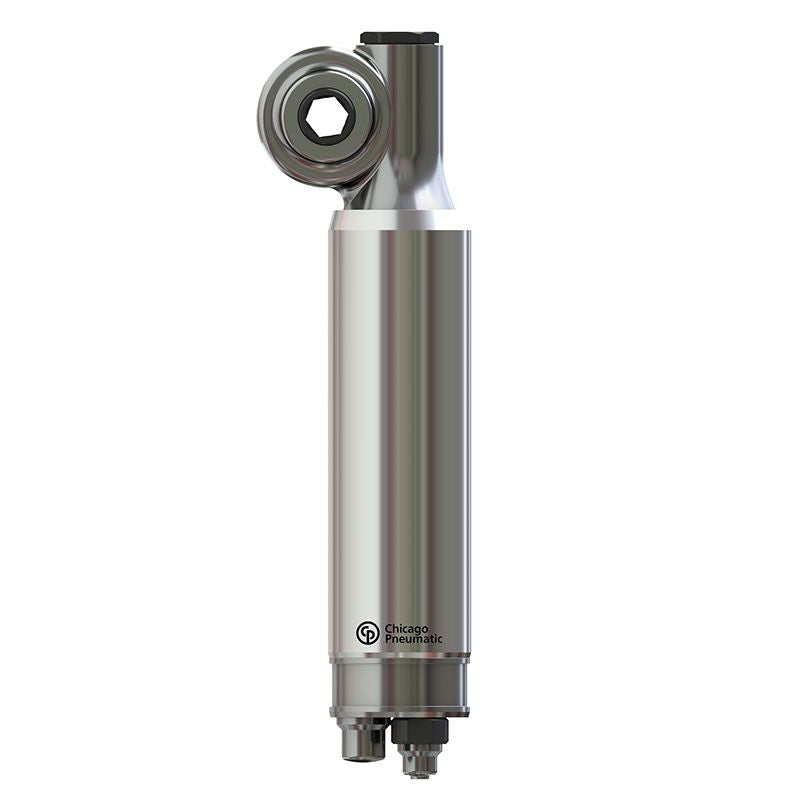

Chicago Pneumatic Air Motor 2H410-90 ATEX โ 2051473224
0.89 hp Reversible vane air motor, 90 rpm free speed, ATEX certified
The standard pneumatic vane motors 2H410-90-ATEX is compact in design, light in weight, have Hexagonal shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 660 W (0.89 hp), with a maximum torque of 204 Nm (75.2 ft.lbs) and 90 rpm free speed
Features
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Air consumption at load | 21 cfm |
| Air inlet thread size | 1/4 in |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Max free speed range | 90 rpm |
| Minimum starting torque | 75.2 ft.lbf |
| Max output power | 0.89 hp |
| Weight | 4.41 lb |
| Main Material type | Steel |
| Rotation drive | Reversible |
| Spindle type | Hexagonal |
| CP part # | 2051473224 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 2051473224
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
