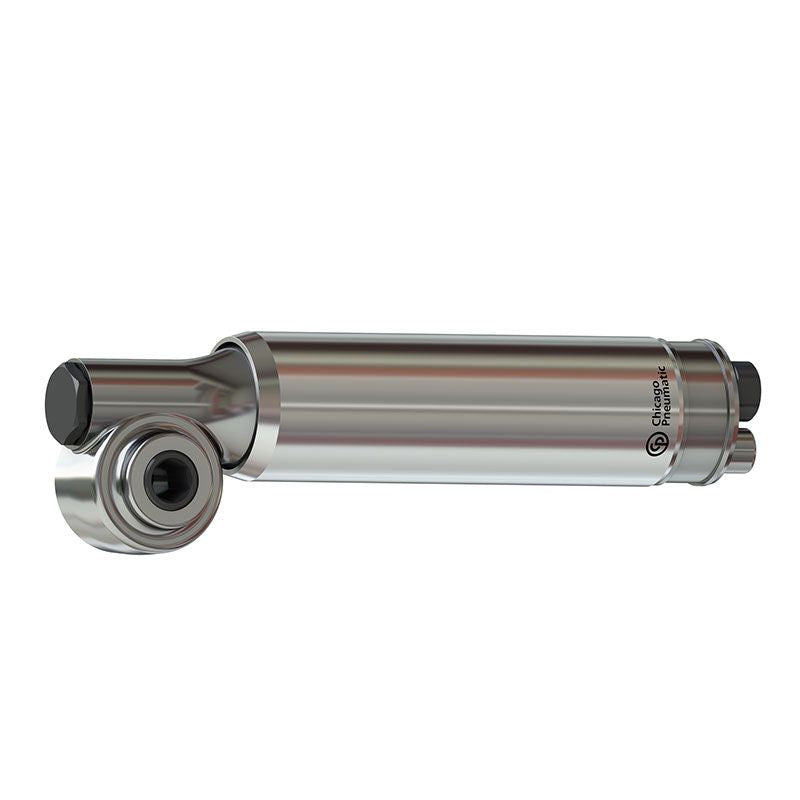

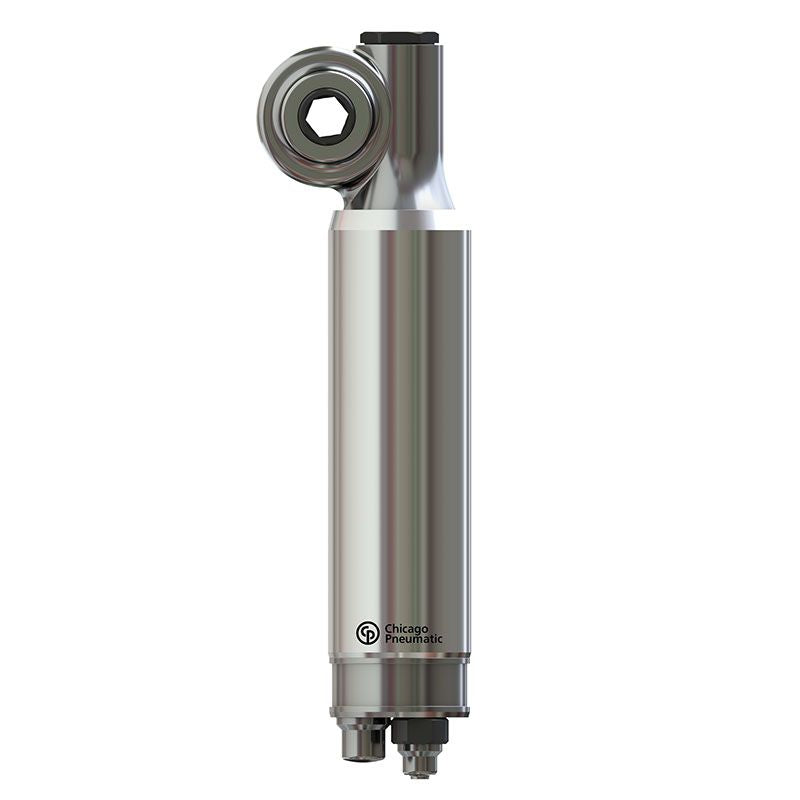

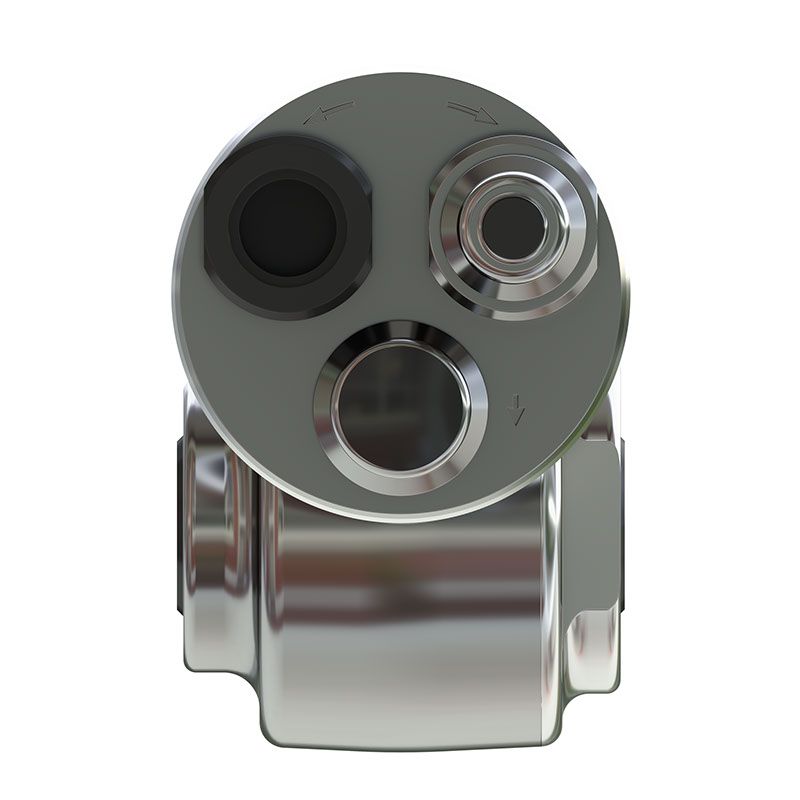

Chicago Pneumatic Air Motor 2H410-60 ATEX โ 2051473234
0.89 hp Reversible vane air motor, 60 rpm free speed, ATEX certified
The standard pneumatic vane motors 2H410-60-ATEX is compact in design, light in weight, have Hexagonal shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 660 W (0.89 hp), with a maximum torque of 204 Nm (75.2 ft.lbs) and 60 rpm free speed
Features
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications
| Air consumption at load | 19 cfm |
| Air flow max power | 19 cfm |
| Air inlet thread size | 1/4 in |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max free speed range | 60 rpm |
| Minimum starting torque | 75.2 ft.lbf |
| Stall torque | 0 ft.lbf |
| Torque at max power | 75.2 ft.lbf |
| Max output power | 0.89 hp |
| Weight | 4.41 lb |
| Back Head Coaxial | No |
| Front nut threaded | No |
| Main Material type | Steel |
| Motor Lubrication free | No |
| Rotation drive | Reversible |
| Spindle type | Hexagonal |
| Starting system | None |
| CP part # | 2051473234 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
