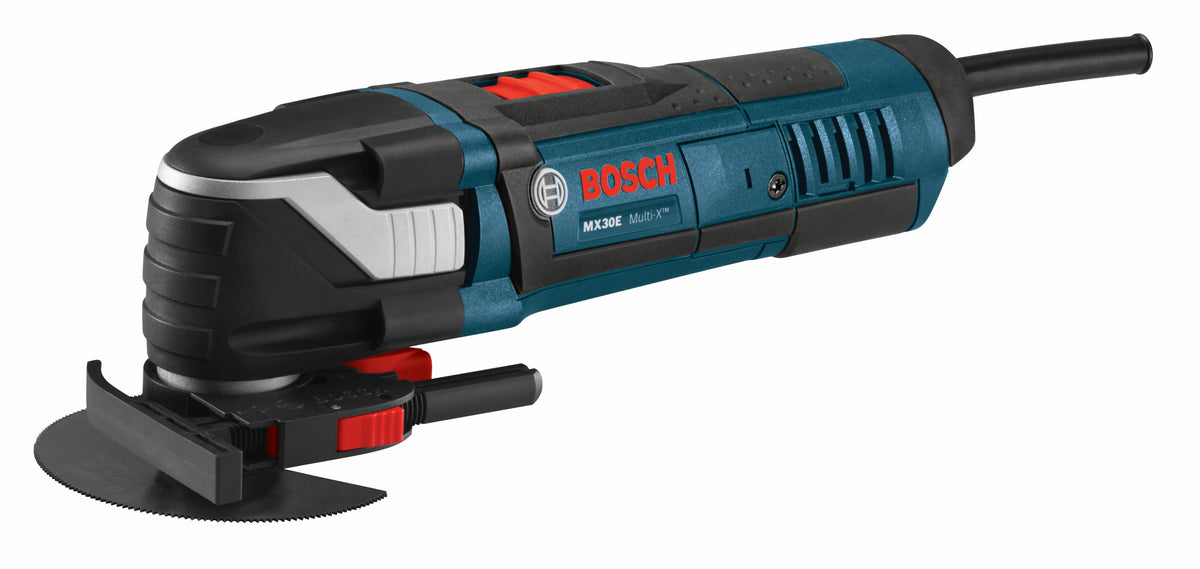

The OSC004 depth stop kit makes it possible to control the depth-of-cut when using the Bosch GOP-series Starlock® Oscillating Multi-Tools. It works with the Bosch GOP12V-28, GOP18V-28, GOP40-30 and GOP55-36. It also works with the Bosch MX30E and MXH180 Oscillating Multi-Tools. It allows the cutting depth to be set from 1 mm to 41 mm when using typical plunge-cut blade. It also allows cutting depth to be set from 1 mm to 16 mm when using 3.5 In. segment blade. The kit's clamp bracket and stops can be mounted, adjusted and removed without tools. The OSC004 is compatible only with the GOP-series Starlock® Oscillating Multi-Tools and MX30E and MXH180 Oscillating Multi-Tools.
Features
- Plunge cut control – allows cutting depth to be set from 1 mm to 41 mm when using typical plunge-cut blade
- Segment blade control – allows cutting depth to be set from 1 mm to 16 mm when using 3.5 In. segment blade
- Toolless system – provides mounting and adjustment of kit bracket and stops without tools
- Widely compatible – can be used with Bosch GOP-series Starlock® Oscillating Multi-Tools and MX30E and MXH180 Oscillating Multi-Tools
Specifications
| Accessory Type | Oscillating Tool Depth Stop Kit |
| Material | Glass-Filled Nylon |
| Size in | Allows cutting depth to be set from 1 mm to 41 mm when using typical plunge-cut blade Allows cutting depth to be set from 1 mm to 16 mm when using 3.5” segment blade |
| Model | OSC004 |
| Bosch 10-digit # | 1600A001WL |
| UPC | 000346459838 |
| Shipping weight | 0.2 lb |
| Country of origin | Hungary |

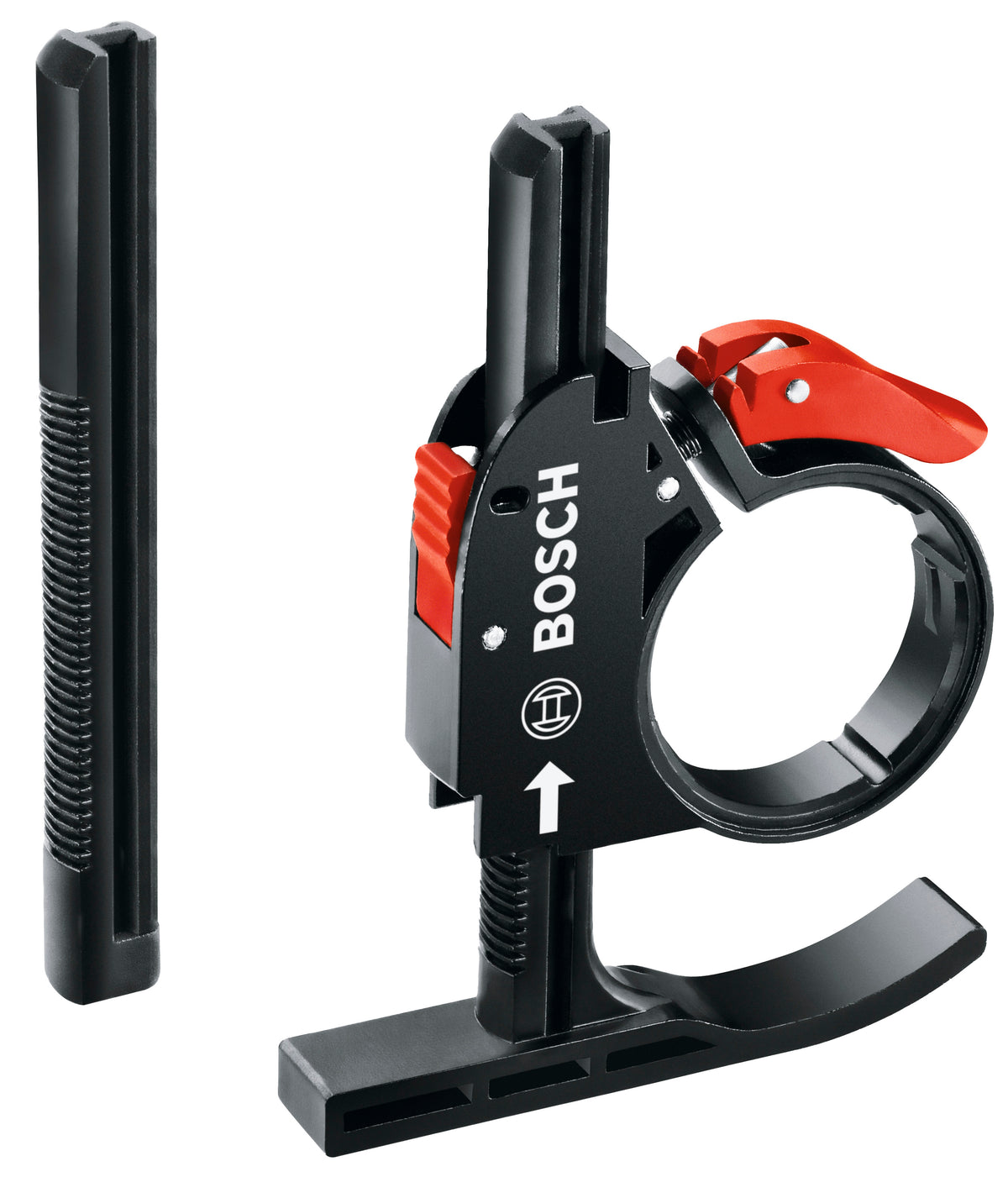

Included
Mounting Bracket
