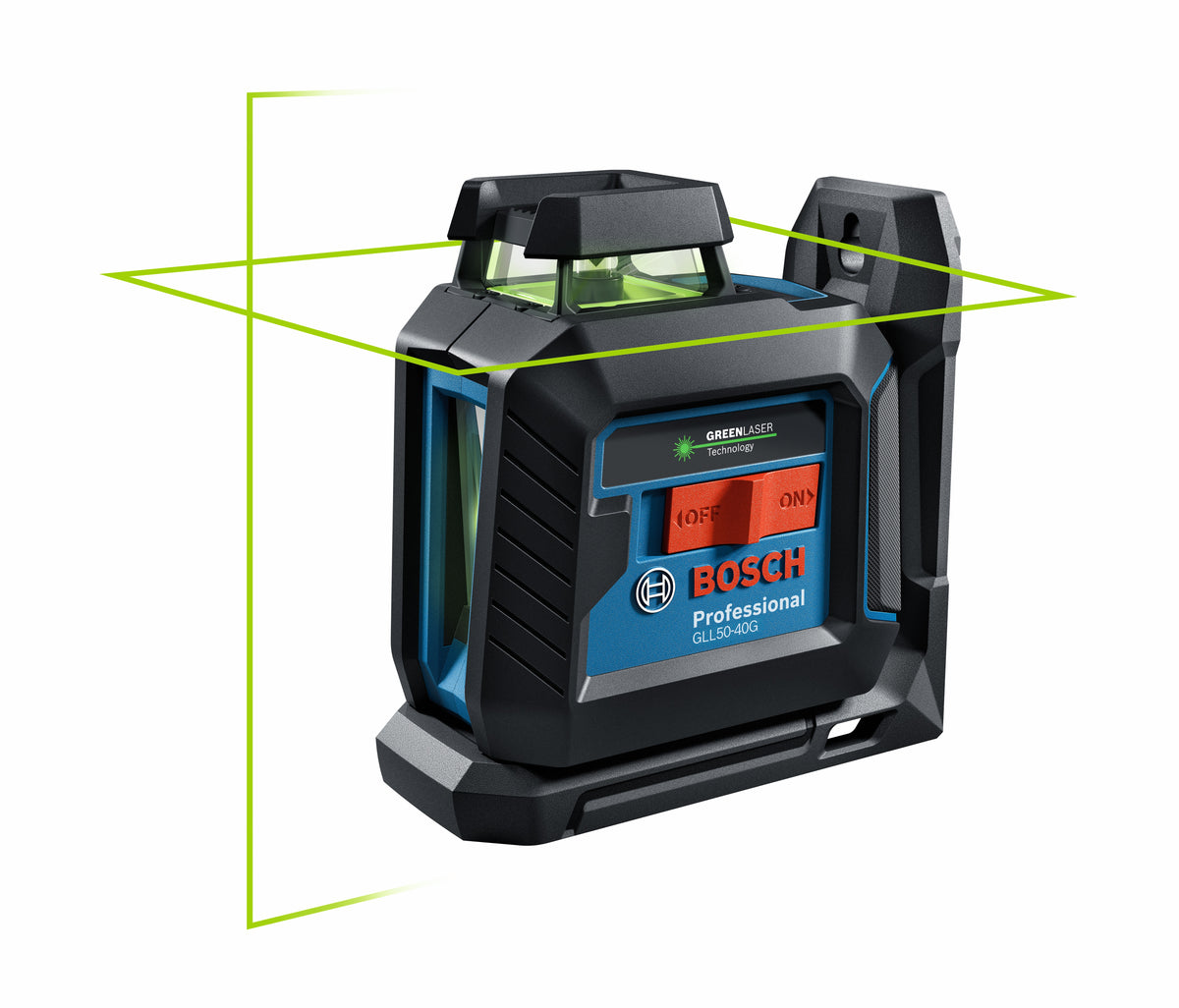

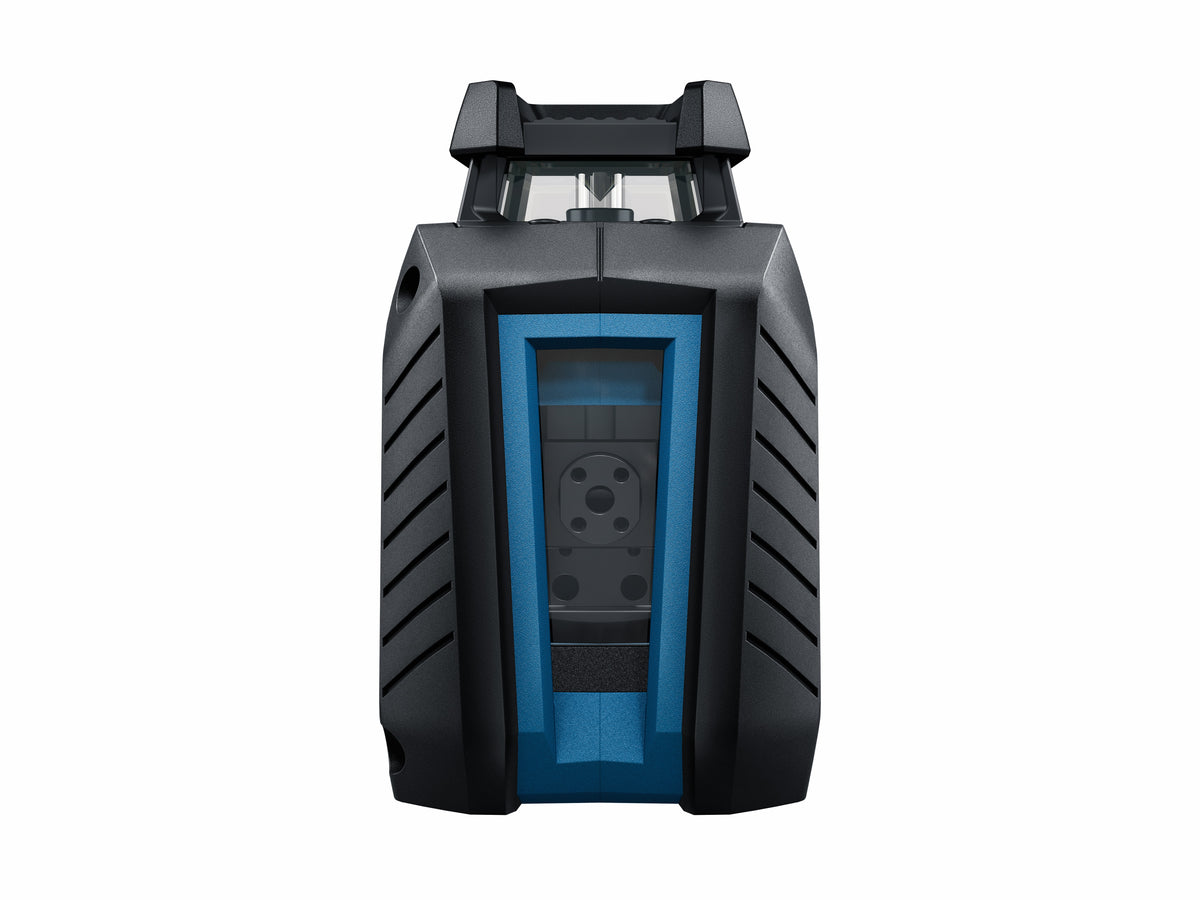

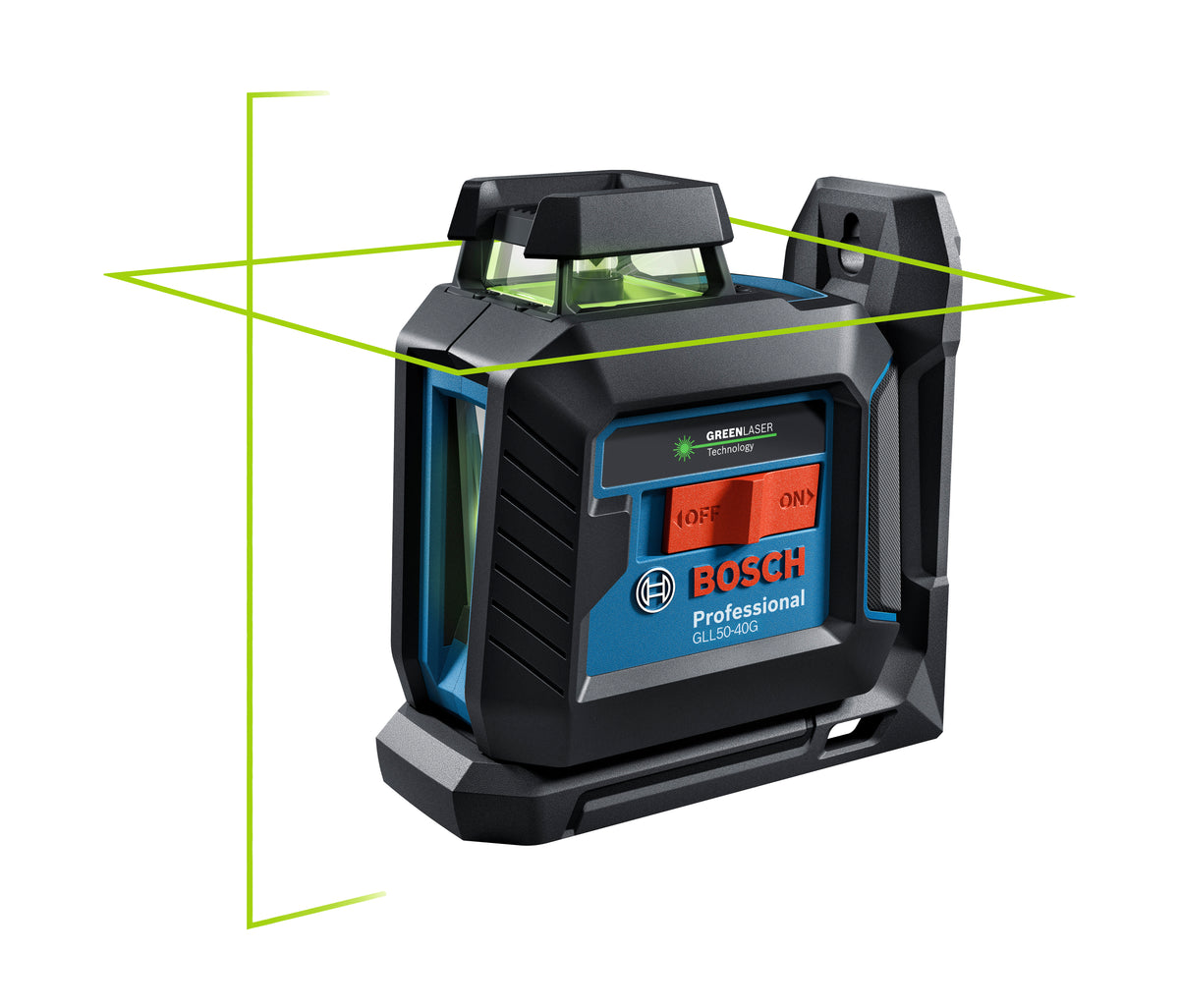

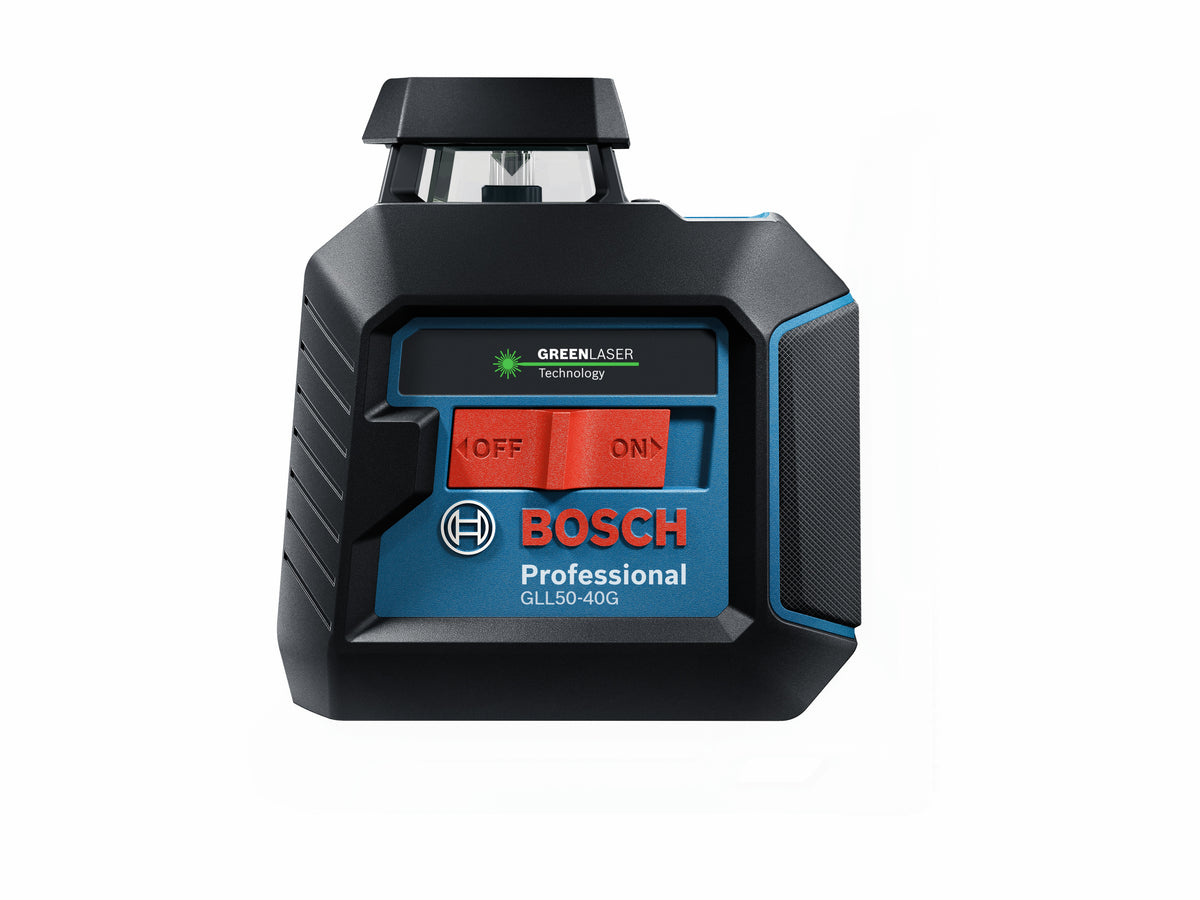

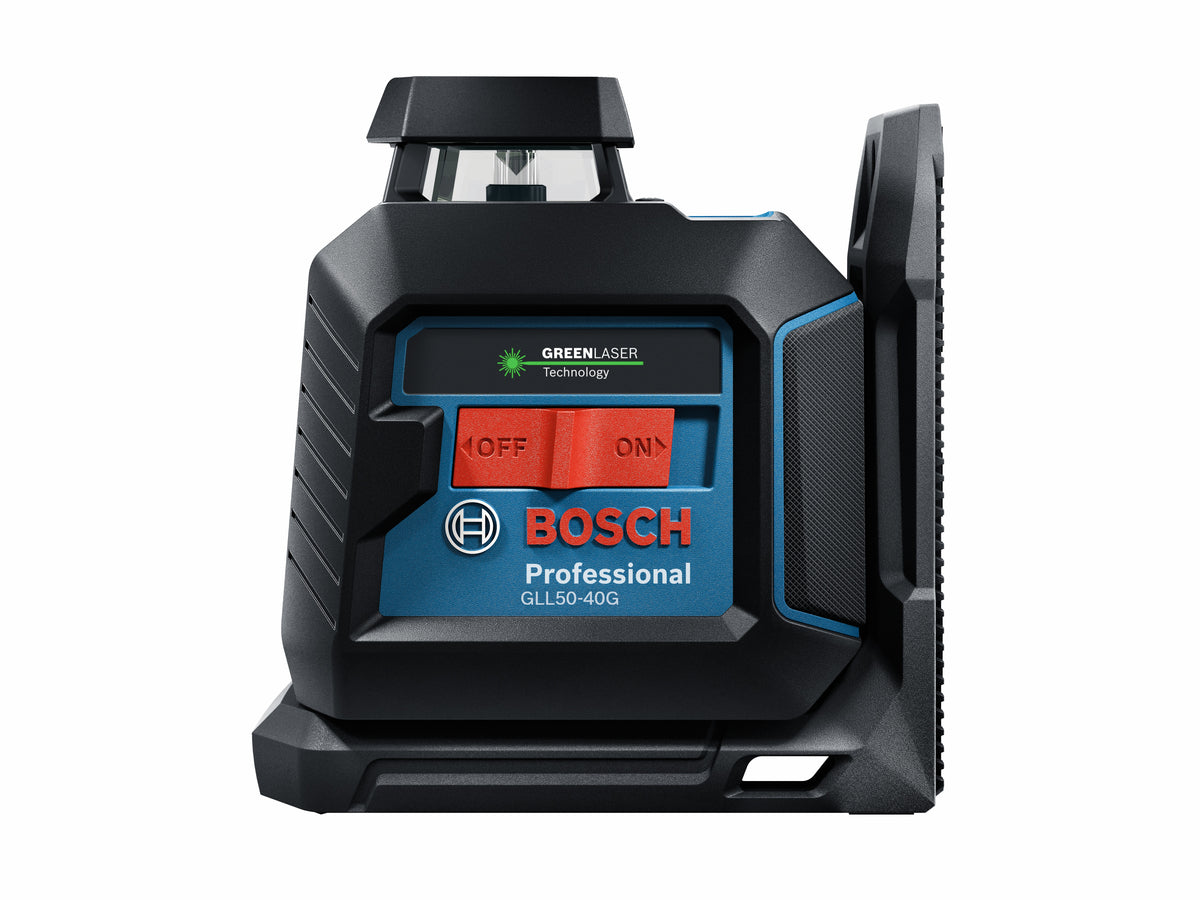

The Bosch GLL50-40G Green-Beam Self-Leveling 360° Cross-Line Laser uses green-beam technology, which emits green lines up to 4X brighter than standard red beams. This gives the laser a working range of up to 100 Ft. in diameter. The laser produces vertical line, 360° horizontal plane and cross-line modes, for a broad array of alignment and leveling applications. It provides 360° coverage to level with one setup point for an entire room. The tool has full rubber overmold housing, designed to be similar to a roll cage, so major impact points are reinforced with rubber. It has an IP64 rating and features deeply recessed windows help protect the laser glass. The one-button onboard user interface allows easy selection among the layout modes. The two-position recessed switch provides additional protection of the switch mechanism. The Bosch Smart Pendulum System self-levels and indicates out-of-level condition, and it locks the pendulum for secure transport. The included LB10 L-Bracket and DK10 ceiling clip offer quick setup and extra-strong magnets.
Features
- Versatile layout – vertical line and 360° horizontal plane can be projected separately or together for a variety of applications
- 360° coverage – level with one setup point for an entire room at a working range of 100 Ft. in diameter
- Bright green-beam laser — up to 4X brighter than standard red beams
- Full rubber overmold housing – helps to protect major impact points, with a design similar to a roll cage
- Smart Pendulum System – allows tool to self-level, and it indicates out-of-level condition
- Secure laser transport – after switching off, pendulum is locked
Specifications
| Accurate to Within __ in per 100 ft | 0.5625 |
| Automatic Operation | Yes |
| Indoor / Outdoor | Indoor/Outdoor |
| Laser Level Mounting Method | Wall or Tripod |
| Laser Level Type | Cross-Line |
| LED Display | Yes |
| Legs Included | No |
| Maximum Distance (ft) | 100 |
| Projects Beam 360 degrees | Yes |
| Laser Beam Color | Green |
| Model | GLL50-40G |
| Bosch 10-digit # | 0601065010 |
| UPC | 000346657050 |
| Shipping weight | 4.11 lb |
| Country of origin | China |
Included
(1) GLL50-40G Green-Beam Self-Leveling 360° Cross-Line Laser
