The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw's 15 Amp motor delivers no-load speeds of 4,000 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.
Features

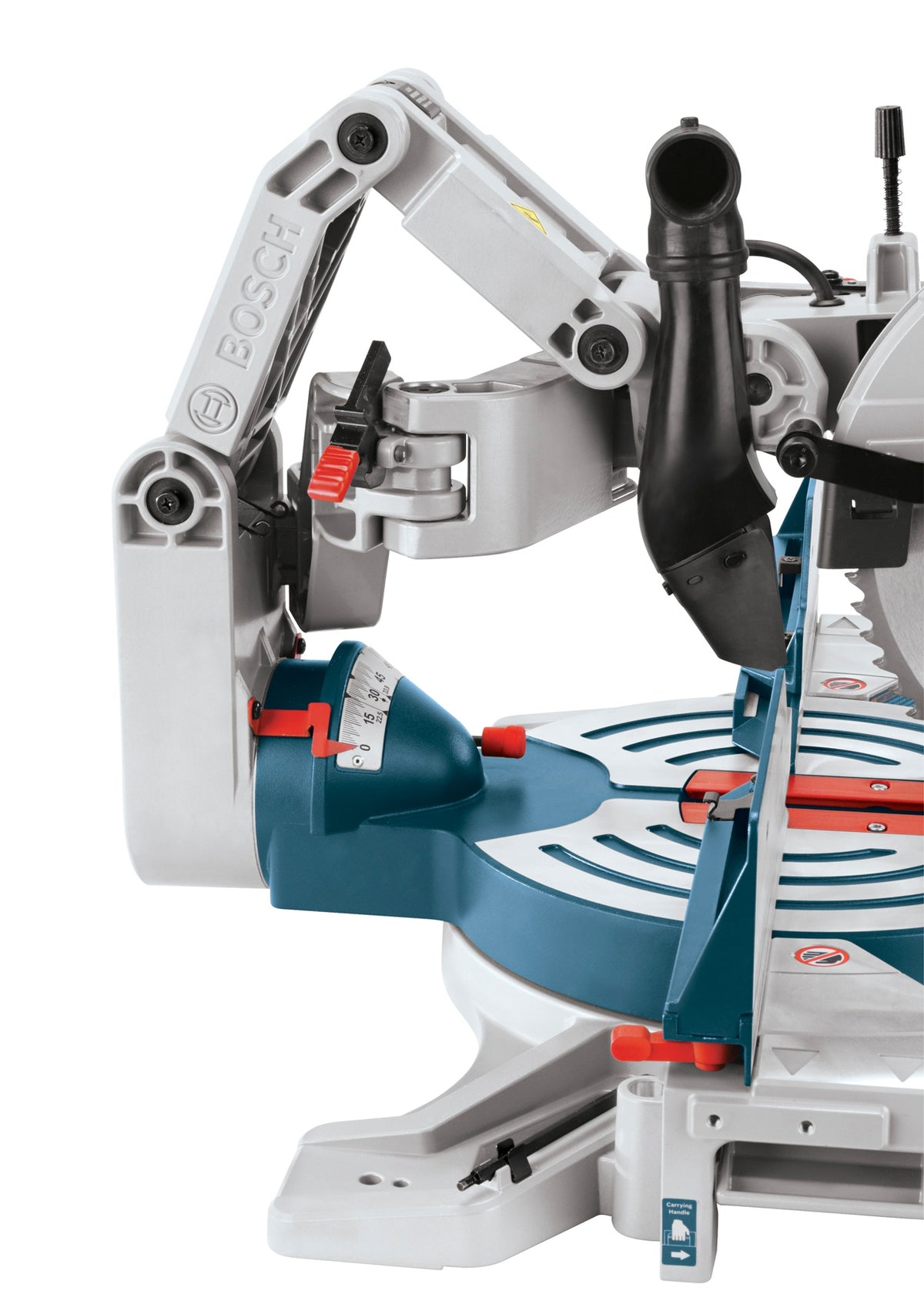

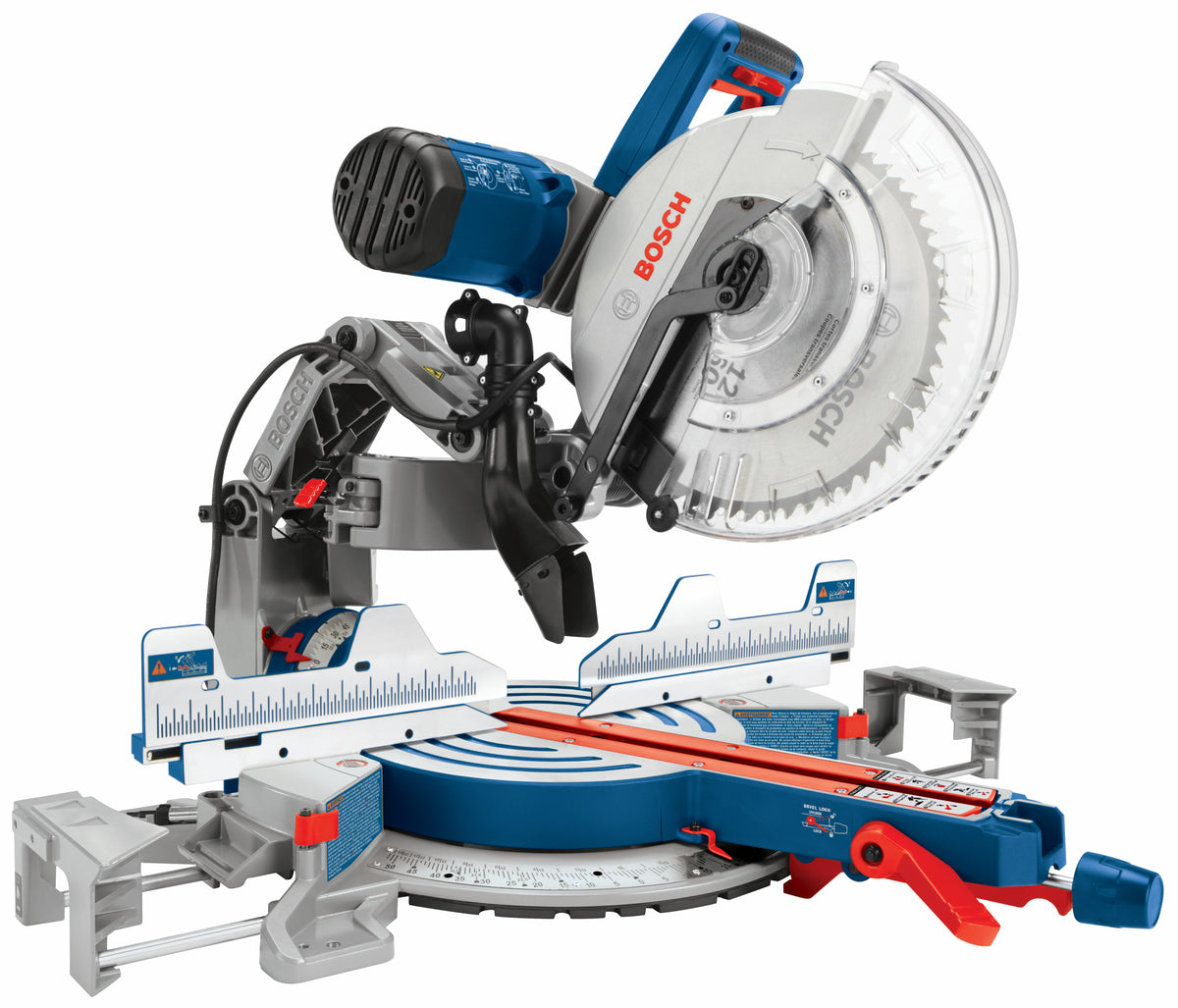

- The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide system
- Pre-aligned SquareLock fences help the saw maintain precision throughout its life

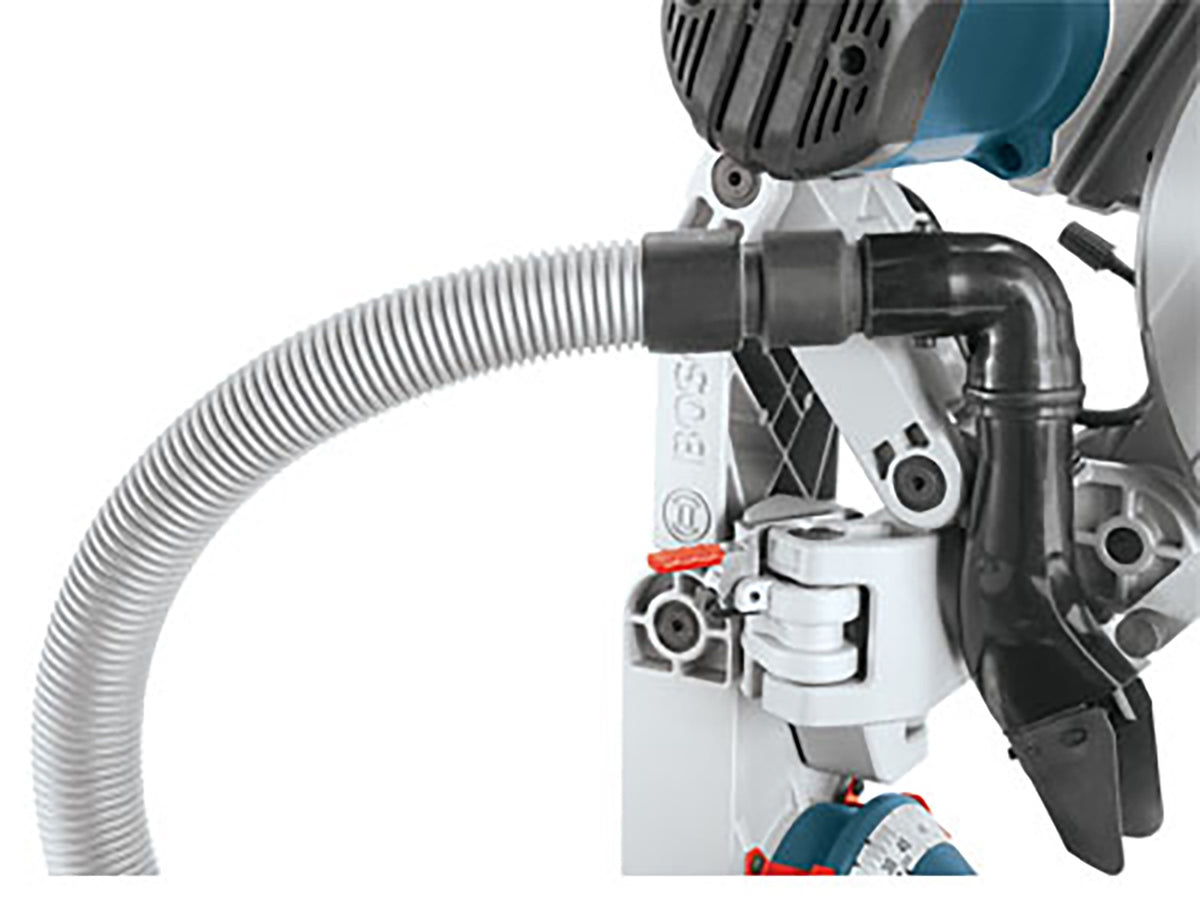

- A soft-grip ambidextrous handle along with a combination dust chute and vacuum adapter add to user comfort
- The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls

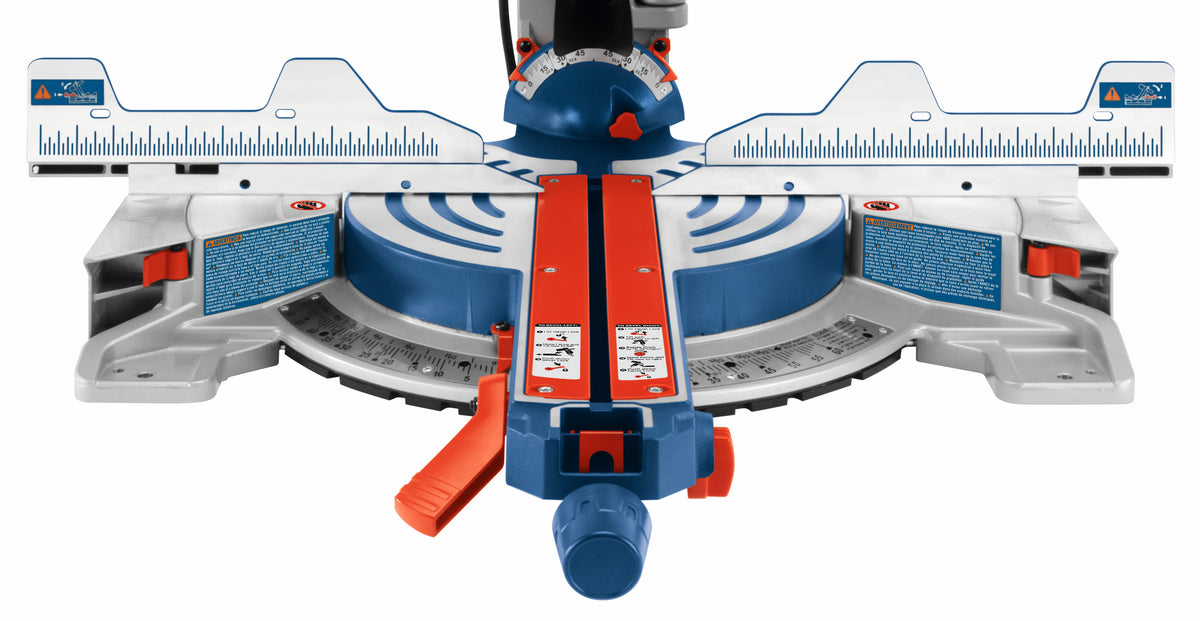

- Integrated expanding base extensions: 60% more left-to-right material support than leading competitor – 40 In. left to right

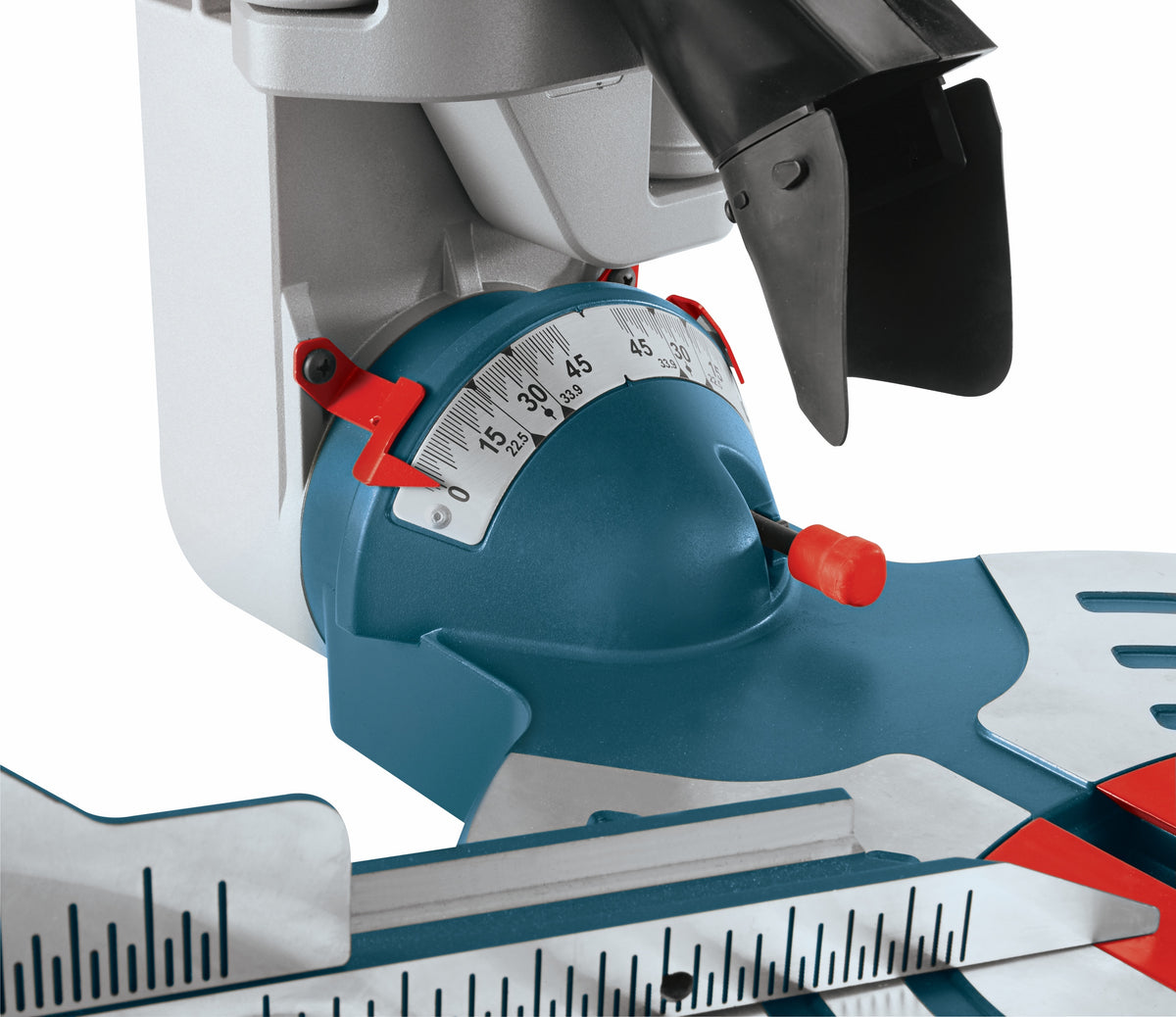

- Large easy-to-read uniform bevel and stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
Specifications
| Arbor Size (in) | 1 |
| Miter Saw Type | Sliding Dual Bevel Compound Miter |
| Saw Blade Diameter (in) | 12 in |
| Bevel Angle Range | 47° left and 47° right |
| Bevel Stops | 0°, 33.9°, 45° and 47° (L/R) |
| Dust Port | Yes |
| Cord Length (ft.) | 6 ft |
| Model | GCM12SD |
| Bosch 10-digit # | 060166501C |
| UPC | 000346393941 |
| Shipping weight | 74 lb |
| Country of origin | China |
Included
Miter Saw, 60 Tooth Blade, Material Clamp, Dust Bag
Shipping: this item ships by freight. Freight is collect: you arrange your own carrier.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model GCM12SD
Need a replacement part for your Bosch? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
