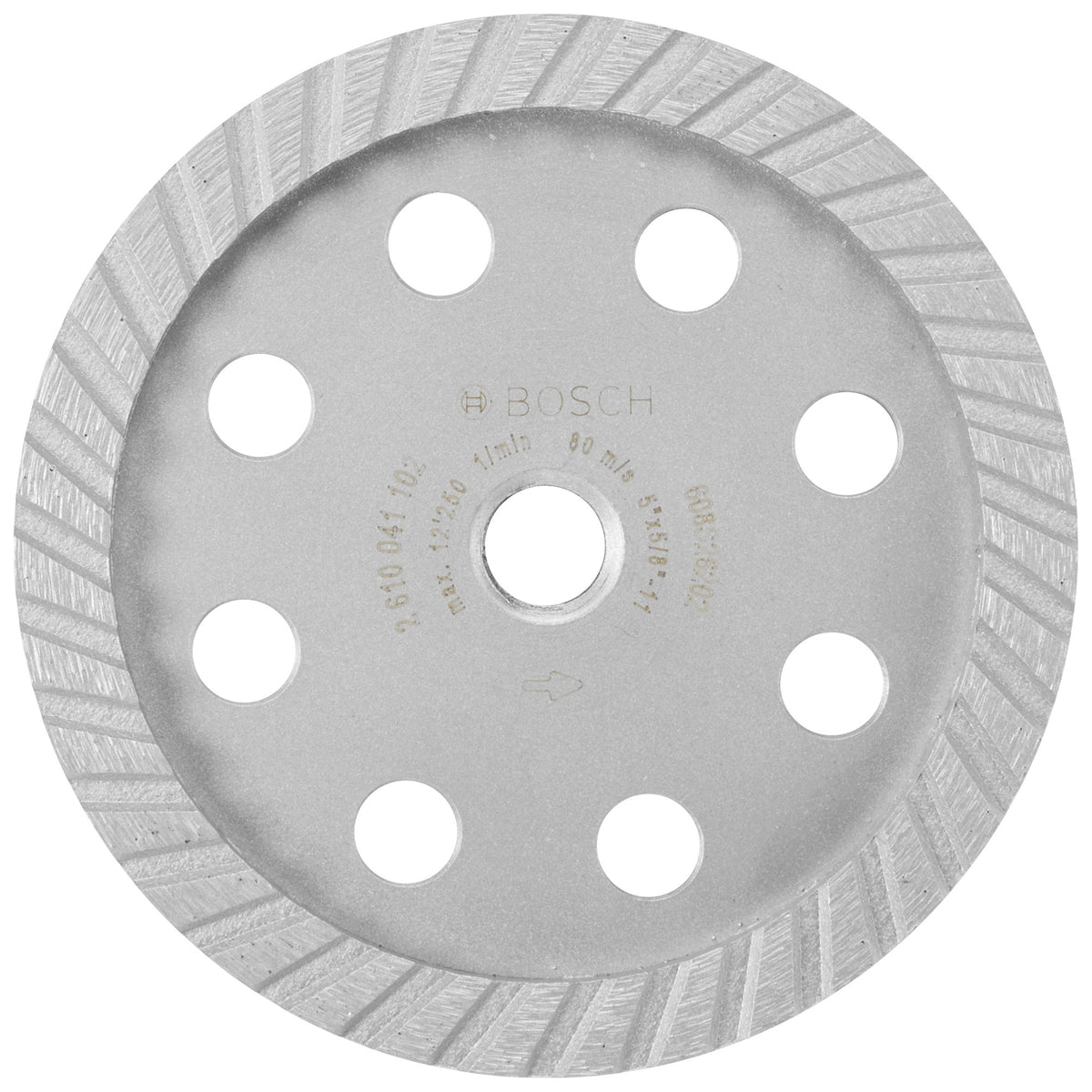

Bosch Turbo Rim Diamond Cup Wheels are engineered for smooth material removal with extended wheel life. Featuring a turbo rim design, these wheels provide a finer finish compared to segmented rim options while still delivering efficient grinding on hard materials like concrete. These cup wheels require a back flange and locking nut for secure attachment to the tool. Built for durability and performance, Bosch turbo rim diamond cup wheels are ideal for flooring surface preparation, waterproofing prep, and leveling uneven surfaces.
Replaces: Bosch DC530SG (discontinued)
Features
- Application materials - intended for grinding or smoothing down hard materials such as concrete
- Precision balanced – designed for less vibration and a smooth final grind for concrete
- Cup wheel design - includes a turbo rim, intended for smoother material removal compared to segmented rim designs
- Common applications – made for use in more visible concrete surfacing applications such as walkways and basements
- Bosch diamond cup wheels – engineered for professional-grade performance, with a portfolio tailored to meet the speed and durability needs of the job
- Installation - standard cup wheels attach to the tool using a back flange and locking nut
Specifications
| 7/8 inch Diamond Arbor Knockout | No |
| Arbor Size (in) | 0.875 |
| Blade Diameter (in) | 5 |
| Blade Thickness (in) | 1.06 |
| Segment Thickness | 0.197" |
| Application | Smooth finish |
| Cutting Depth | 1/4" |
| Contents | 1 Blade |
| Model | DCT0502 |
| Bosch 10-digit # | 2610075170 |
| UPC | 346678024 |
| Shipping weight | 1.23459 lb |
| Country of origin | China |
Included
1 Blade
