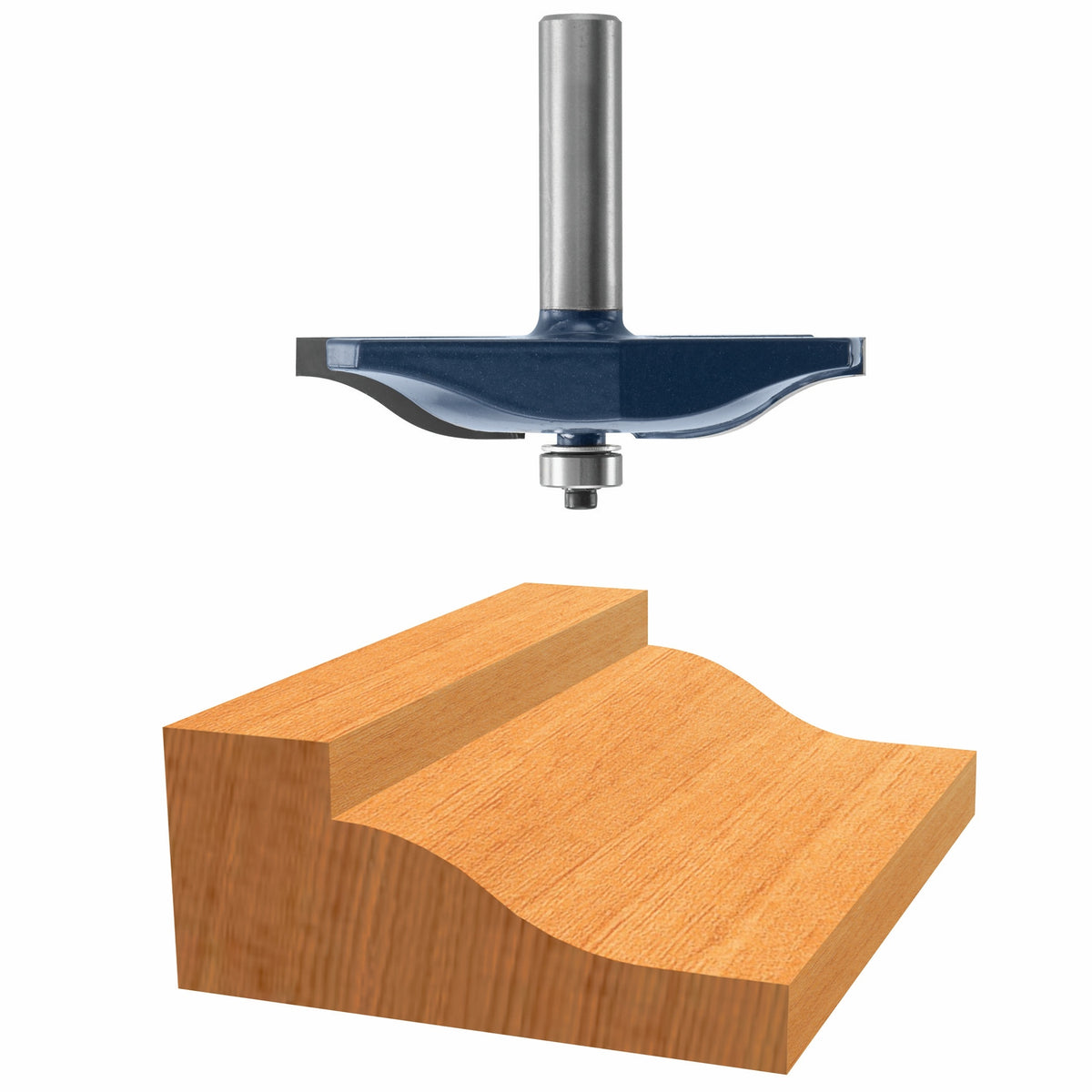

Bosch 85638M 2-1/2 In. x 5/8 In. Carbide Tipped Ogee Raised Panel Bit

Description

Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. This bit is used for making an attractive ogee design in raised panel doors and paneling. The fully hardened and tempered steel shank provides ultimate durability.

Features

• Bit cuts straight or curved panel inserts for raised panel doors used with 85625MC to cut matching stiles and rails
• Control cut design helps minimize kickback
• Micrograin carbide tips provide superior wear resistance and long life
• For use with a router table only
• Compact ball-bearing pilot guides bit along edge of material

Specifications

Cabinet Router Bit Type	Raised Panel
Bearing Included	Yes
Bit Material	Carbide Tipped
Cut Diameter (in)	2.625
Cutting Edge Length (In)	0.625
Number of Flutes	1
Shank Diameter	1/2 in
Shank Length (in)	1.875
Overall Length in	2.5
Set / Individual	Individual
Model	85638M
Bosch 10-digit #	2608629234
UPC	346051216
Shipping weight	0.57 lb
Country of origin	Taiwan

Included

1 Bit

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
