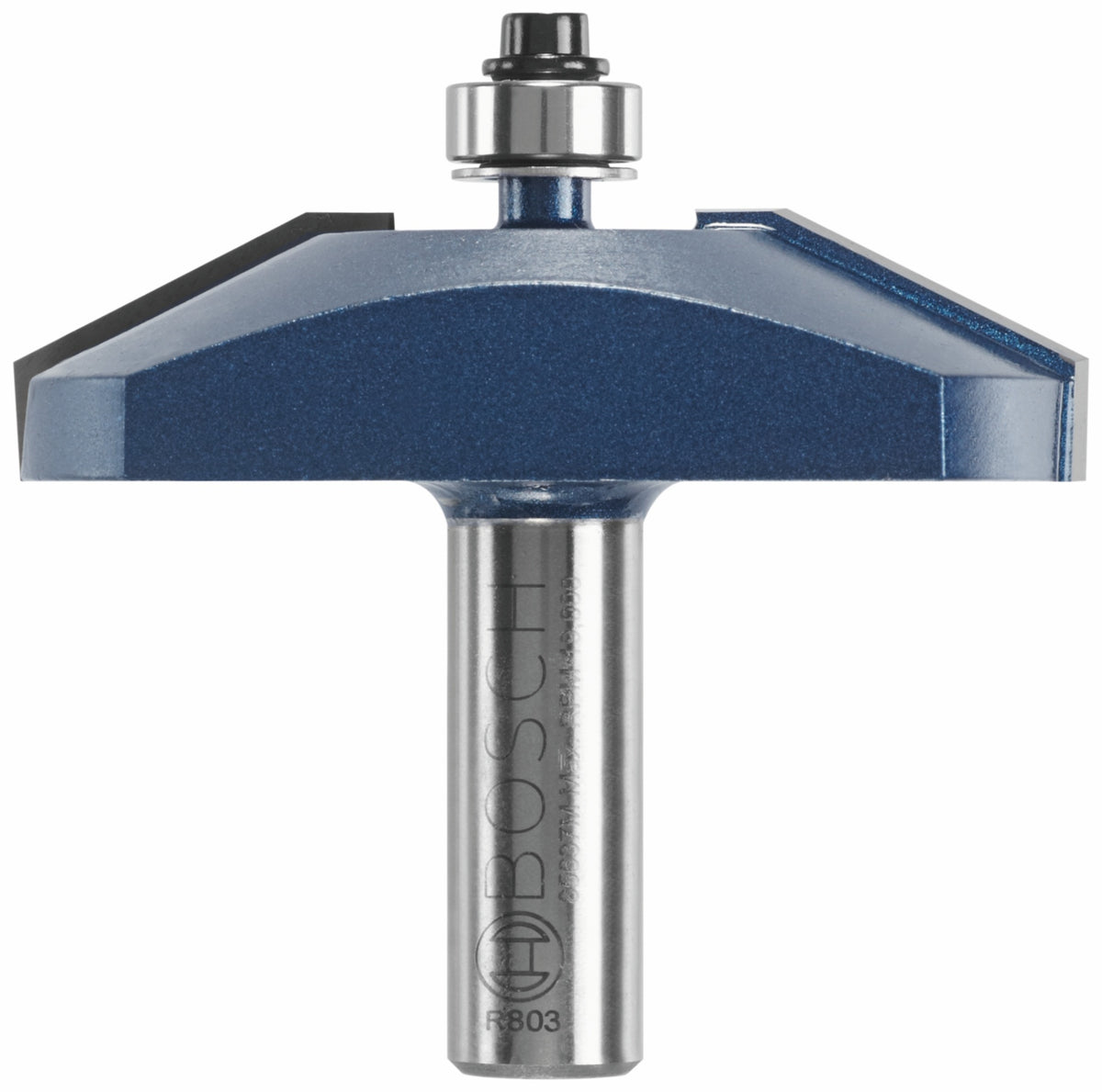

Bosch 85637MC 2-3/4 In. x 5/8 In. Carbide-Tipped Traditional Raised Panel Router Bit
Bosch Carbide-Tipped Router Bits deliver precision and durability. They feature premium-quality micrograin carbide tips that are engineered with a special heat-treating process for an extra-fine finish. The tips provide maximum sharpness and edge retention. The fully hardened and tempered steel shanks provide ultimate durability. These bits retain painstaking accuracy across hundreds of profiles for mortising, edge forming, trimming, surface forming, and cabinetry/joinery in wood, plastic and laminate.
Features
- Micrograin carbide-tip router bit design โ ensures consistently smooth finish cuts, with superior wear resistance
- Shear-angle design โ provides faster routing, cleaner cuts and extended life
- Designed for raised panel work โ used to make attractive traditional design in raised panel doors and paneling
- Reinforced shanks โ feature fully hardened and tempered steel shanks that provide ultimate durability
- Upgraded micrograin carbide โ engineered for precise cuts and for long bit life
- Bosch-exclusive heat-treating process โ provides hardness and withstands high temperatures
Specifications
| Cabinet Router Bit Type | Raised Panel |
| Bearing Included | Yes |
| Bit Material | Carbide Tipped |
| Cut Diameter (in) | 2.75 |
| Cutting Edge Length (In) | 0.625 |
| Number of Flutes | 2 |
| Shank Diameter | 1/2 in |
| Shank Length (in) | 1.5 |
| Overall Length in | 2.531 |
| Set / Individual | Individual |
| Model | 85637MC |
| Bosch 10-digit # | 2610048214 |
| UPC | 346625493 |
| Shipping weight | 0.98 lb |
| Country of origin | Taiwan |
Included
1 Bit
