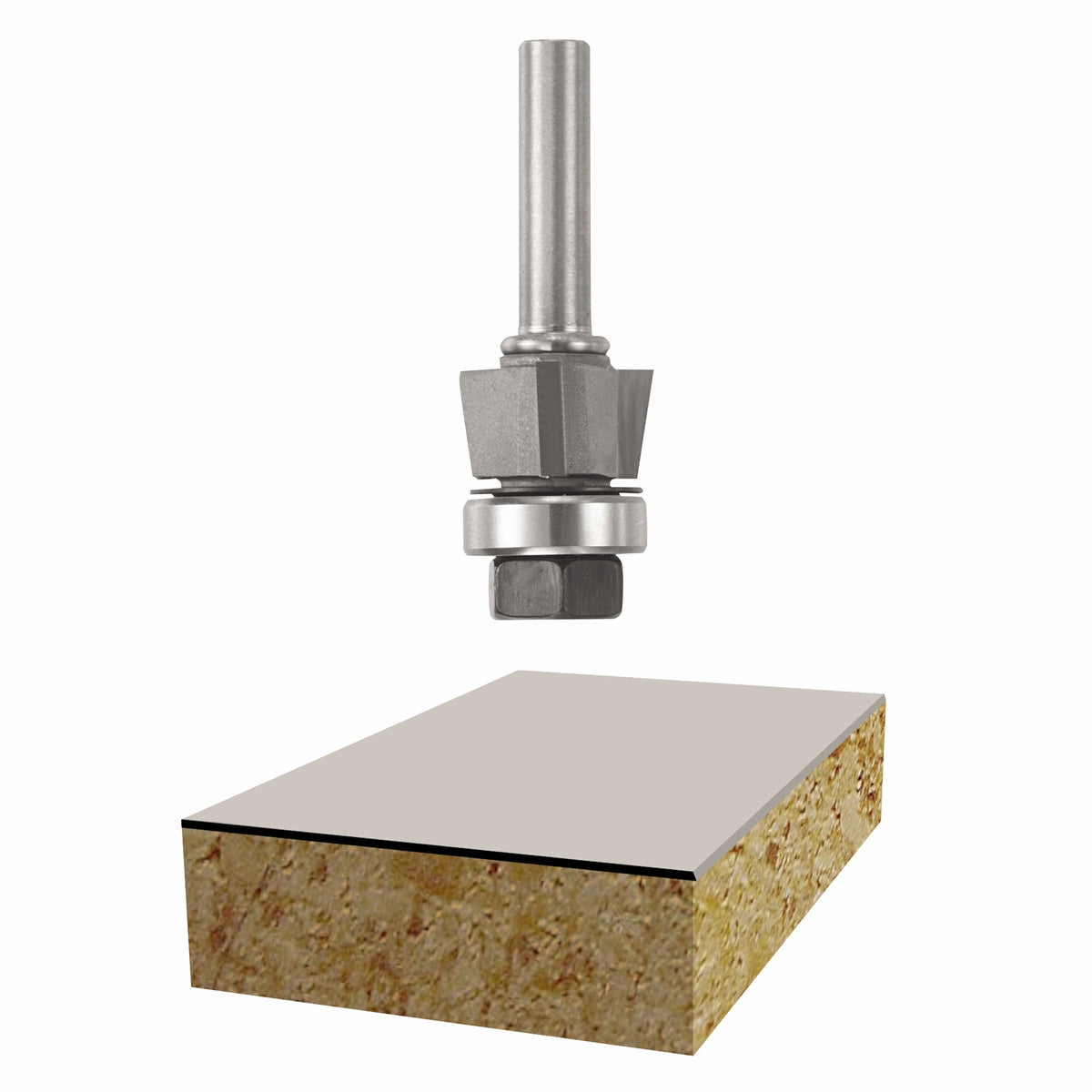

Bosch 85422M 9° x 3/8 In. Carbide Tipped 3-Flute Bevel Trim Assembly Bit
Regular price
$48.99 CAD
Model / Part #85422M
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days. Once stock runs out, it can still be special ordered with 1–2 week delivery.
Flat rate shipping $21.95Anywhere in Canada · Shipping details

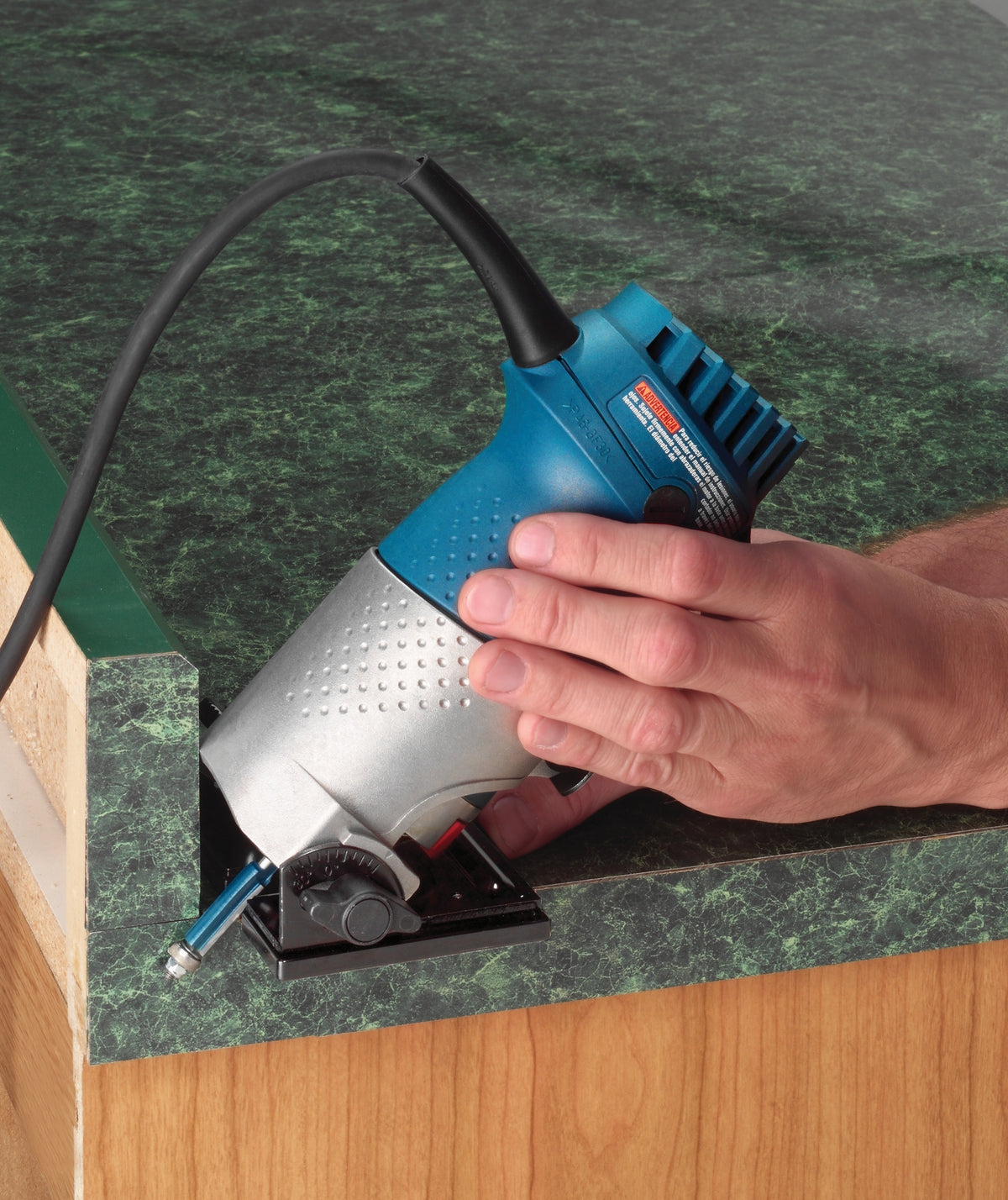

Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. Bevel trim bits are used to create a bevel on the trim edge of the laminate surface. Triple flute trim bit gives an extra smooth finish. The fully hardened and tempered steel shank provides ultimate durability.
Features
- Triple flute design for exceptional smoothness and finish quality
- Micrograin carbide tips provide superior wear resistance and long life
- For trimming laminates, veneers, and similar materials
- Includes an arbor, replaceable 3-wing cutter, and ball bearing
- Shielded, compact ball-bearing pilot guides bit along edge of material
Specifications
| Laminate & Trim Router Bit Type | Flush & Bevel |
| Bit Material | Carbide Tipped |
| Cut Diameter (in) | 0.75 |
| Number of Flutes | 3 |
| Router Bit Angle | 9° |
| Shank Diameter | 1/4 in |
| Shank Length (in) | 1.5625 |
| Overall Length in | 1.9375 |
| Set / Individual | Individual |
| Model | 85422M |
| Bosch 10-digit # | 2608629175 |
| UPC | 346050134 |
| Shipping weight | 0.1 lb |
| Country of origin | Taiwan |
Included
1 Bit
