Bosch 85246M 1/2 In. x 1-3/16 In. Carbide Tipped 1-Flute Pilot Panel Concave Bit

Description

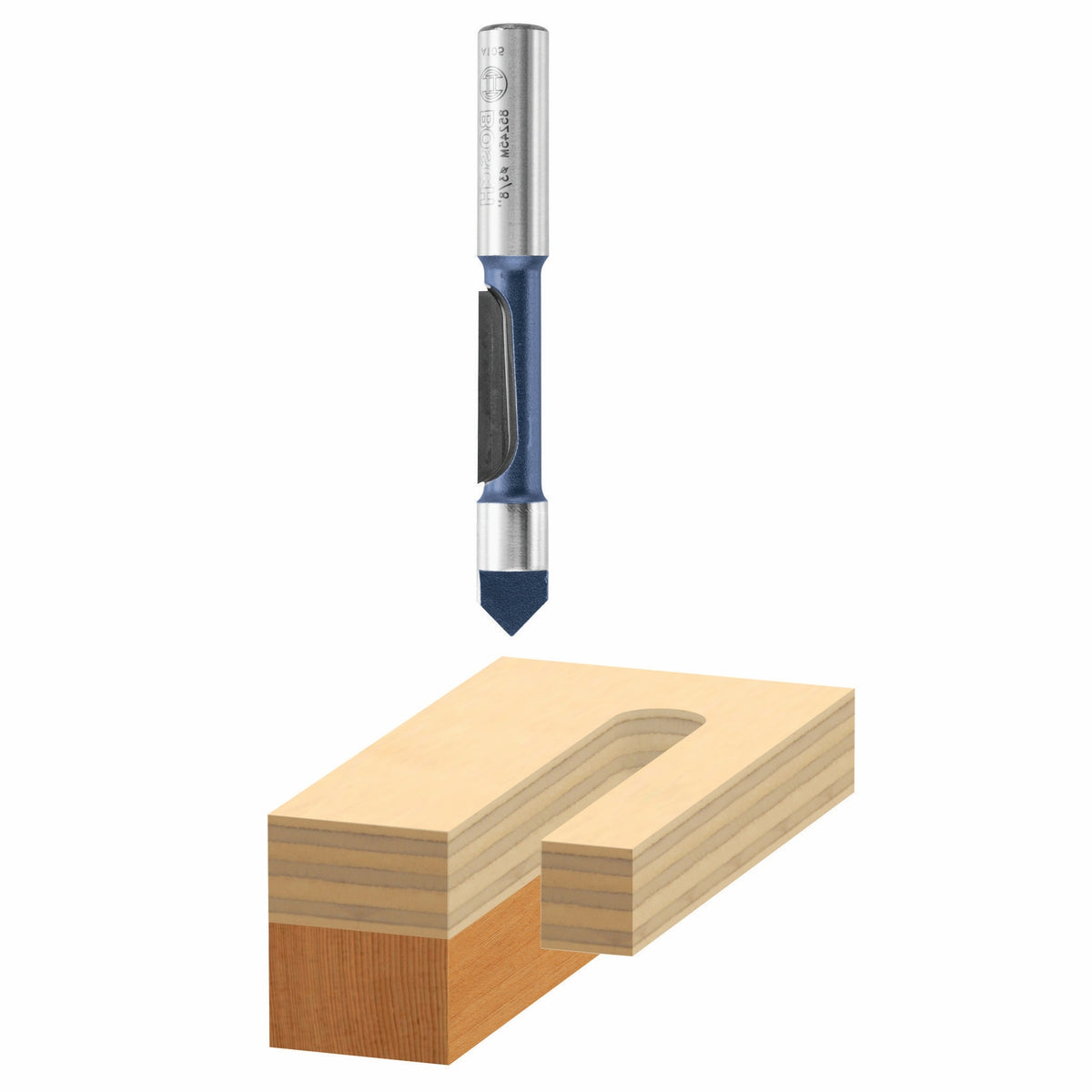

Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. Pilot panel bit has a drill-through point that plunges through the material, and is used for window and door cutouts in abrasive insulation materials, plywood, and paneling. The fully hardened and tempered steel shank provides ultimate durability.

Features

• Single flute allows for faster feed rates
• For window and door cutouts in abrasive insulation materials, plywood, and paneling
• Drill-through pilot for guiding on templet or framing after panel has been mounted
• Concave grind offers a faster cut
• Micrograin carbide tip provides superior wear resistance and long life

Specifications

Laminate & Trim Router Bit Type	Pilot Panel
Bit Material	Carbide Tipped
Cut Diameter (in)	0.5
Number of Flutes	1
Router Bit Angle	0
Shank Diameter	1/2 in
Shank Length (in)	2.43
Overall Length in	3.625
Set / Individual	Individual
Model	85246M
Bosch 10-digit #	2608681076
UPC	346049541
Shipping weight	0.18 lb
Country of origin	Taiwan

Included

1 Bit
