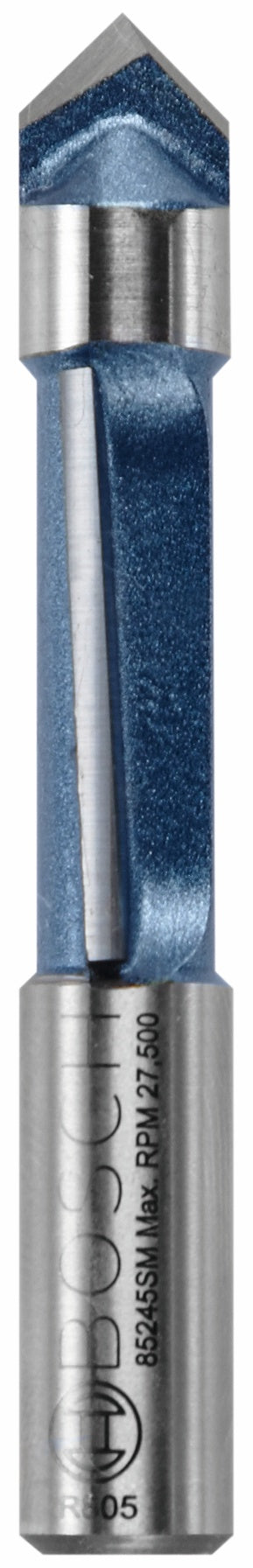

Bosch 85245SMC 3/8 In. x 1 In. Carbide-Tipped Single-Flute Shear Angle Pilot Panel Router Bit
Bosch Carbide-Tipped Router Bits deliver precision and durability. They feature premium-quality micrograin carbide tips that are engineered with a special heat-treating process for an extra-fine finish. The tips provide maximum sharpness and edge retention. The fully hardened and tempered steel shanks provide ultimate durability. These bits retain painstaking accuracy across hundreds of profiles for mortising, edge forming, trimming, surface forming, and cabinetry/joinery in wood, plastic and laminate.
Features
- Micrograin carbide-tip router bit design โ ensures consistently smooth finish cuts, with superior wear resistance
- Shear-angle design โ provides faster routing, cleaner cuts and extended life

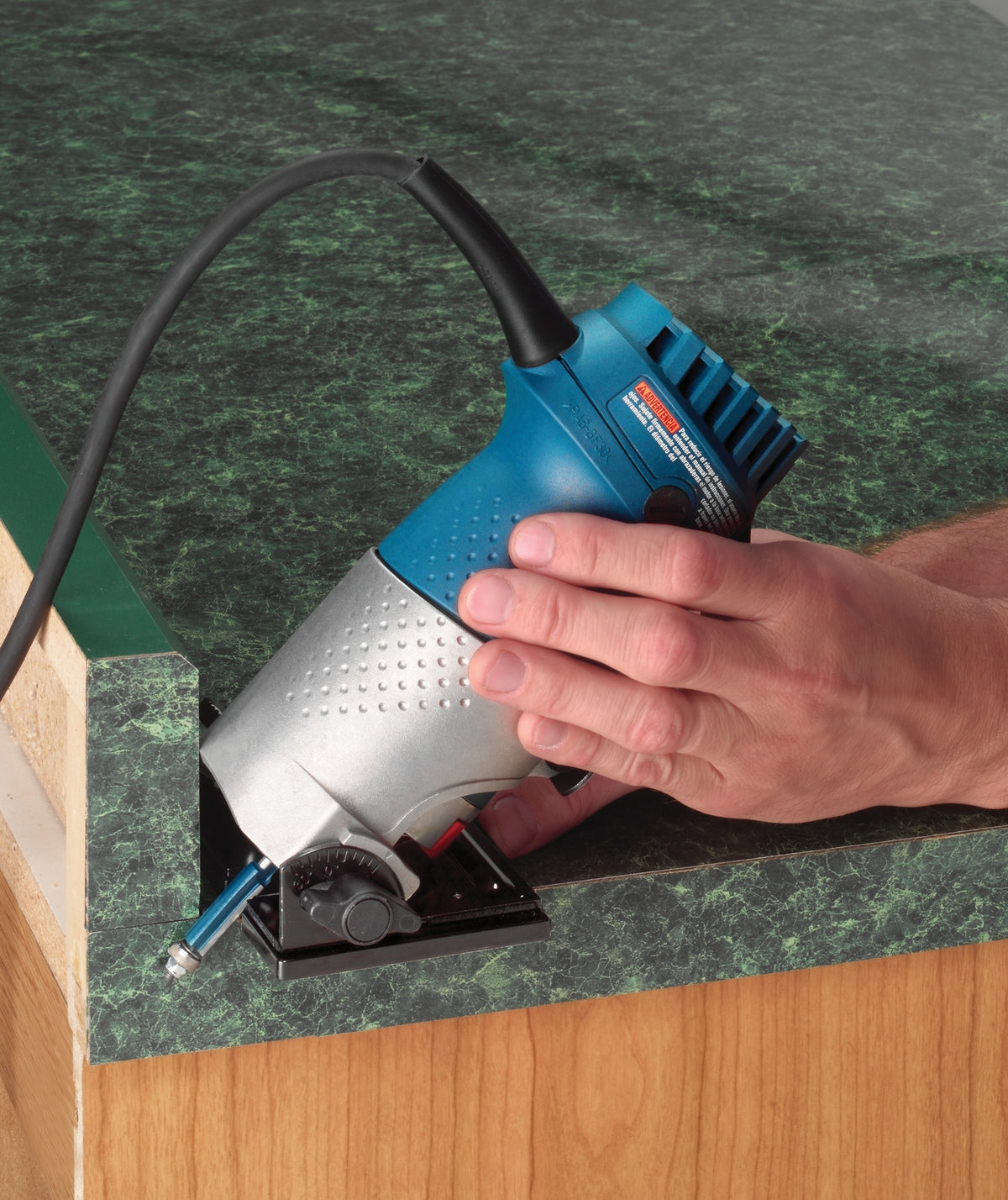

- Designed for window and door cutouts in paneling โ features drill-though pilot for guiding on template or framing after panel has been mounted
- Reinforced shanks โ feature fully hardened and tempered steel shanks that provide ultimate durability
- Upgraded micrograin carbide โ engineered for precise cuts and for long bit life
- Bosch-exclusive heat-treating process โ provides hardness and withstands high temperatures
Specifications
| Laminate & Trim Router Bit Type | Pilot Panel |
| Bit Material | Carbide Tipped |
| Cut Diameter (in) | 0.375 |
| Number of Flutes | 1 |
| Router Bit Angle | 0 |
| Shank Diameter | 3/8 in |
| Shank Length (in) | 2 |
| Overall Length in | 2.625 |
| Set / Individual | Individual |
| Model | 85245SMC |
| Bosch 10-digit # | 2610049482 |
| UPC | 346625516 |
| Shipping weight | 0.21 lb |
| Country of origin | Taiwan |
Included
(1) 3/8 In. x 1 In. Carbide-Tipped Single-Flute Shear Angle Pilot Panel Router Bit
