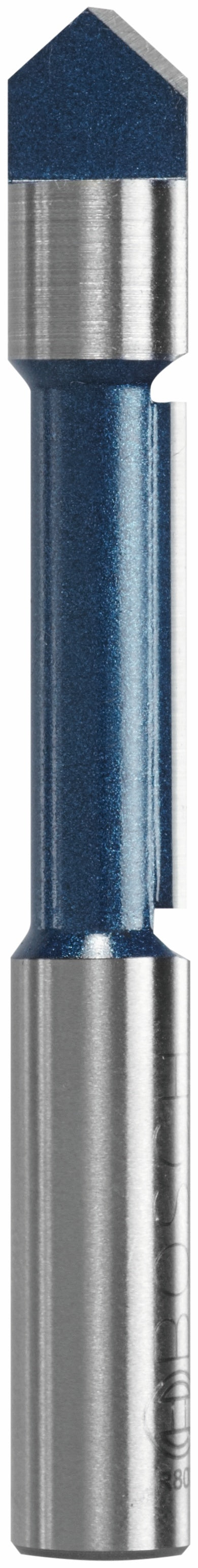

Bosch 85245MC 3/8 In. x 1 In. Carbide-Tipped Single-Flute Pilot Panel Concave Router Bit
Bosch Carbide-Tipped Router Bits deliver precision and durability. They feature premium-quality micrograin carbide tips that are engineered with a special heat-treating process for an extra-fine finish. The tips provide maximum sharpness and edge retention. The fully hardened and tempered steel shanks provide ultimate durability. These bits retain painstaking accuracy across hundreds of profiles for mortising, edge forming, trimming, surface forming, and cabinetry/joinery in wood, plastic and laminate.
Features
- Micrograin carbide-tip router bit design โ ensures consistently smooth finish cuts, with superior wear resistance
- Drill-through point โ plunges through material, for window and door cutouts in abrasive insulation materials, plywood and paneling
- Single flute โ allows for faster feed rates, with concave grind for a faster cut
- Drill-through pilot โ for guiding on templet or framing after panel has been mounted
- Reinforced shanks โ feature fully hardened and tempered steel shanks that provide ultimate durability
- Upgraded micrograin carbide โ engineered for precise cuts and for long bit life
Specifications
| Laminate & Trim Router Bit Type | Pilot Panel |
| Bit Material | Carbide Tipped |
| Cut Diameter (in) | 0.375 |
| Number of Flutes | 1 |
| Router Bit Angle | None |
| Shank Diameter | 3/8 in |
| Shank Length (in) | 1 |
| Overall Length in | 3.156 |
| Set / Individual | Individual |
| Model | 85245MC |
| Bosch 10-digit # | 2610048207 |
| UPC | 346625455 |
| Shipping weight | 0.21 lb |
| Country of origin | Taiwan |
Included
1 Bit
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
