Model / Part #85217M
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days. Once stock runs out, it can still be special ordered with 1–2 week delivery.
Flat rate shipping $21.95Anywhere in Canada · Shipping details

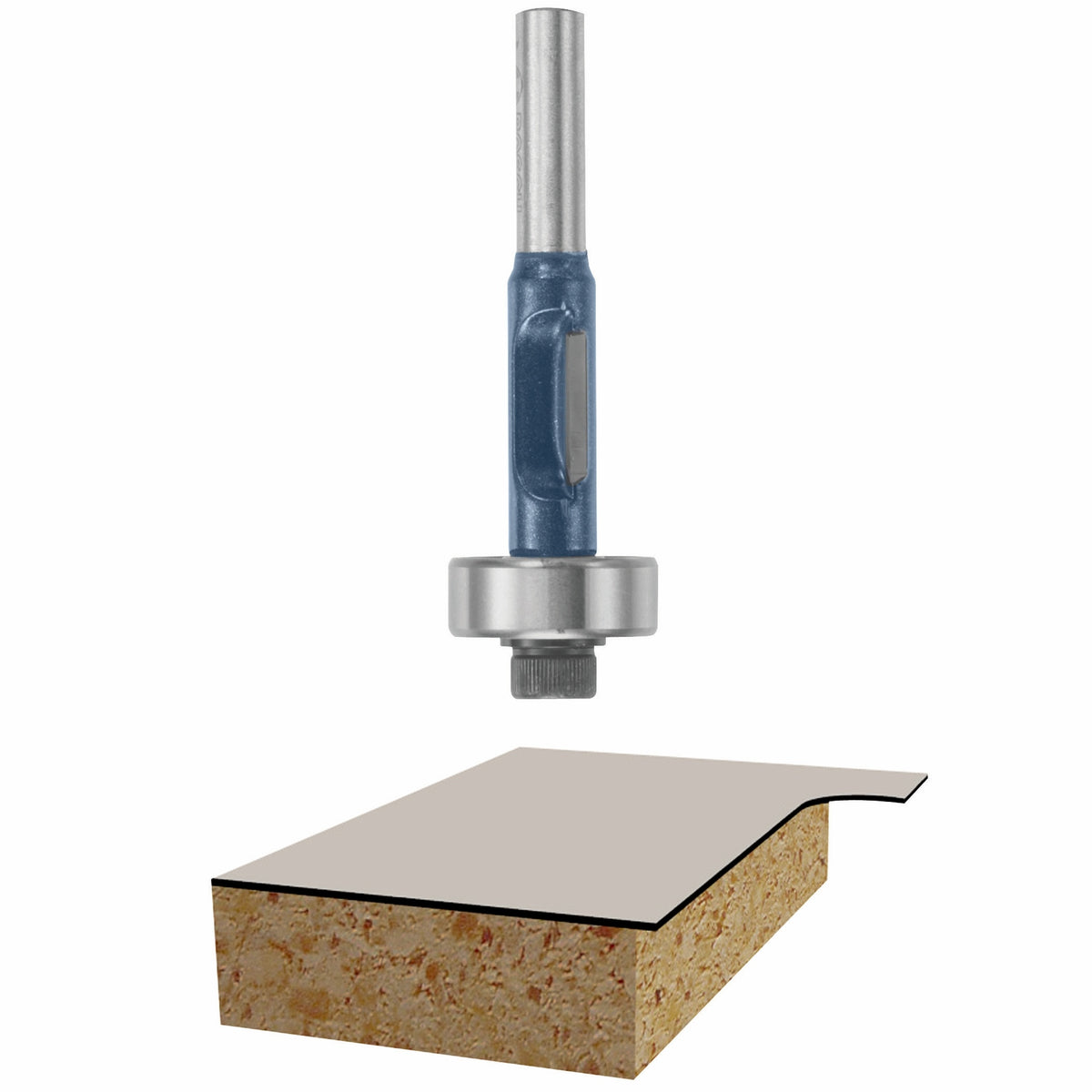

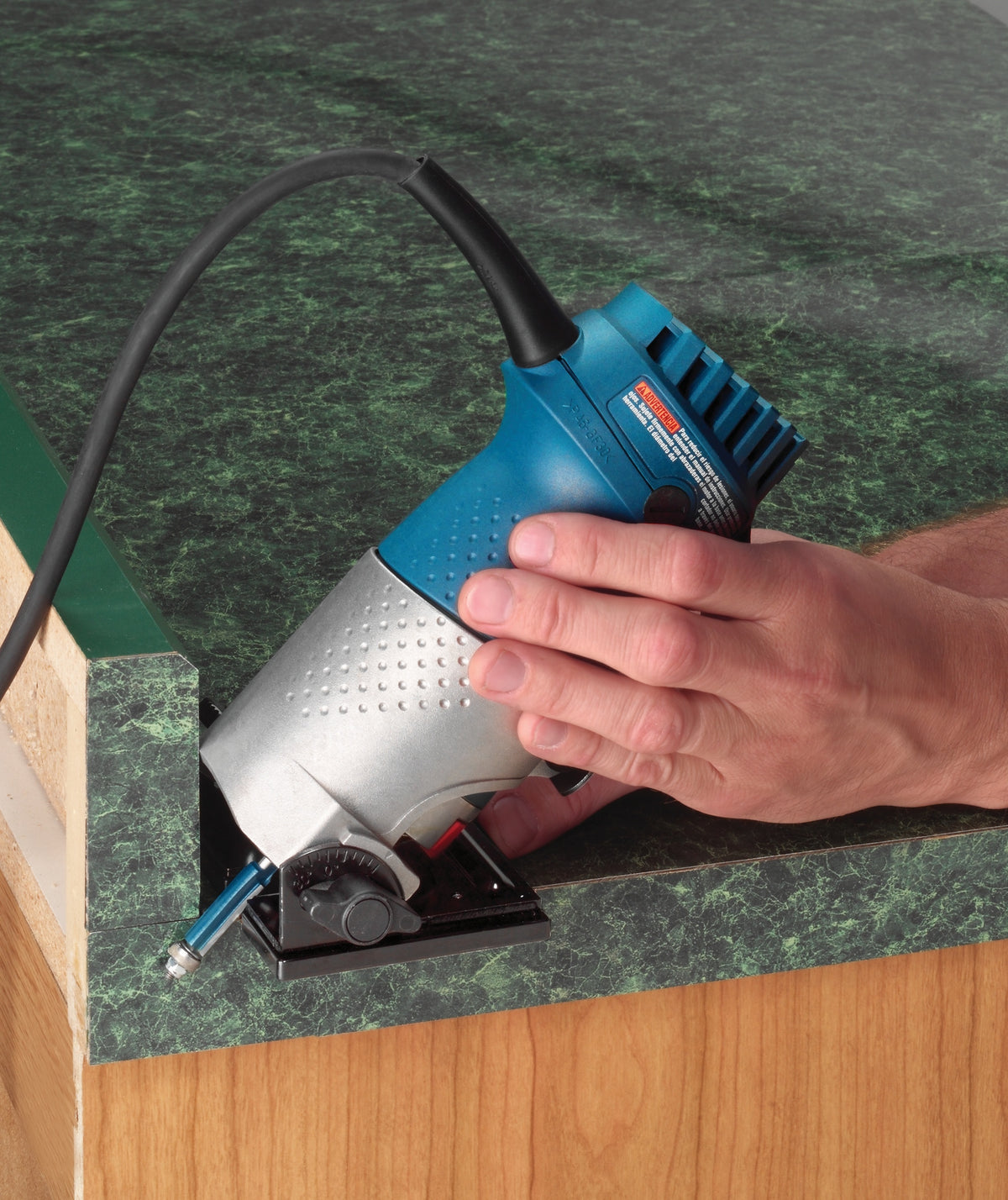

Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. Overhang bit is used for preliminary laminate trimming, leaving a small overhang. The fully hardened and tempered steel shank provides ultimate durability.
Features
- Single flute design allows for a faster feed rate
- For rough sizing of plastic laminates, prior to gluing, without scribing or sawing
- Micrograin carbide tips provide superior wear resistance and long life
- Bit leaves 3/16 In. overhang
- Ideal for tops with irregular shapes
- Shielded, compact ball-bearing pilot guides bit along edge of material
Specifications
| Laminate & Trim Router Bit Type | Specialty |
| Bit Material | Carbide Tipped |
| Cut Diameter (in) | 0.34375 |
| Number of Flutes | 1 |
| Router Bit Angle | 0 |
| Shank Diameter | 1/4 in |
| Shank Length (in) | 1.796 |
| Overall Length in | 2.296875 |
| Set / Individual | Individual |
| Model | 85217M |
| Bosch 10-digit # | 2608629198 |
| UPC | 346049237 |
| Shipping weight | 0.09 lb |
| Country of origin | Taiwan |
Included
1 Bit
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
