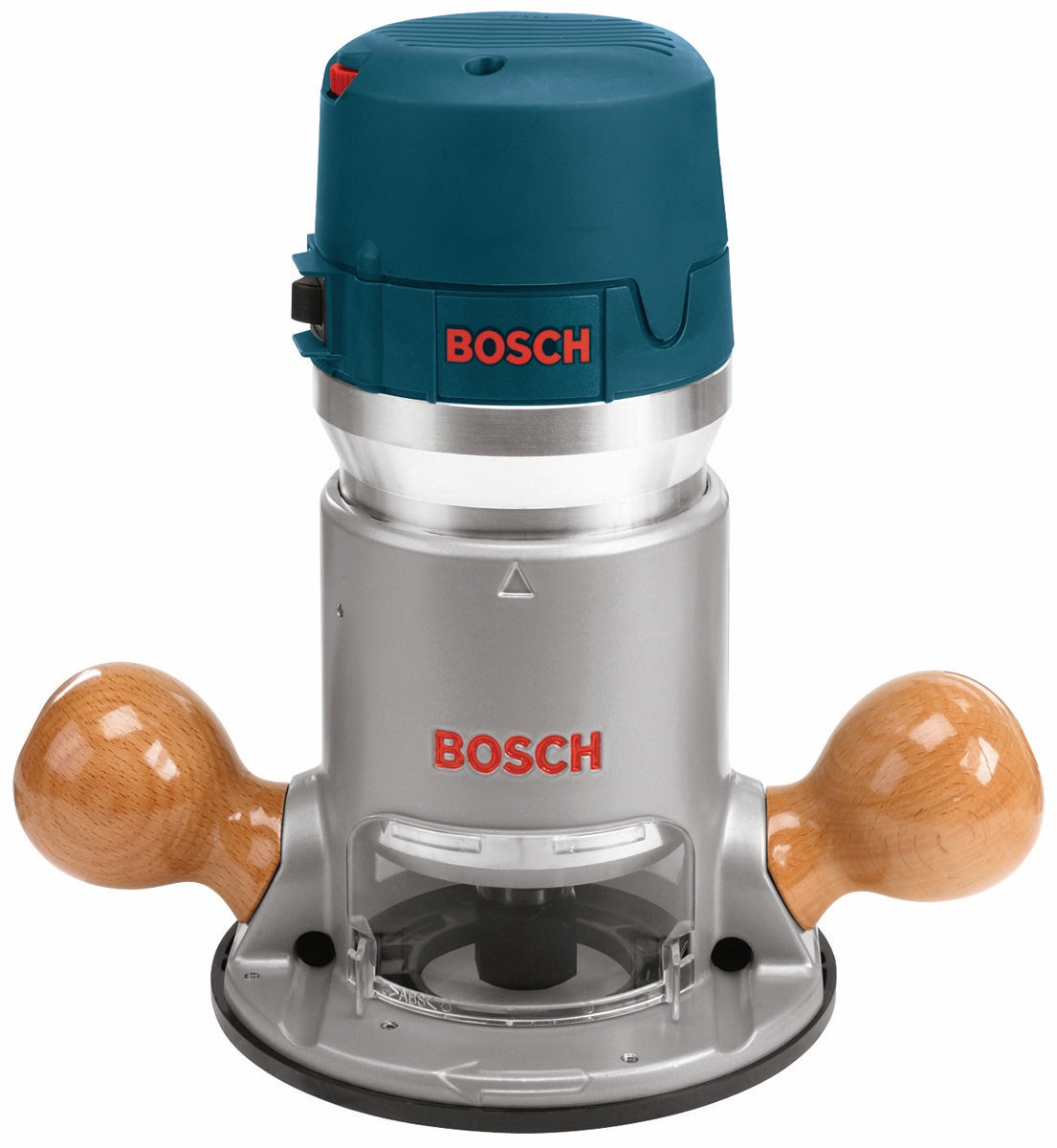

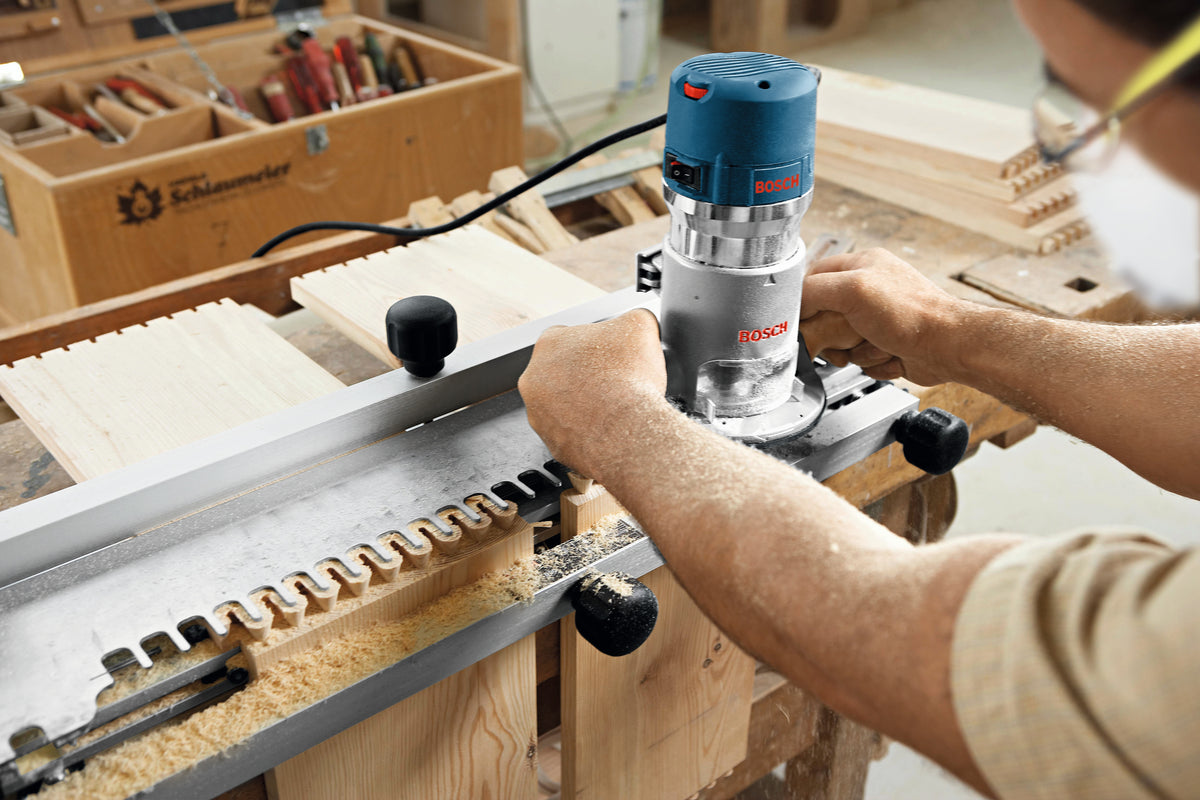

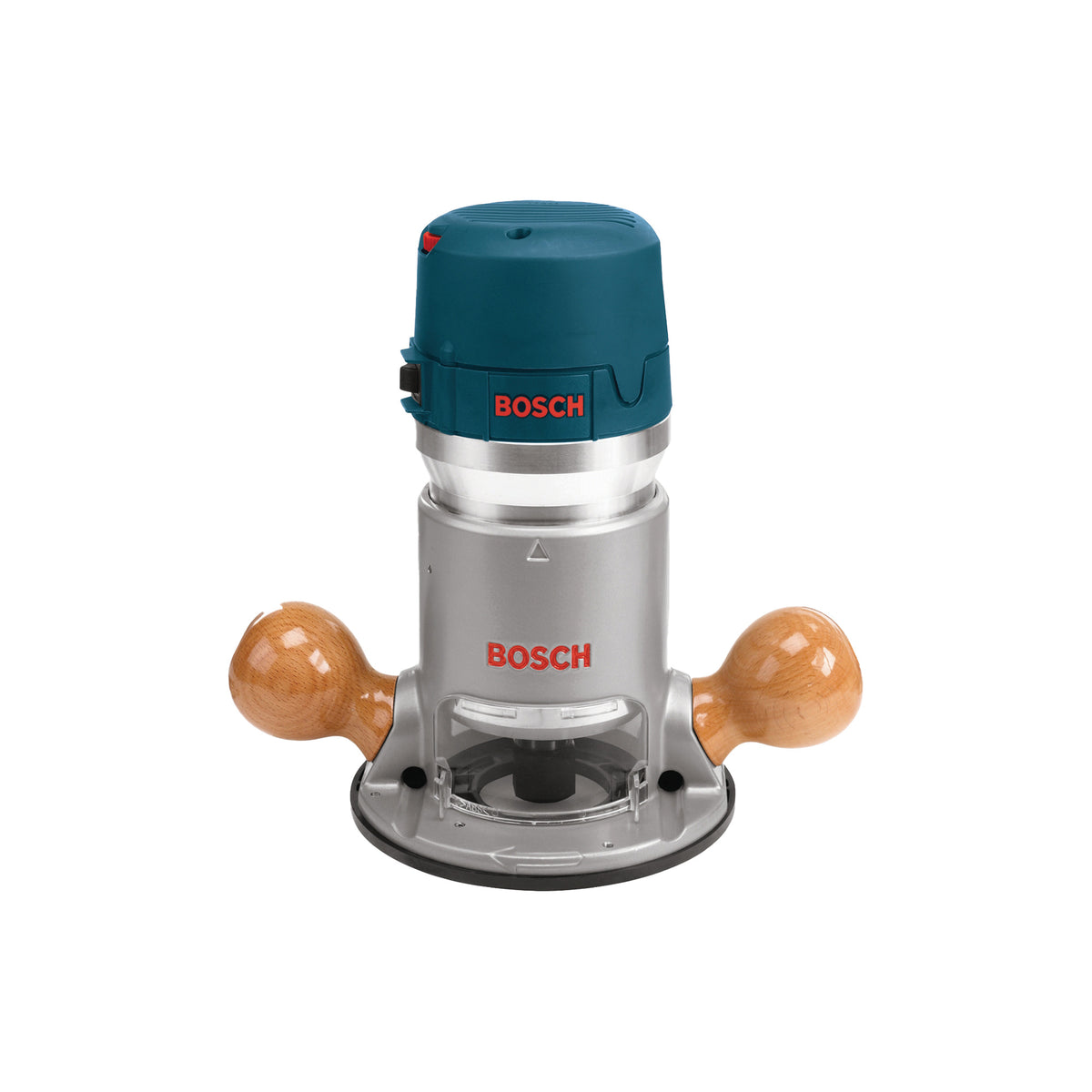

The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.
Features
- 12 Amp router motor โ combines ample power with adjustable speed settings, allowing users to glide along cutlines
- Constant Response circuitry stabilizes start-up torque
- Adjustable speed dial (8000-25,000 RPM)

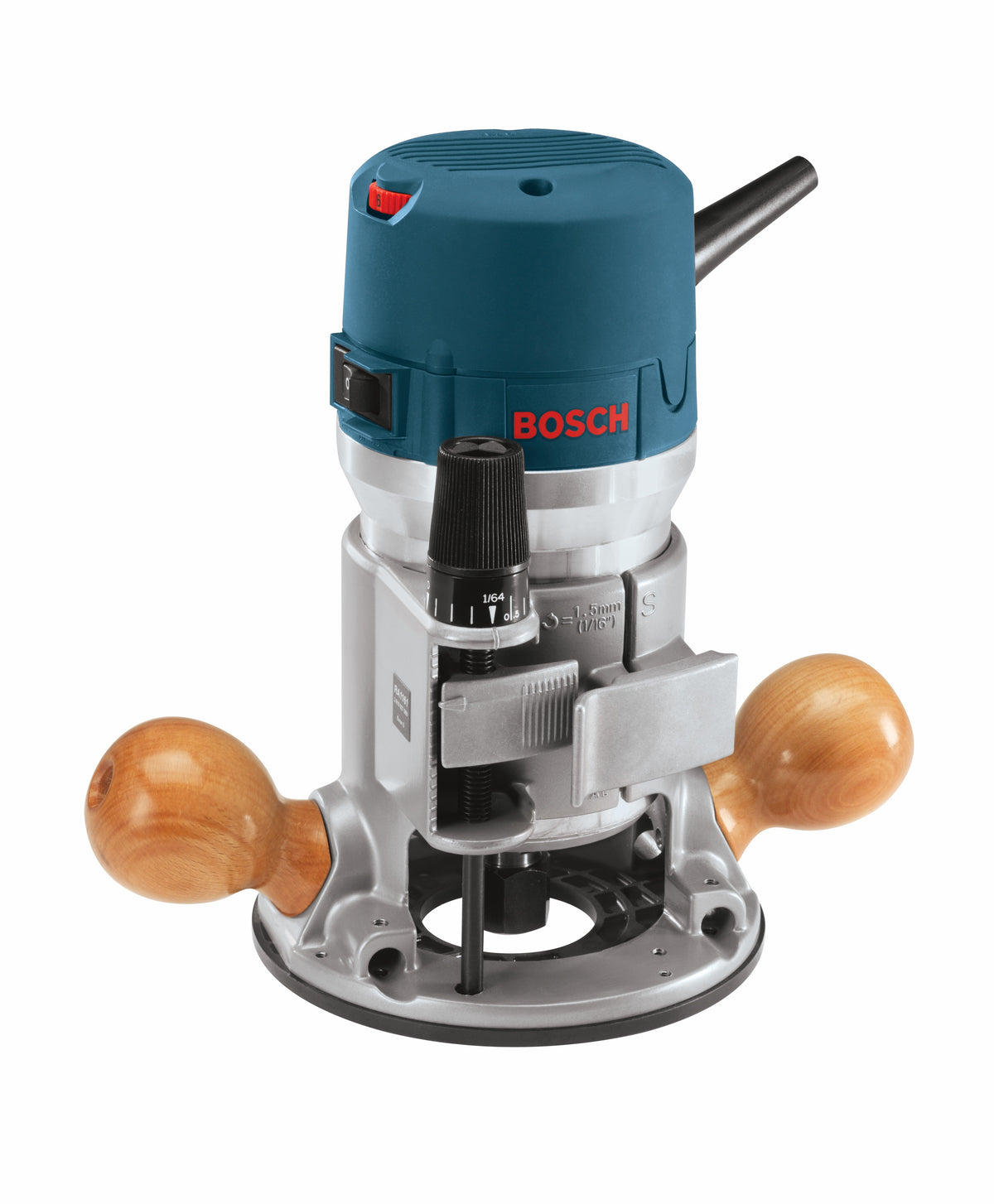

- Microfine bit-depth adjustment
- Rounded hardwood handles maximize user control
- Right or left switch location โ for user preference and consistency (motor does not rotate during depth adjustment)
Specifications
| Amperage | 12 |
| Cord Length (in) | 120 |
| Base Diameter | 6" |
| Primary Collet Size | 1/2 Inch |
| Depth Adjustment | Yes |
| Electronic Speed Control | Yes |
| Router Base Type | Fixed |
| Variable Speed | Yes |
| Horsepower | 2.25 |
| Product Storage Included | No Case Included |
| Model | 1617EVS |
| Bosch 10-digit # | 0601617763 |
| UPC | 000346304732 |
| Shipping weight | 11.27 lb |
| Country of origin | Mexico |
Included

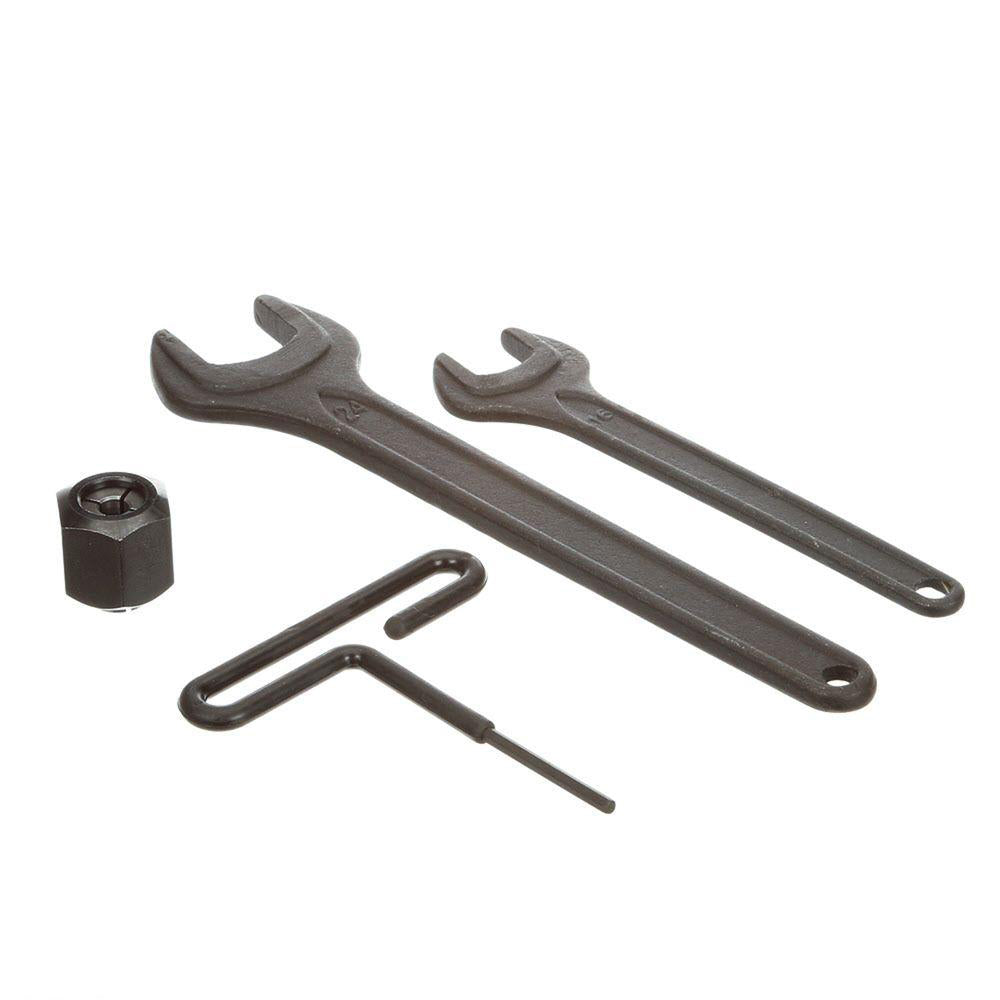

Router, 1/4 In., and 1/2 In. Self Releasing Collet Chucks, 16 mm Shaft Wrench, 24 mm Collet Nut Wrench
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 1617EVS
Need a replacement part for your Bosch? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
